Toyota Land Cruiser Van

1980-08 → 1987-08 · chassis BJ6#,FJ6#,HJ6# · catalogue 791120 · Japan

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

16 part groups · 4 illustrations

Illustrations

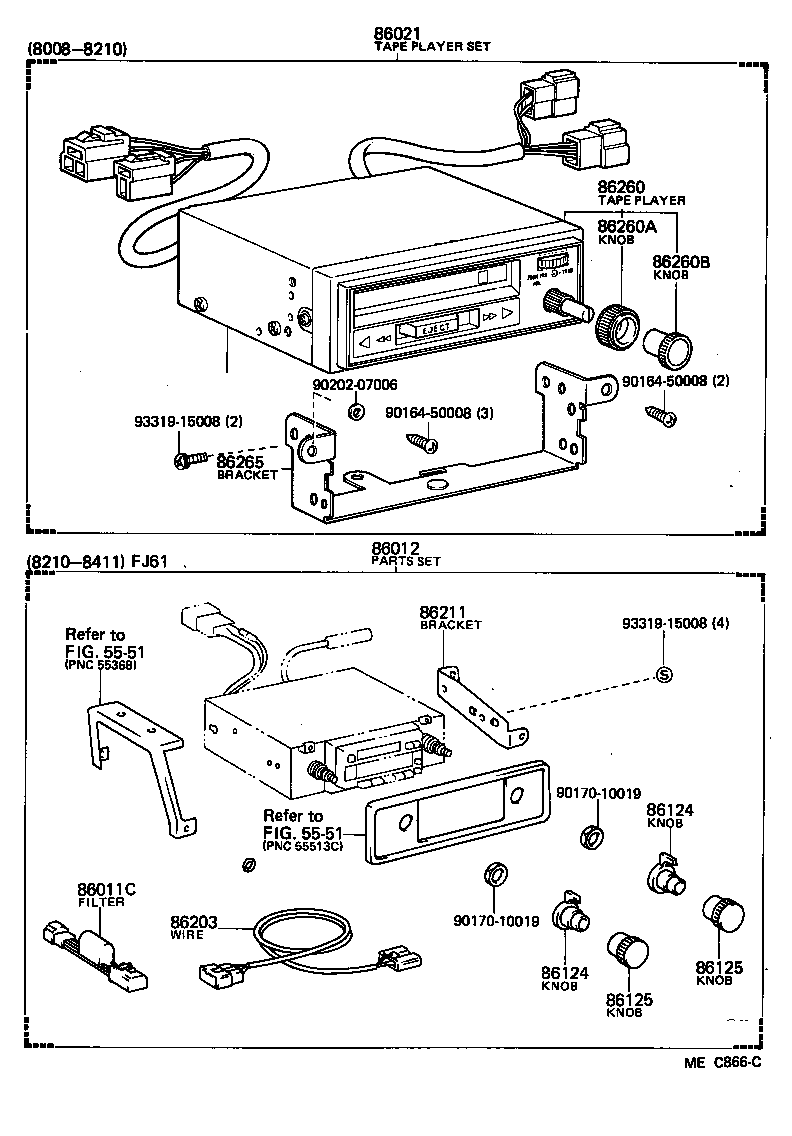

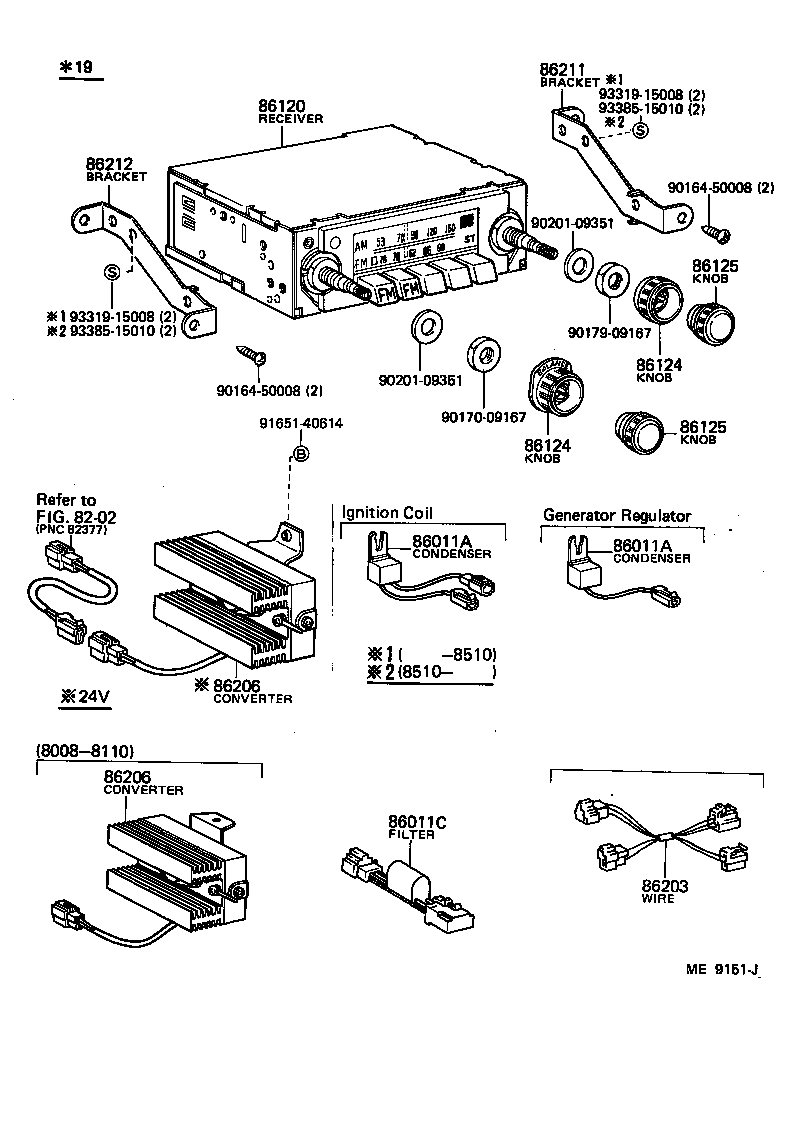

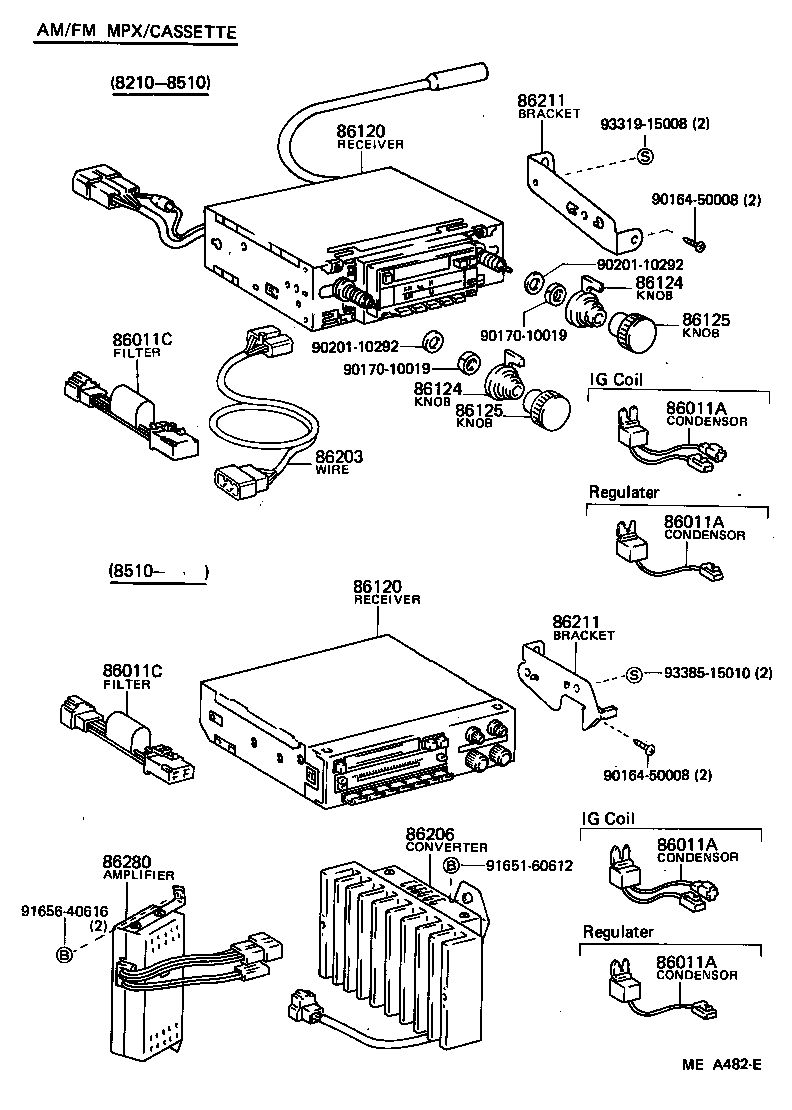

Figure ME9009I ME9009I 1980-08 → — Figure ME9151J ME9151J 1980-08 → — Figure MEA482E MEA482E 1982-10 → — Figure MEC866C MEC866C 1980-08 → 1984-11

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86012 Parts Set, Radio Setting
86021 Tape Player And Setting Parts Set
86120 Receiver Assy, Radio
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86203 Wire, Radio
86206 Converter Sub-assy, Voltage
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86260A Knob, Tape Player Volume
86260B Knob, Tape Player Tone
86265 Bracket, Tape Player, NO.1
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
