Toyota Land Cruiser Van
1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan
Discontinued model
Data version 1990-06

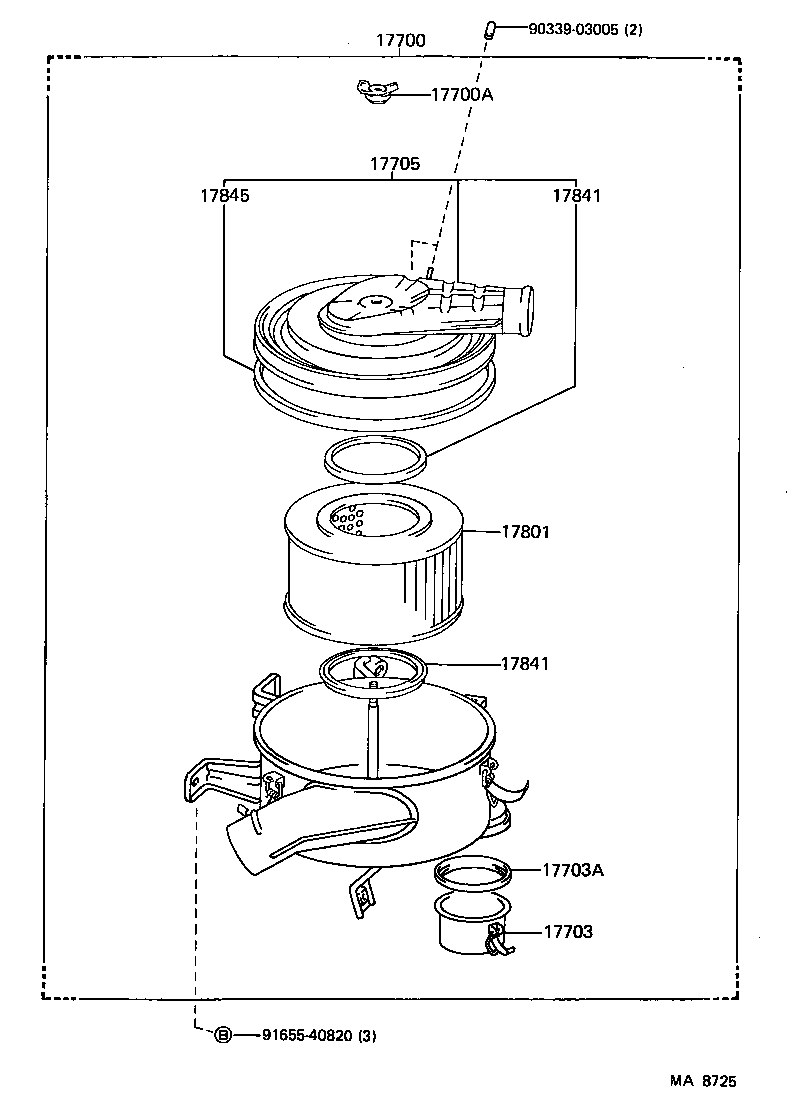

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-61230 |
Cleaner Assy, Air
1988-08 → 1990-01
ended
|
3FE FJ62 | ¥25,100 | |
| 17700-68140 |
Cleaner Assy, Air
1987-08 → 1990-01
ended
|
3F FJ62 | ¥27,400 | |
| 17700-68180 |
Cleaner Assy, Air
1987-08 → 1990-01
ended
|
12HT HJ61 | ¥31,800 | |
| 17700-68270 |
Cleaner Assy, Air
1987-08 → 1990-01
ended
|
2H HJ60 | ¥31,800 | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1987-08 → 1990-01
ended
|
3F# FJ62 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1987-08 → 1990-01
ended
|
12HT,2H HJ6# | — | |
| 17703 — Case Sub-assy, Bottom Air Cleaner Filter | ||||
| 17703-68010 |
Case Sub-assy, Bottom Air Cleaner Filter
1987-08 → 1990-01
ended
|
12HT,2H HJ6# | — | |
| 17703A — Gasket(FOR BOTTOM AIR CLEANER FILTER CASE) | ||||
| 17845-68030 |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1989-08 → 1990-01
ended
|
12HT,2H HJ6# | — | |
| 90430-98001 |
Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1987-08 → 1989-02
ended
|
12HT,2H HJ6# | ¥0 | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-61130 |
Cap Sub-assy, Air Cleaner
1988-08 → 1990-01
ended
|
3FE FJ62 | — | |
| 17705-68100 |
Cap Sub-assy, Air Cleaner
1987-08 → 1990-01
ended
|
2H HJ60 | — | |
| 17705-68100 |
Cap Sub-assy, Air Cleaner
1987-08 → 1990-01
ended
|
3F FJ62 | — | |
| 17705-68120 |
Cap Sub-assy, Air Cleaner
1987-08 → 1990-01
ended
|
12HT HJ61 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1987-08 → 1990-01
ended
|
3F# FJ62 | ¥3,990 | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1987-08 → 1990-01
ended
|
2H HJ60 | ¥3,990 | |
| 17801-68030 |
Element Sub-assy, Air Cleaner Filter
1987-08 → 1990-01
ended
|
12HT HJ61 | ¥5,100 | |
| 17841 — Gasket, Filter Element | ||||
| 17841-68010 |
Gasket, Filter Element
1987-08 → 1990-01
ended
|
3F# FJ62 | ¥0 | |
| 17841-68010 |
Gasket, Filter Element
1987-08 → 1990-01
ended
|
12HT,2H HJ6# | ¥0 | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-61011 |
Gasket, Air Cleaner Cap
1987-08 → 1990-01
ended
|
3F# FJ62 | — | |
| 17845-61011 |
Gasket, Air Cleaner Cap
1987-08 → 1990-01
ended
|
12HT,2H HJ6# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
