Toyota Land Cruiser Van

1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

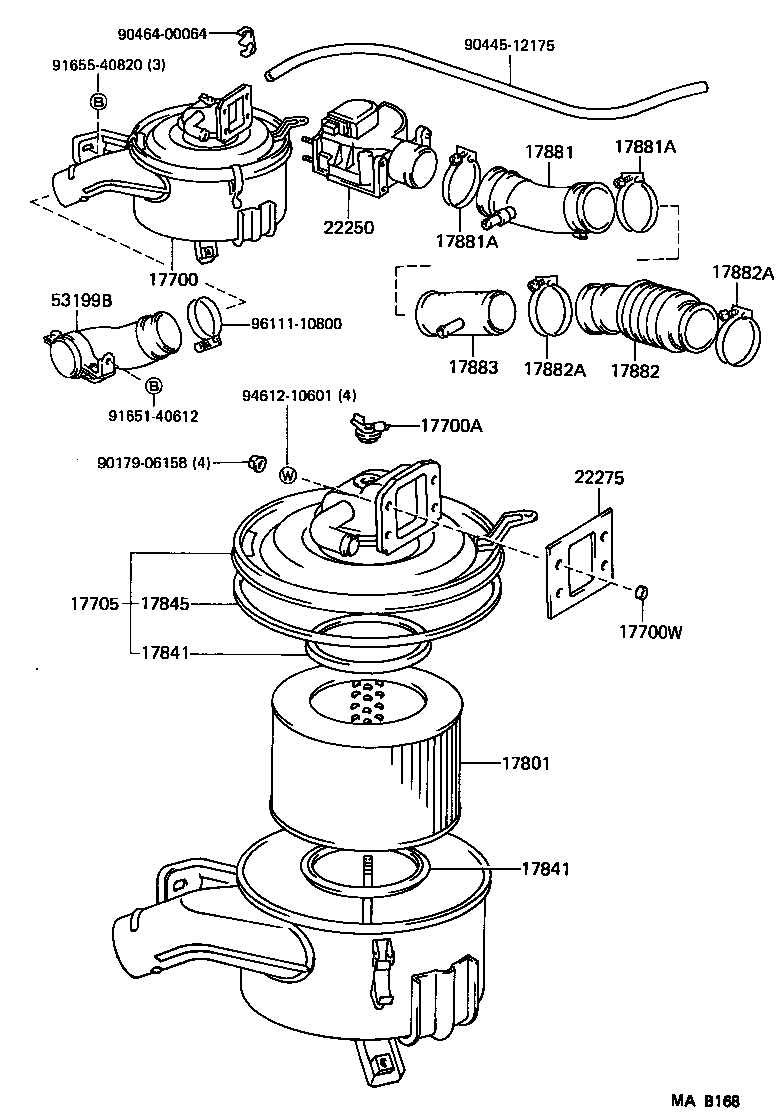

Exploded illustration MAB168 9046400064 — not listed in this catalogue 9044512175 — not listed in this catalogue 9165540820 — not listed in this catalogue 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (6 parts) 17881 — HOSE, AIR CLEANER, NO.1 (5 parts) 22250 — METER ASSY, INTAKE AIR FLOW (1 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (6 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (5 parts) 17700 — CLEANER ASSY, AIR (4 parts) 53199B — DUCT SUB-ASSY, COOL AIR INTAKE (1 parts) 9611110800 — not listed in this catalogue 17883 — HOSE, AIR CLEANER, NO.3 (3 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (5 parts) 17882 — HOSE, AIR CLEANER, NO.2 (3 parts) 9461210601 — not listed in this catalogue 9165140612 — not listed in this catalogue 17700A — NUT, WING(FOR AIR CLEANER) (2 parts) 9017906158 — not listed in this catalogue 22275 — GASKET, AIR FLOW METER (1 parts) 17845 — GASKET, AIR CLEANER CAP (2 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (4 parts) 17700W — SPACER(FOR AIR CLEANER) (1 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (3 parts) 17841 — GASKET, FILTER ELEMENT (2 parts)
MAB168 · 18 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-61230 Cleaner Assy, Air
1988-08 → 1990-01 ended
3FE FJ62 ¥25,100
17700-68140 Cleaner Assy, Air
1987-08 → 1990-01 ended
3F FJ62 ¥27,400
17700-68180 Cleaner Assy, Air
1987-08 → 1990-01 ended
12HT HJ61 ¥31,800
17700-68270 Cleaner Assy, Air
1987-08 → 1990-01 ended
2H HJ60 ¥31,800
17700A — Nut, Wing(FOR AIR CLEANER)
90175-08008 Nut, Wing(FOR AIR CLEANER)
1987-08 → 1990-01 ended
3F# FJ62 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1987-08 → 1990-01 ended
12HT,2H HJ6# —
17700W — Spacer(FOR AIR CLEANER)
90560-06009 Spacer(FOR AIR CLEANER)
1988-08 → 1990-01 ended
3FE FJ62 ¥160
17705 — Cap Sub-assy, Air Cleaner
17705-61130 Cap Sub-assy, Air Cleaner
1988-08 → 1990-01 ended
3FE FJ62 —
17705-68100 Cap Sub-assy, Air Cleaner
1987-08 → 1990-01 ended
3F FJ62 —
17705-68100 Cap Sub-assy, Air Cleaner
1987-08 → 1990-01 ended
2H HJ60 —
17705-68120 Cap Sub-assy, Air Cleaner
1987-08 → 1990-01 ended
12HT HJ61 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-68020 Element Sub-assy, Air Cleaner Filter
1987-08 → 1990-01 ended
3F# FJ62 ¥3,990
17801-68020 Element Sub-assy, Air Cleaner Filter
1987-08 → 1990-01 ended
2H HJ60 ¥3,990
17801-68030 Element Sub-assy, Air Cleaner Filter
1987-08 → 1990-01 ended
12HT HJ61 ¥5,100
17841 — Gasket, Filter Element
17841-68010 Gasket, Filter Element
1987-08 → 1990-01 ended
3F# FJ62 ¥0
17841-68010 Gasket, Filter Element
1987-08 → 1990-01 ended
12HT,2H HJ6# ¥0
17845 — Gasket, Air Cleaner Cap
17845-61011 Gasket, Air Cleaner Cap
1987-08 → 1990-01 ended
3F# FJ62 —
17845-61011 Gasket, Air Cleaner Cap
1987-08 → 1990-01 ended
12HT,2H HJ6# —
17881 — Hose, Air Cleaner, NO.1
17881-61061 Hose, Air Cleaner, NO.1
1987-08 → 1990-01 ended
3F FJ62 ¥4,840
17881-61090 Hose, Air Cleaner, NO.1
1988-08 → 1990-01 ended
3FE FJ62 ¥4,540
17881-68010 Hose, Air Cleaner, NO.1
1987-08 → 1990-01 ended
2H HJ60 MTM ¥6,200
17881-68050 Hose, Air Cleaner, NO.1
1987-08 → 1990-01 ended
2H HJ60 ATM ¥5,900
17881-68060 Hose, Air Cleaner, NO.1
1987-08 → 1990-01 ended
12HT HJ61 ¥4,560
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1990-01 ended
2H HJ60 ATM ¥190
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1990-01 ended
2H HJ60 ¥410
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1990-01 ended
3F FJ62 ¥160
96111-10830 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1990-01 ended
12HT,2H HJ6# ¥180
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1987-08 → 1990-01 ended
12HT HJ61 ¥410
96111-10930 Clamp(FOR AIR CLEANER HOSE, NO.1)
1988-08 → 1990-01 ended
3FE FJ62 ¥120
17882 — Hose, Air Cleaner, NO.2
17342-68010 Hose, Air Cleaner, NO.2
1987-08 → 1990-01 ended
12HT HJ61 ¥7,400
17882-61031 Hose, Air Cleaner, NO.2
1987-08 → 1990-01 ended
3F FJ62 ¥2,290
17882-61070 Hose, Air Cleaner, NO.2
1988-08 → 1990-01 ended
3FE FJ62 ¥4,900
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90460-80001 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-12 → 1990-01 ended
12HT HJ61 ¥820
90460-90001 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-12 → 1990-01 ended
12HT HJ61 ¥720
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-08 → 1987-12 ended
12HT HJ61 ¥160
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1987-08 → 1987-12 ended
12HT HJ61 ¥410
96111-10930 Clamp(FOR AIR CLEANER HOSE, NO.2)
1988-08 → 1990-01 ended
3FE FJ62 ¥120
17883 — Hose, Air Cleaner, NO.3
17341-68010 Hose, Air Cleaner, NO.3
1987-08 → 1990-01 ended
12HT HJ61 ¥2,510
17883-61011 Hose, Air Cleaner, NO.3
1987-08 → 1990-01 ended
3F FJ62 ¥3,720
17883-61020 Hose, Air Cleaner, NO.3
1988-08 → 1990-01 ended
3FE FJ62 ¥3,850
22250 — Meter Assy, Intake Air Flow
22250-61020 Meter Assy, Intake Air Flow
1988-08 → 1990-01 ended
3FE FJ62 ¥67,500
22275 — Gasket, Air Flow Meter
22275-43010 Gasket, Air Flow Meter
1988-08 → 1990-01 ended
3FE FJ62 ¥890
53199B — Duct Sub-assy, Cool Air Intake
53207-90A00 Duct Sub-assy, Cool Air Intake
1987-08 → 1990-01 ended
FJ62 ¥3,470
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
