Toyota Land Cruiser Van
1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan
Discontinued model
Data version 1990-06
Cylinder Block

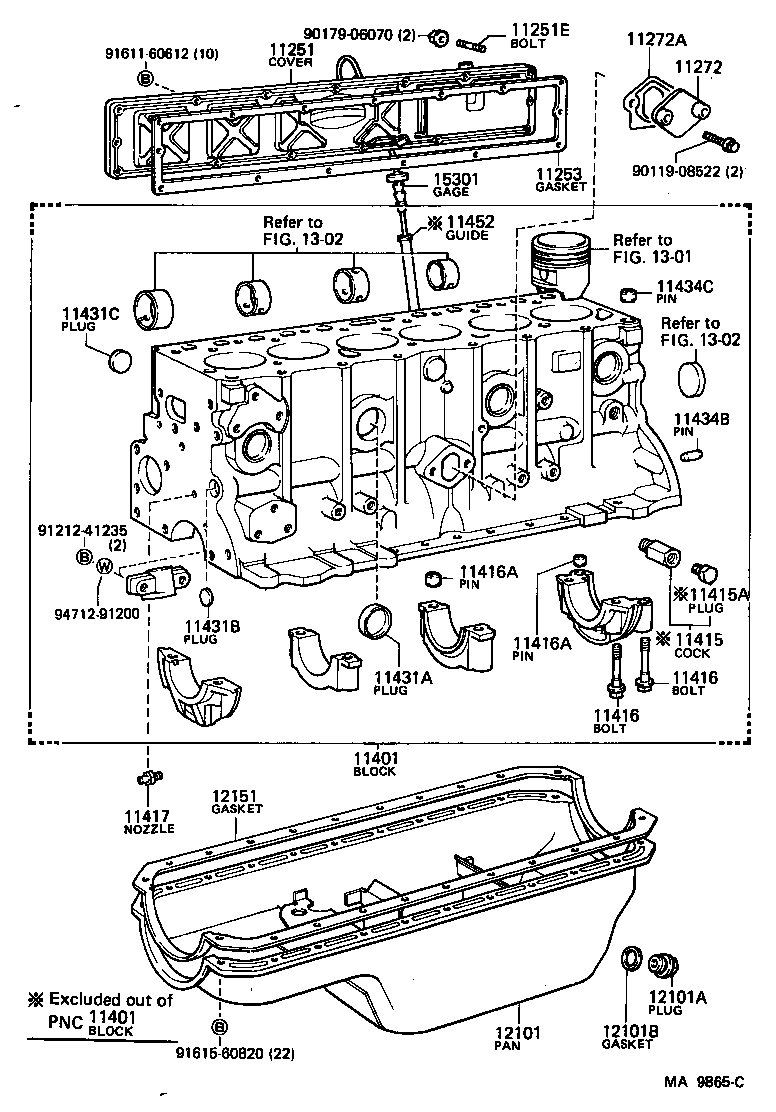

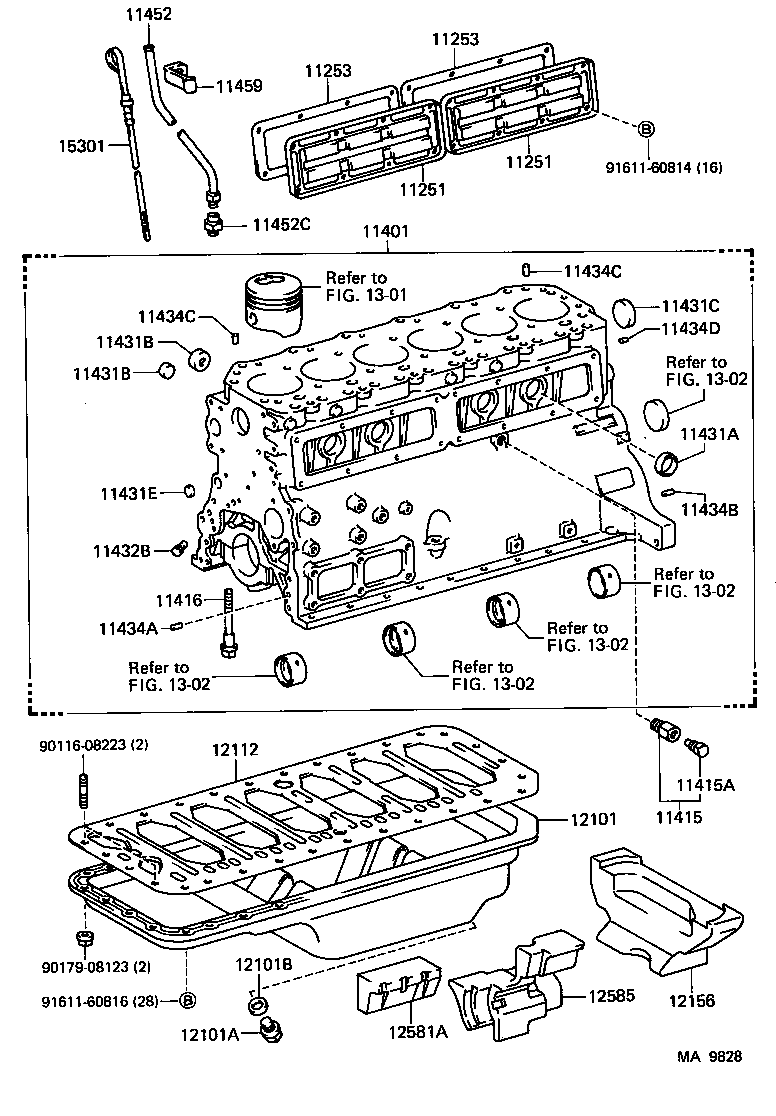

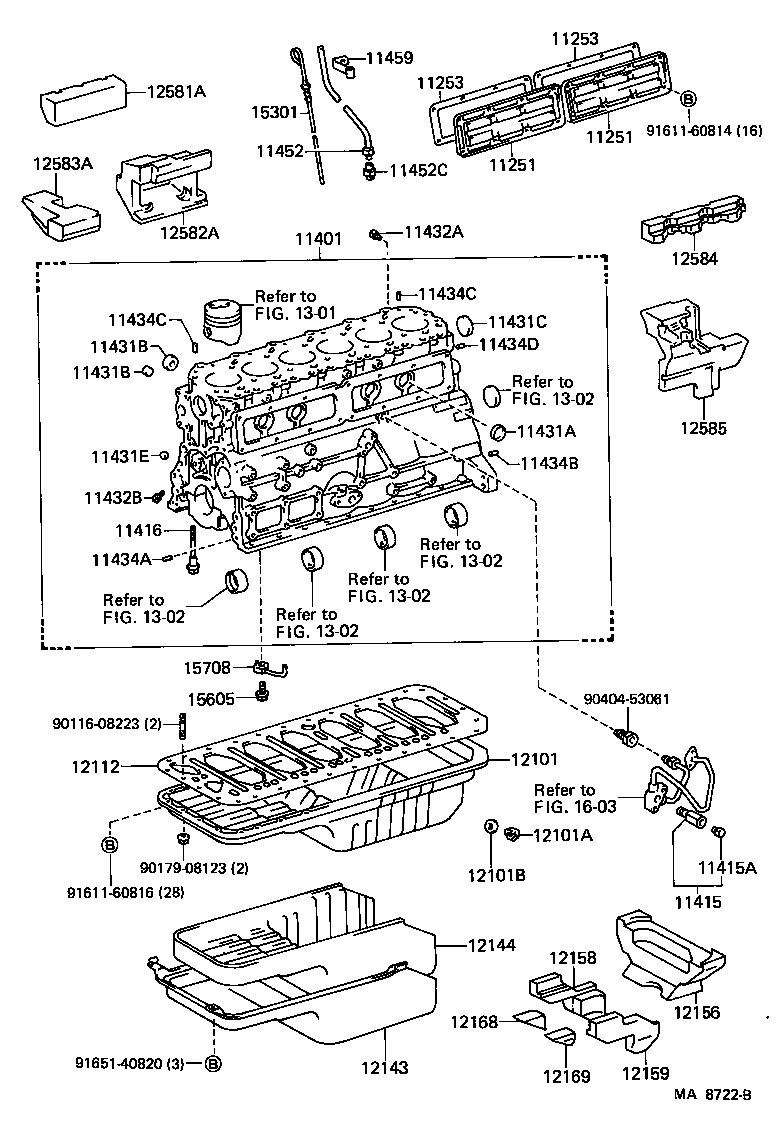

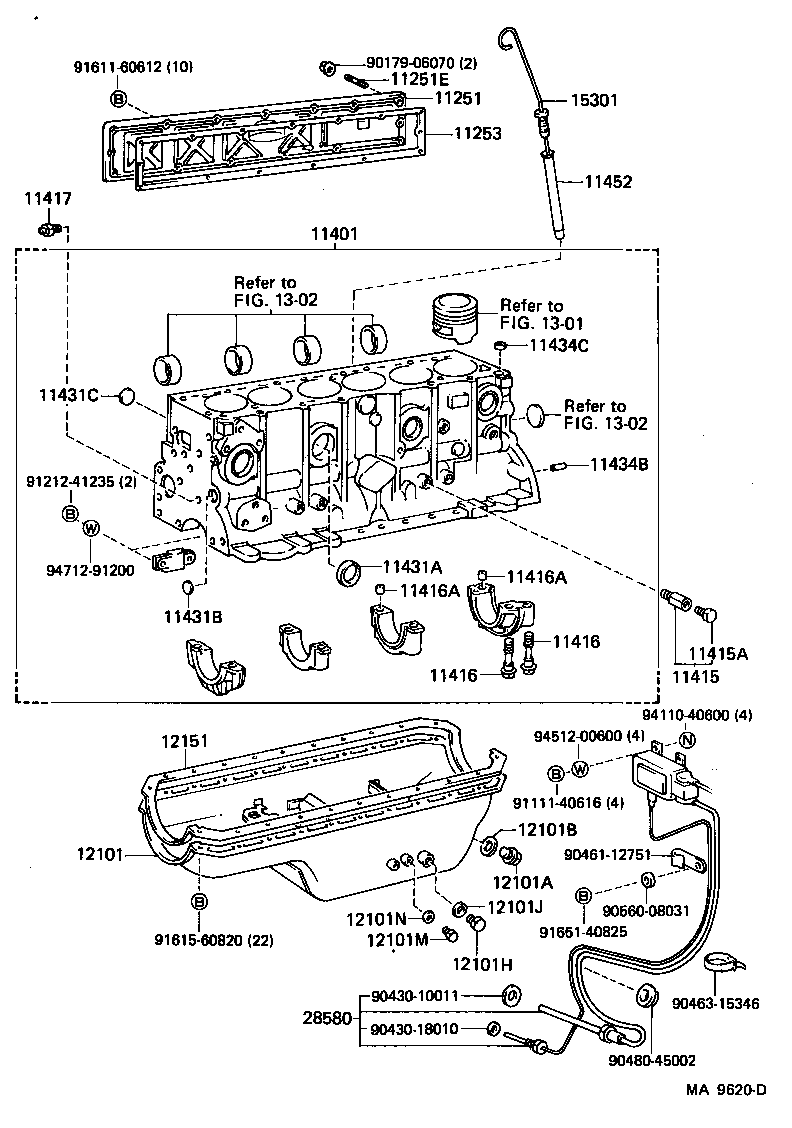

49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11251 | Cover, Valve Push Rod |
| 11251E | Bolt, Stud(FOR VALVE PUSH ROD COVER) |
| 11253 | Gasket, Valve Push Rod Cover |
| 11272 | Cover, Cylinder Block Side, NO.2 |
| 11272A | Gasket, Cylinder Block Side Cover, NO.2 |
| 11401 | Block Sub-assy, Cylinder |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11416A | Pin, Ring(FOR CRANKSHAFT BEARING CAP SET) |
| 11417 | Nozzle, Oil |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11431E | Plug, Tight, NO.5(FOR CYLINDER BLOCK) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11432B | Plug, W/Head Taper Screw, NO.2 |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11452 | Guide, Oil Level Gage |
| 11452C | Union(FOR OIL LEVEL GAGE GUIDE) |
| 11459 | Support, Oil Level Gage Guide |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12101H | Plug(FOR OIL HEATER HOUL) |
| 12101J | Gasket(FOR OIL HEATER HOLE PLUG) |
| 12101M | Plug(FOR OIL HEATER THERMOSTAT HOLE) |
| 12101N | Gasket(FOR OIL HEATER THERMOSTAT HOLE PLUG) |
| 12112 | Pan, Oil NO.2 |
| 12143 | Cover, Oil Pan |
| 12144 | Silencer, Oil Pan Cover |
| 12151 | Gasket, Oil Pan |
| 12156 | Insulator, Oil Pan |
| 12158 | Insulator, Stiffener, RH |
| 12159 | Insulator, Stiffener, LH |
| 12168 | Insulator, Stiffener, NO.2 RH |
| 12169 | Insulator, Stiffener, NO.2 LH |
| 12581A | Insulator, Cylinder Block, NO.1 |
| 12582A | Insulator, Cylinder Block, NO.2 |
| 12583A | Insulator, Cylinder Block, NO.3 |
| 12584 | Insulator, Cylinder Brock, NO.4 |
| 12585 | Insulator, Cylinder Brock, NO.5 |
| 15301 | Gage Sub-assy, Oil Level |
| 15605 | Valve Sub-assy, Oil Check |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
| 28580 | Heater Assy, Oil |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
