Toyota Land Cruiser Van

1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

19 part groups · 4 illustrations

Illustrations

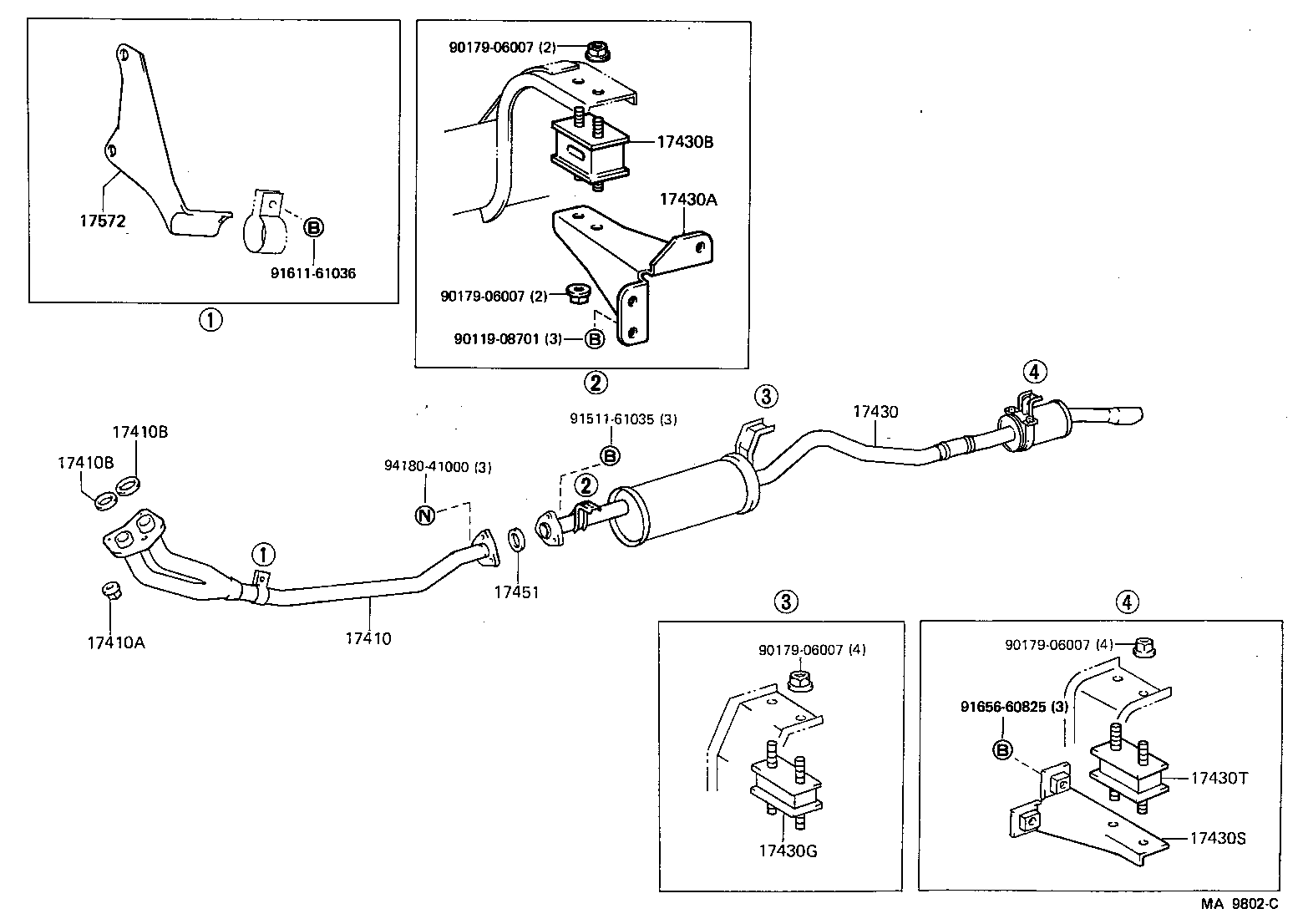

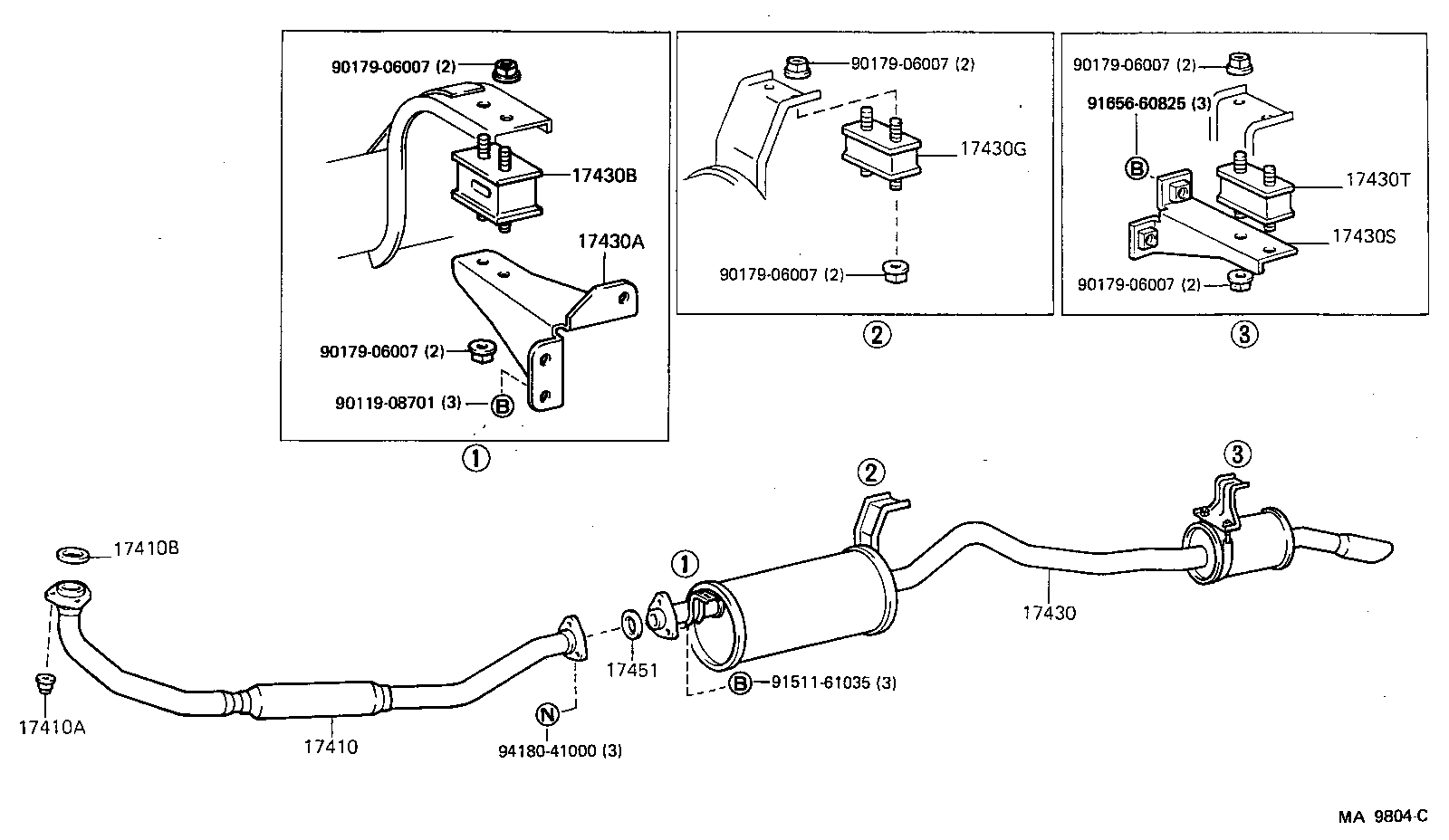

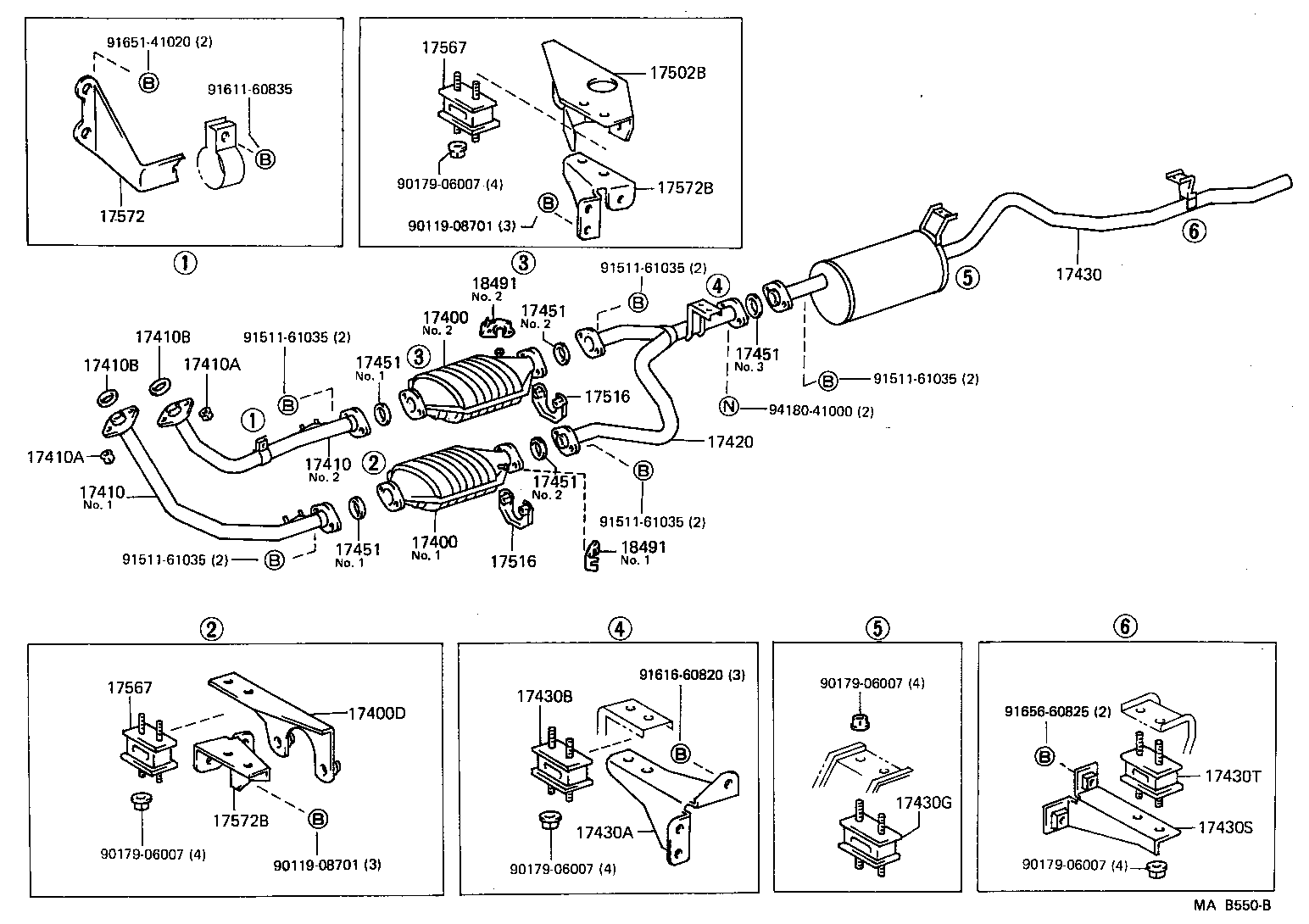

Figure MA9803C MA9803C 1987-08 → — Figure MA9804C MA9804C 1987-08 → — Figure MA9802C MA9802C 1987-08 → — Figure MAB550B MAB550B 1988-08 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400D Bracket, Catalytic Converter Support
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17502B Bracket Sub-assy, Catalytic Converter, Front
17516 Retainer, Exhaust Pipe, NO.2
17567 Cushion, Exhaust Pipe Support
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
18491 Flange, Thermosensor Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
