Toyota Land Cruiser Van
1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan
Discontinued model
Data version 1990-06

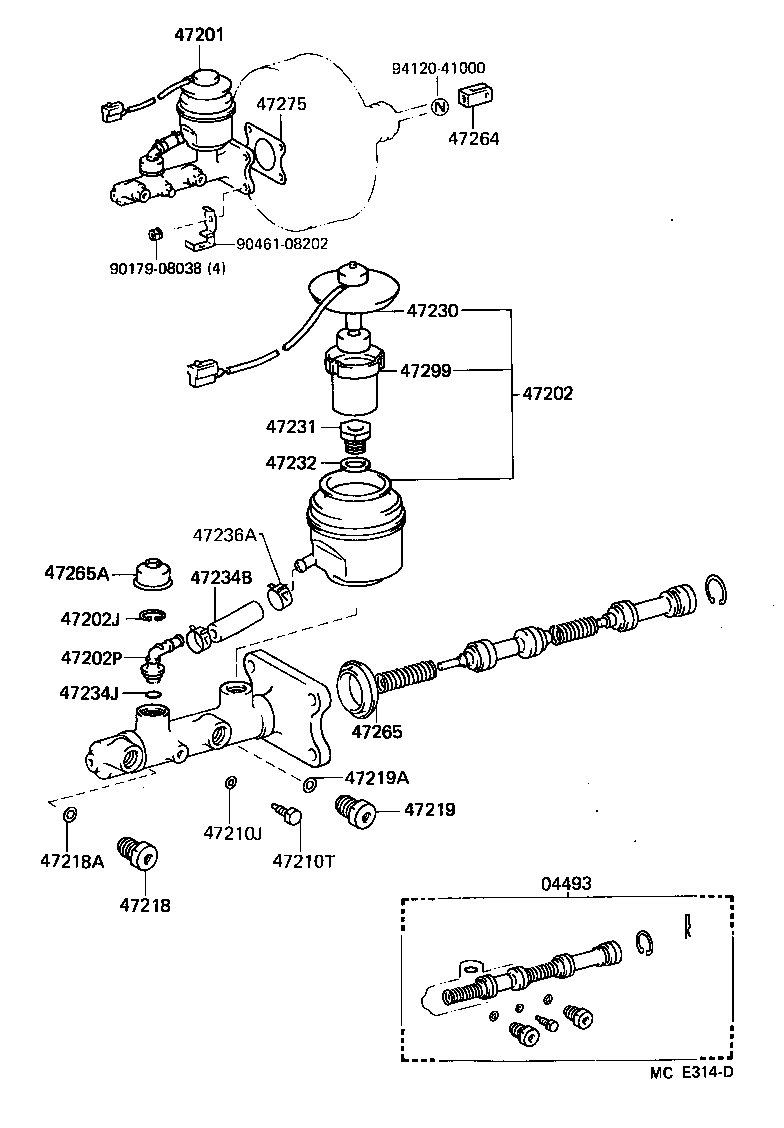

Brake Master Cylinder
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47202J | Ring, Snap(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202P | Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE) |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47219 | Plug, Master Cylinder Fluid Outlet(FOR REAR SIDE) |
| 47219A | Gasket(FOR FLUID OUTLET PLUG REAR SIDE) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47231 | Bolt, Brake Master Cylinder Reservoir Set |
| 47232 | Washer, Brake Reservoir Set Bolt |
| 47234B | Tube, Reservoir, NO.1 |
| 47234J | Ring, O(FOR RESERVOIR TUBE) |
| 47236A | Clip(FOR RESERVOIR TUBE) |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47265 | Boot, Master Cylinder |
| 47265A | Boot, Master Cylinder, NO.1 |
| 47275 | Gasket, Brake Master Cylinder |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
