Toyota Land Cruiser Van
1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan
Discontinued model
Data version 1990-06

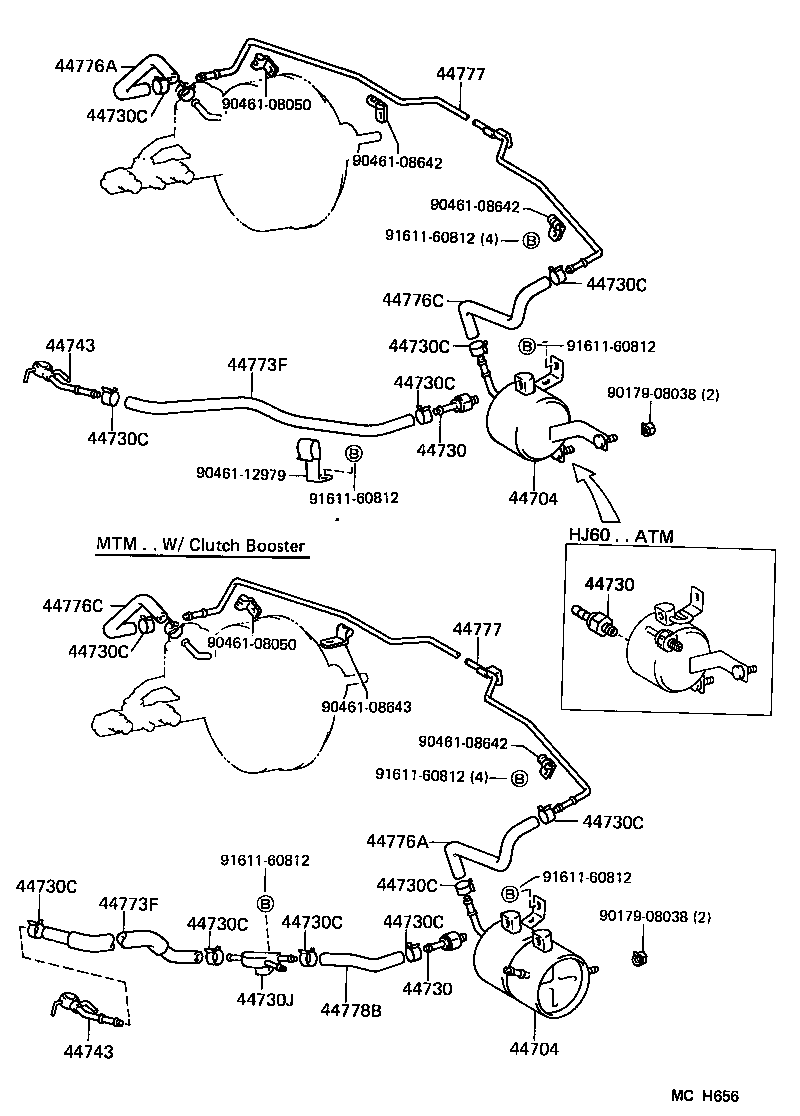

Brake Booster & Vacuum Tube
26 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 04443 | Booster Kit, Brake |
| 44606E | Rod Sub-assy, Brake Booster Piston |
| 44610 | Booster Assy, Brake |
| 44621V | Seal, Booster Body |
| 44626A | Retainer, Booster Body Seal |
| 44629 | Ring, Circular Internal |
| 44635B | Key, Valve Stopper |
| 44642 | Piston, Brake Booster |
| 44643 | Retainer, Diaphragm |
| 44657D | Case, Reaction Disc |
| 44696 | Grommet, Check Valve |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730C | Clip(FOR VACUUM HOSE) |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44730J | Way(FOR BOOSTER VACUUM) |
| 44743 | Union(FOR VACUUM PUMP) |
| 44758 | Bracket, Vacuum Check Valve |
| 44773F | Hose, Union TO Check Valve |
| 44774 | Hose, Union TO Connector Tube |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44776C | Hose, Vacuum Reservoir TO Connector |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44778 | Hose, Connector TO Check Valve |
| 44778B | Hose, Way TO Check Valve |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
