Toyota Land Cruiser Van
1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan
Discontinued model
Data version 1990-06

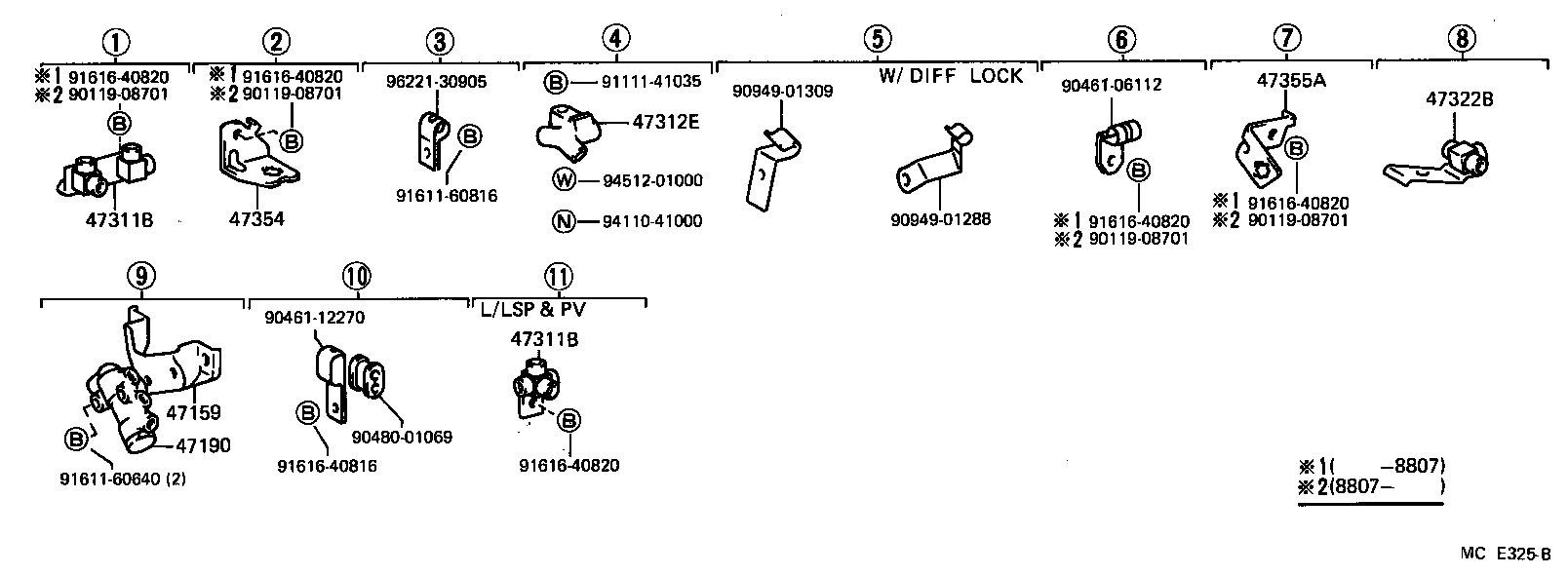

Brake Tube & Clamp
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47159 | Bracket, Proportioning Valve |
| 47190 | Valve Assy, Proportioning & By-pass |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47311G | Hose, Flexible(FOR BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323 | Tube, Rear Brake, NO.3 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47341B | Tube, Wheel Cylinder, Front RH NO.1 |
| 47343A | Tube, Wheel Cylinder, Front LH NO.1 |
| 47354 | Bracket, Front Flexible Hose |
| 47355A | Bracket, Flexible Hose, NO.5 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
