Toyota Land Cruiser Van

1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan

Discontinued model Data version 1990-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

82 part groups · 3 illustrations

Illustrations

MBL919B 1987-08 → —

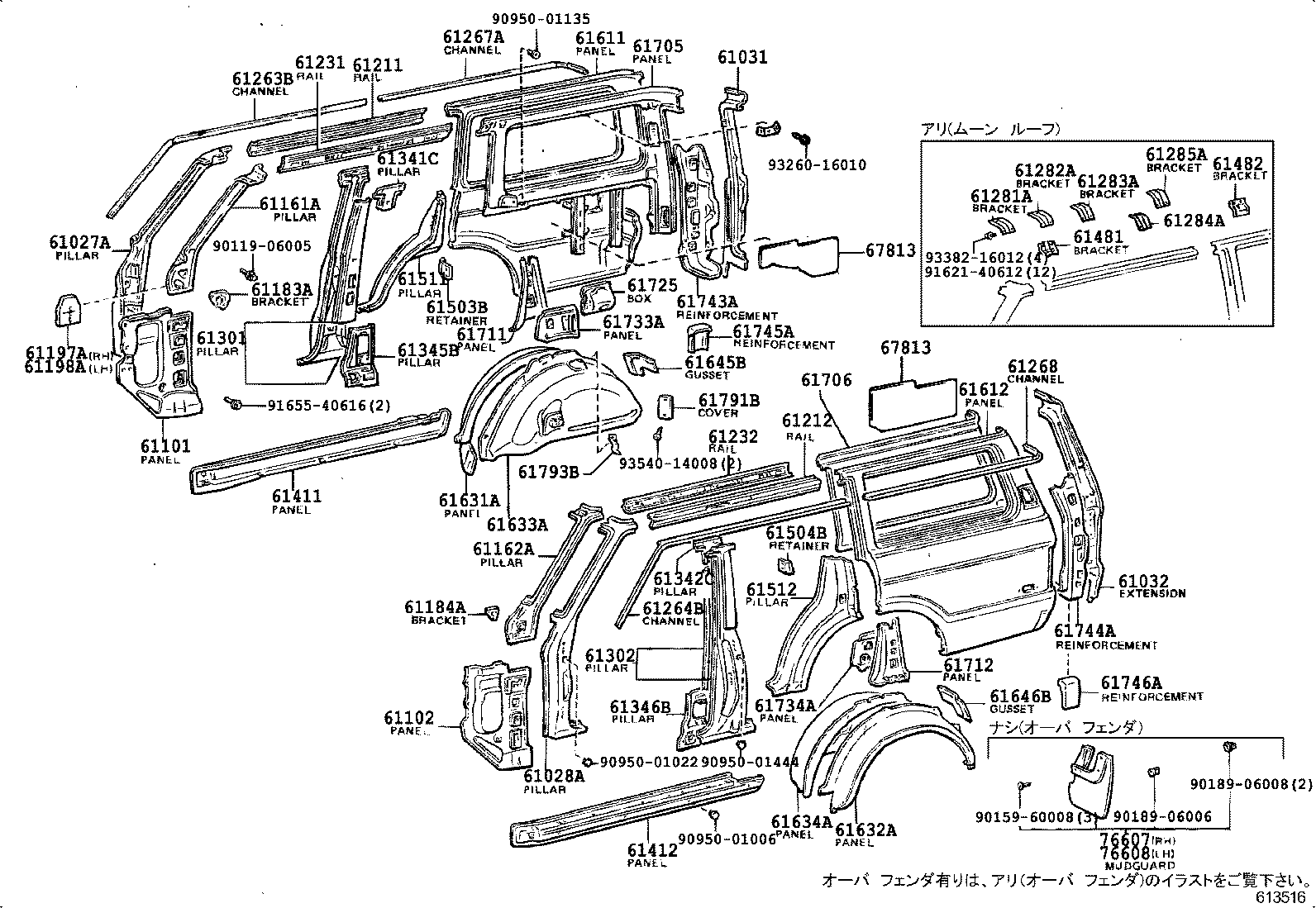

613516 1987-08 → —

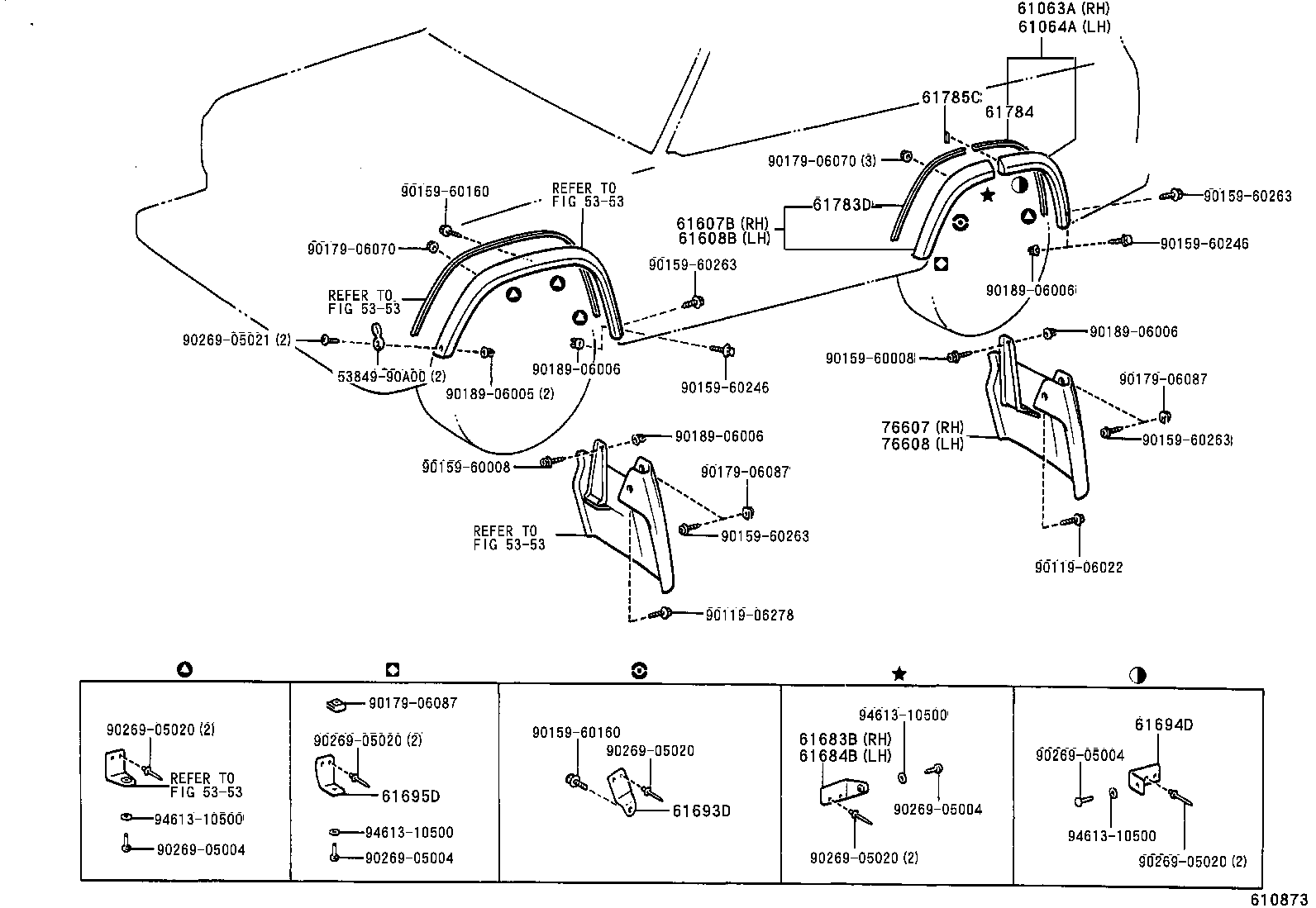

610873 1987-08 → —

Part groups

PNC	Description
61027A	Pillar Sub-assy, Front Body, Outer RH
61028A	Pillar Sub-assy, Front Body, Outer LH
61031	Extension Sub-assy, Quarter Panel, Rear Lower RH
61032	Extension Sub-assy, Quarter Panel, Rear Lower LH
61063A	Extension Sub-assy, Rear Wheel Opening, NO.2 RH
61064A	Extension Sub-assy, Rear Wheel Opening, NO.2 LH
61101	Panel Sub-assy, Cowl Side, RH
61102	Panel Sub-assy, Cowl Side, LH
61161A	Pillar, Front Body, Inner RH
61162A	Pillar, Front Body, Inner LH
61183A	Bracket, Instrument Panel Side, NO.2 RH
61184A	Bracket, Instrument Panel Side, NO.2 LH
61197A	Cover, Front Pillar, RH
61198A	Cover, Front Pillar, LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61263B	Channel, Roof Drip Side, Front RH
61264B	Channel, Roof Drip Side, Front LH
61267A	Channel, Roof Drip Side, Rear RH
61268	Channel, Roof Drip Side, Rear LH
61281A	Bracket, Sliding Roof Housing Side Mounting, NO.1
61282A	Bracket, Sliding Roof Housing Side Mounting, NO.2
61283A	Bracket, Sliding Roof Housing Side Mounting, NO.3 RH
61284A	Bracket, Sliding Roof Housing Side Mounting, NO.3 LH
61285A	Bracket, Sliding Roof Housing Side Mounting, NO.4
61297	Channel, Roof Drip Side, Rear NO.2, RH
61298	Channel, Roof Drip Side, Rear NO.2, LH
61301	Pillar Sub-assy, Center Body, RH
61302	Pillar Sub-assy, Center Body, LH
61341C	Pillar, Center Body, Inner Upper RH
61342C	Pillar, Center Body, Inner Upper LH
61345B	Pillar, Center Body, Inner Lower RH
61346B	Pillar, Center Body, Inner Lower LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61481	Bracket, Roof Side Rail Reinforce, NO.1
61482	Bracket, Roof Side Rail Reinforce, NO.2
61503B	Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B	Reinforcement Sub-assy, Quarter Lock Pillar, LH
61511	Pillar, Quarter Lock, RH
61512	Pillar, Quarter Lock, LH
61607B	Extension Sub-assy, Rear Wheel Opening, RH
61608B	Extension Sub-assy, Rear Wheel Opening, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61645B	Gusset, Quarter Wheel House, Rear RH
61646B	Gusset, Quarter Wheel House, Rear LH
61681A	Step, Quarter Panel, NO.1
61683B	Bracket, Rear Wheel Opening, NO.1 RH
61684B	Bracket, Rear Wheel Opening, NO.1 LH
61693D	Bracket, Rear Wheel Opening, NO.1
61694D	Bracket, Rear Wheel Opening, NO.2
61695D	Bracket, Rear Wheel Opening, NO.3
61703F	Panel Sub-assy, Quarter, Inner Front RH
61704F	Panel Sub-assy, Quarter, Inner Front LH
61705	Panel Sub-assy, Roof Side, Inner RH
61706	Panel Sub-assy, Roof Side, Inner LH
61711	Panel, Roof Side, Outer RH
61712	Panel, Roof Side, Outer LH
61725	Box, Fuel Inlet
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61743A	Reinforcement, Back Door Opening Side, RH
61744A	Reinforcement, Back Door Opening Side, LH
61745A	Reinforcement, Back Door Opening, Lower RH
61746A	Reinforcement, Back Door Opening, Lower LH
61783D	Pad, Rear Wheel Opening Extension, NO.1
61784	Pad, Rear Wheel Opening Extension, NO.2
61785C	Pad, Rear Wheel Opening Extension, NO.3
61791B	Cover, Roof Side Inner Service Hole
61793B	Bracket, Cooler Condenser, NO.1
65816A	Panel, Rear Body Side, RH
65817A	Panel, Rear Body Side, LH
67813	Pad, Quarter Panel Silencer
76607	Mudguard Sub-assy, Quarter Panel, Rear RH
76608	Mudguard Sub-assy, Quarter Panel, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
