Toyota Land Cruiser Van
1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan
Discontinued model
Data version 1990-06

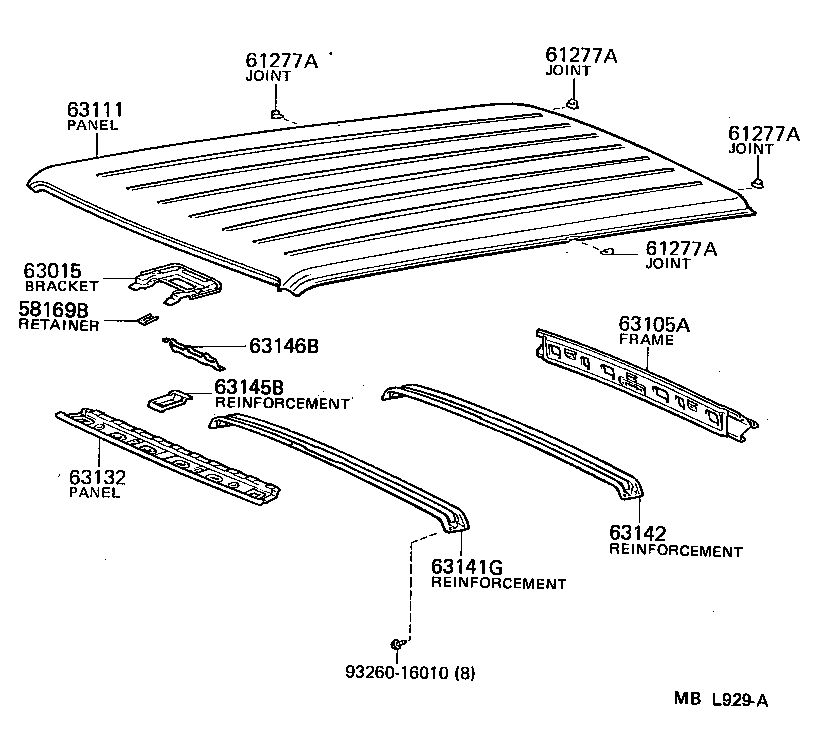

Roof Panel & Back Panel
46 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 58169B | Retainer, Rear Heater Mounting |
| 59209 | Cover Sub-assy, Inspection Hole |
| 59277A | Weatherstrip, Inspection Hole Cover |
| 61262C | Channel, Roof Drip, Rear |
| 61277A | Joint, Roof Drip Channel |
| 63015 | Bracket Sub-assy, Roof Console |
| 63046 | Reinforcement Sub-assy, Roof Panel, NO.4 A |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63112A | Panel, Roof, NO.2 |
| 63129 | Protector, Windshield Header |
| 63132 | Panel, Windshield Header, Inner |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63145B | Reinforcement, Windshield Header Panel |
| 63146B | Reinforcement, Windshield Header Panel, NO.2 |
| 63147 | Bracket, Roof Panel Reinforcement |

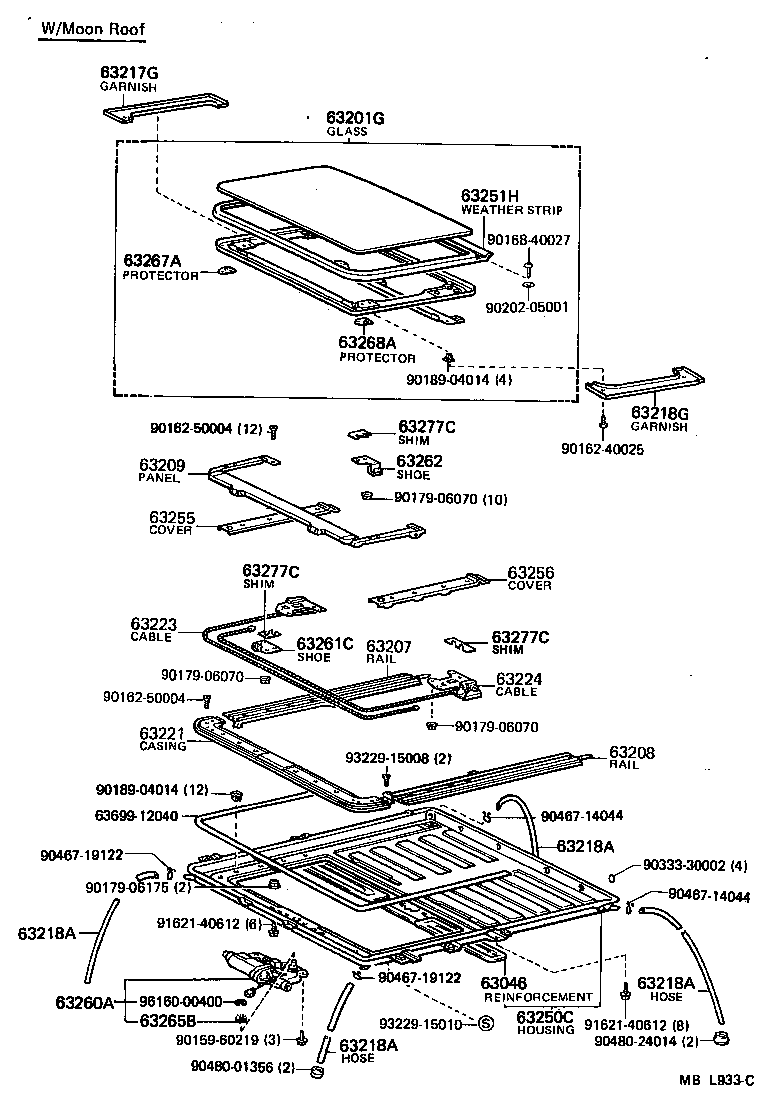

| 63201G | Glass Sub-assy, Sliding Roof |
| 63207 | Rail Sub-assy, Sliding Roof Guide, RH |
| 63208 | Rail Sub-assy, Sliding Roof Guide, LH |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218A | Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63221 | Casing, Sliding Roof Cable Guide |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63250C | Housing Assy, Sliding Roof |
| 63251D | Strength, Roof Panel, Center NO.1 |
| 63251H | Weatherstrip, Sliding Roof |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63261C | Shoe, Sliding Roof, Front RH |
| 63262 | Shoe, Sliding Roof, Front LH |
| 63265B | Gear, Sliding Roof Drive |
| 63267A | Protector, Sliding Roof Weatherstrip, RH |
| 63268A | Protector, Sliding Roof Weatherstrip, LH |
| 63277C | Shim, Sliding Roof Panel |
| 64111C | Panel, Cab Back, Upper |
| 64112B | Panel, Cab Back, Lower |
| 64115A | Reinforcement, Back, Upper |
| 64116A | Reinforcement, Back, Lower |
| 64123A | Panel, Back Corner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
