Toyota Land Cruiser Van
1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan
Discontinued model
Data version 1990-06
Fuel Tank & Tube
48 part groups · 6 illustrations
Part groups

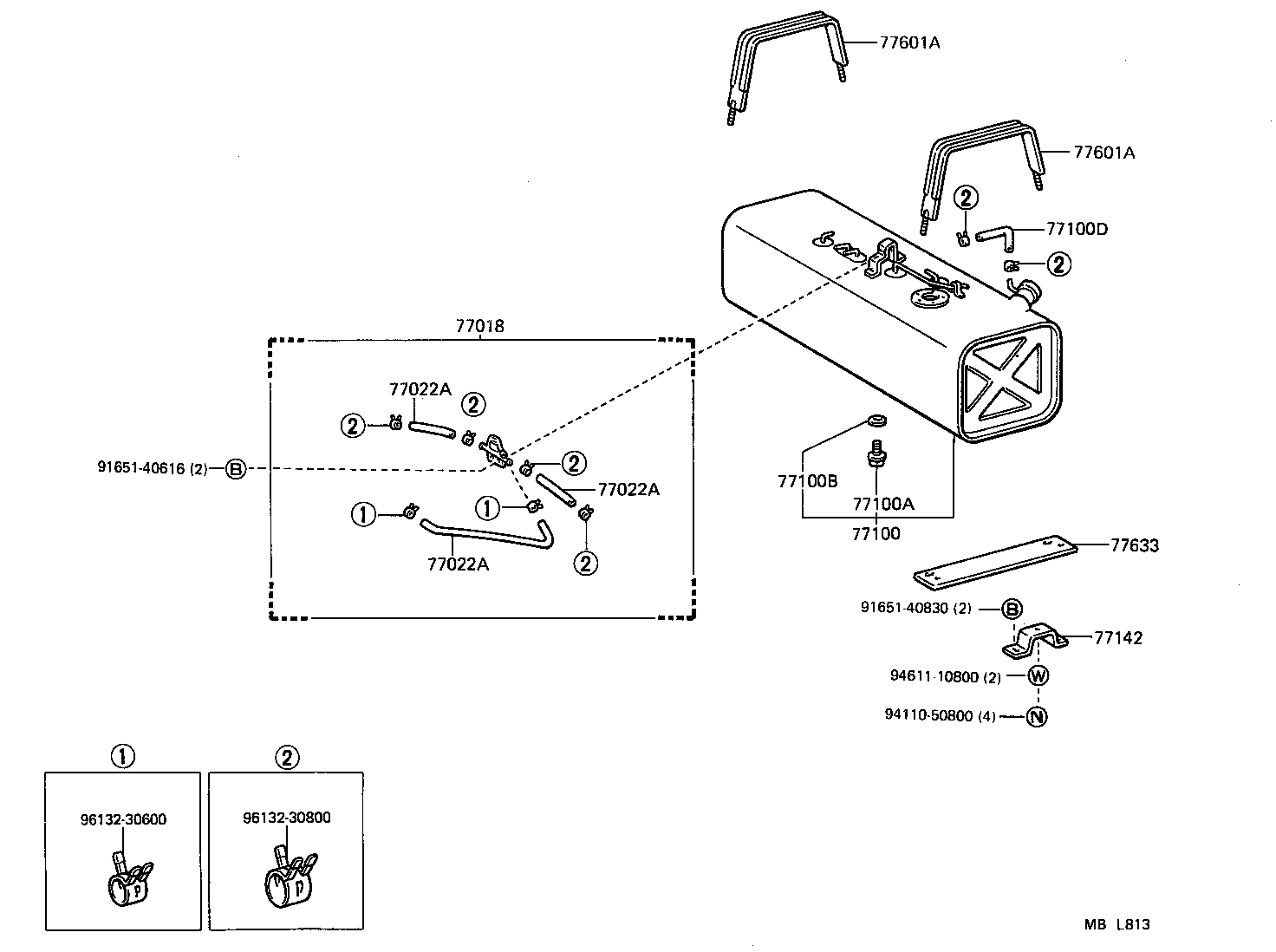

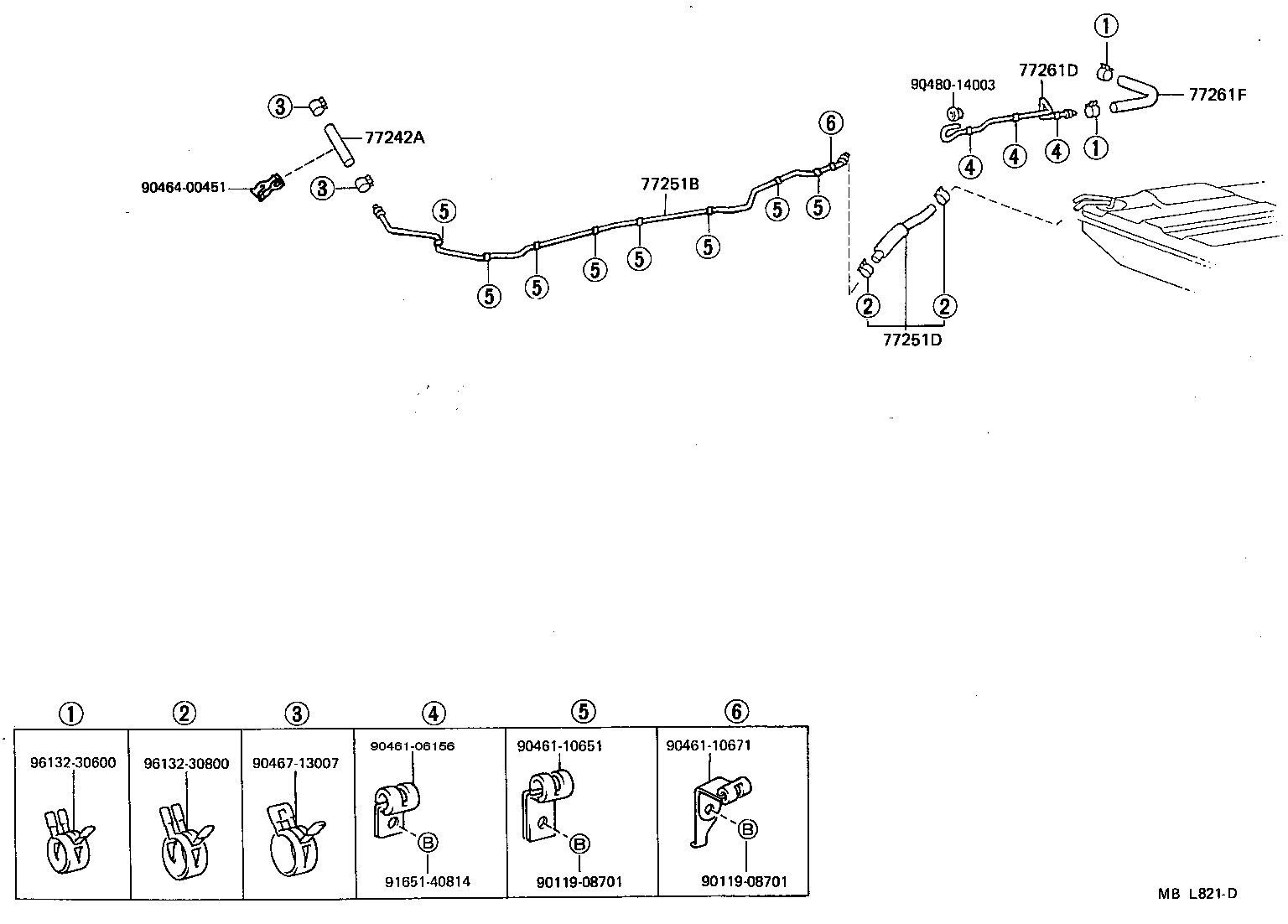

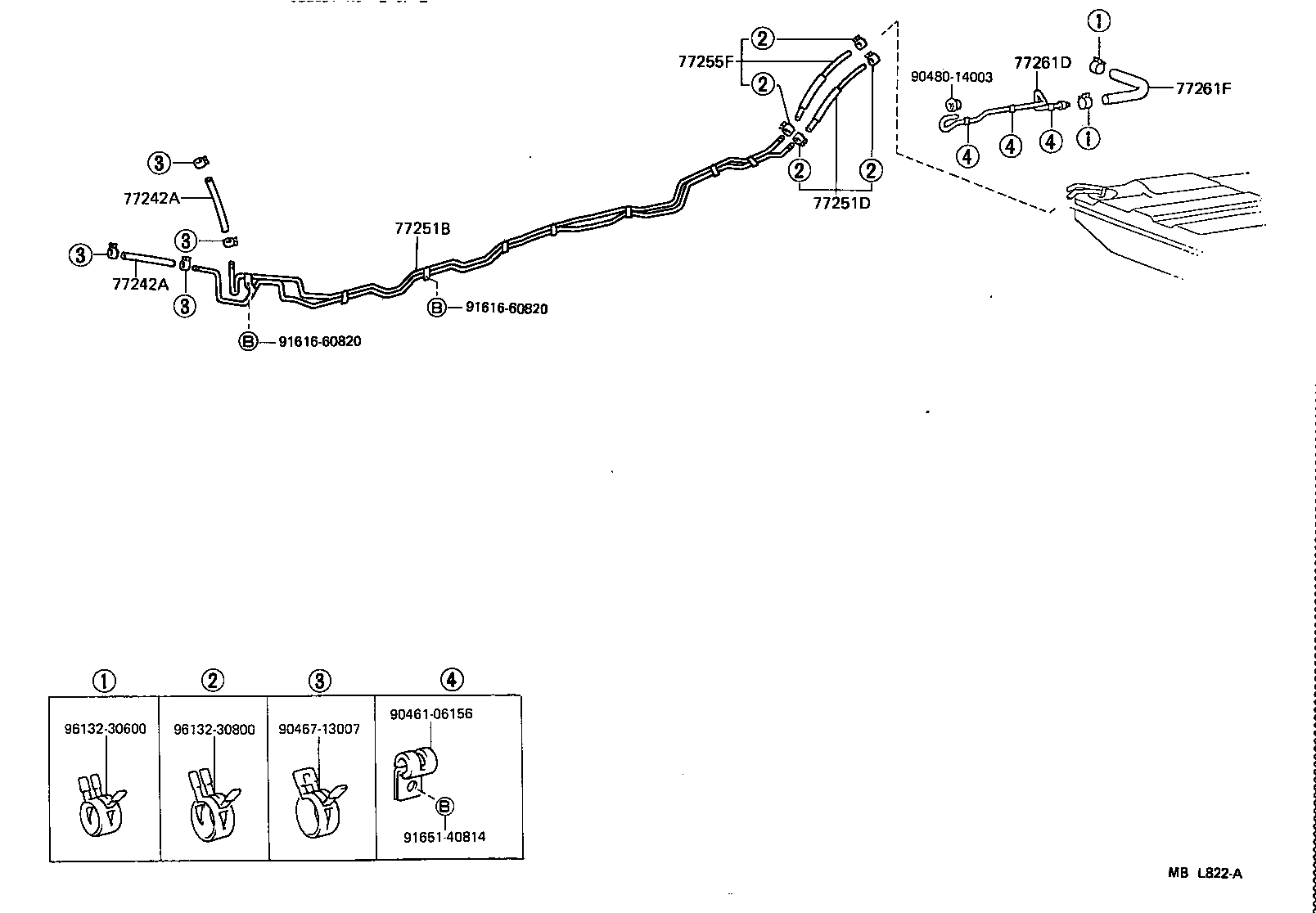

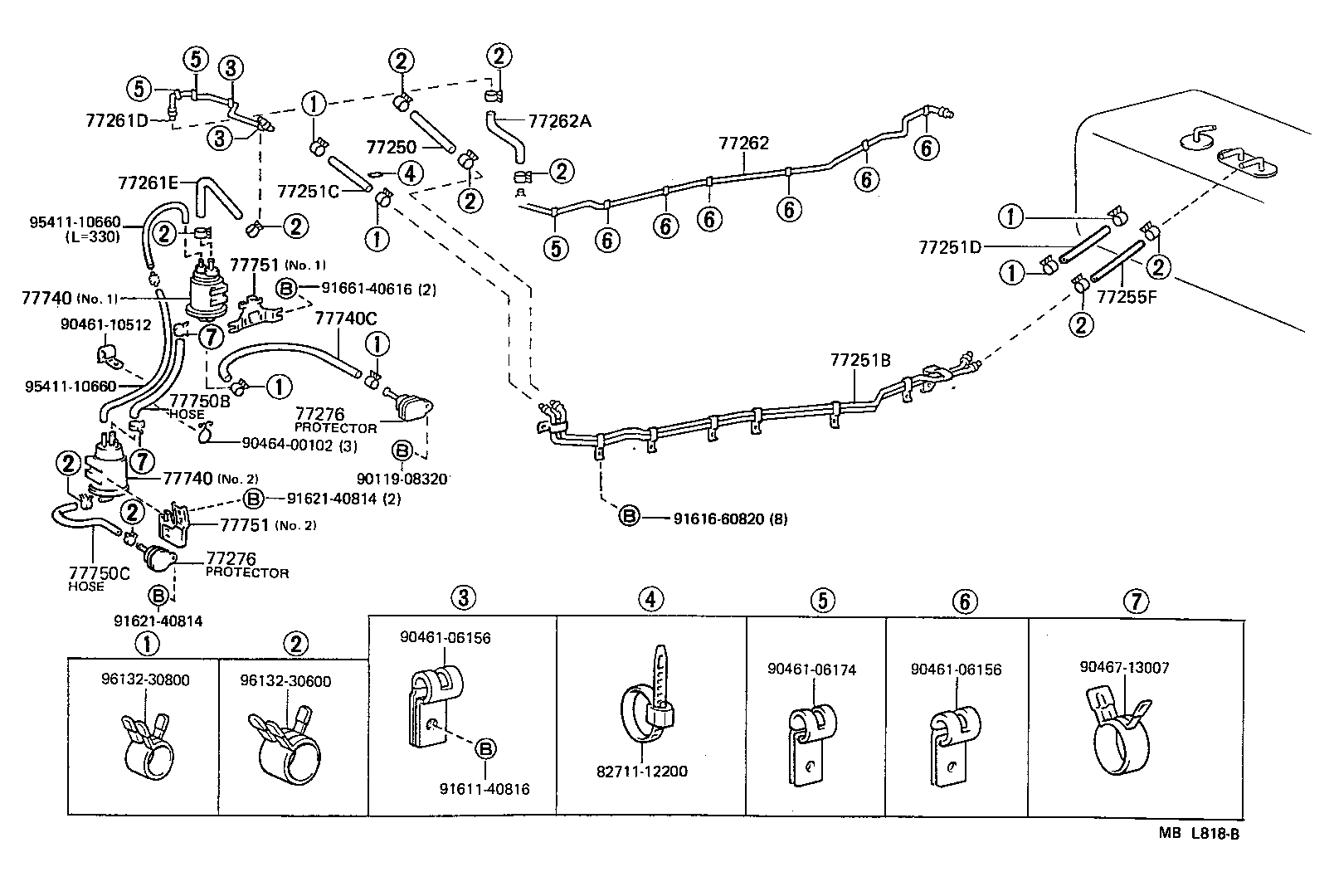

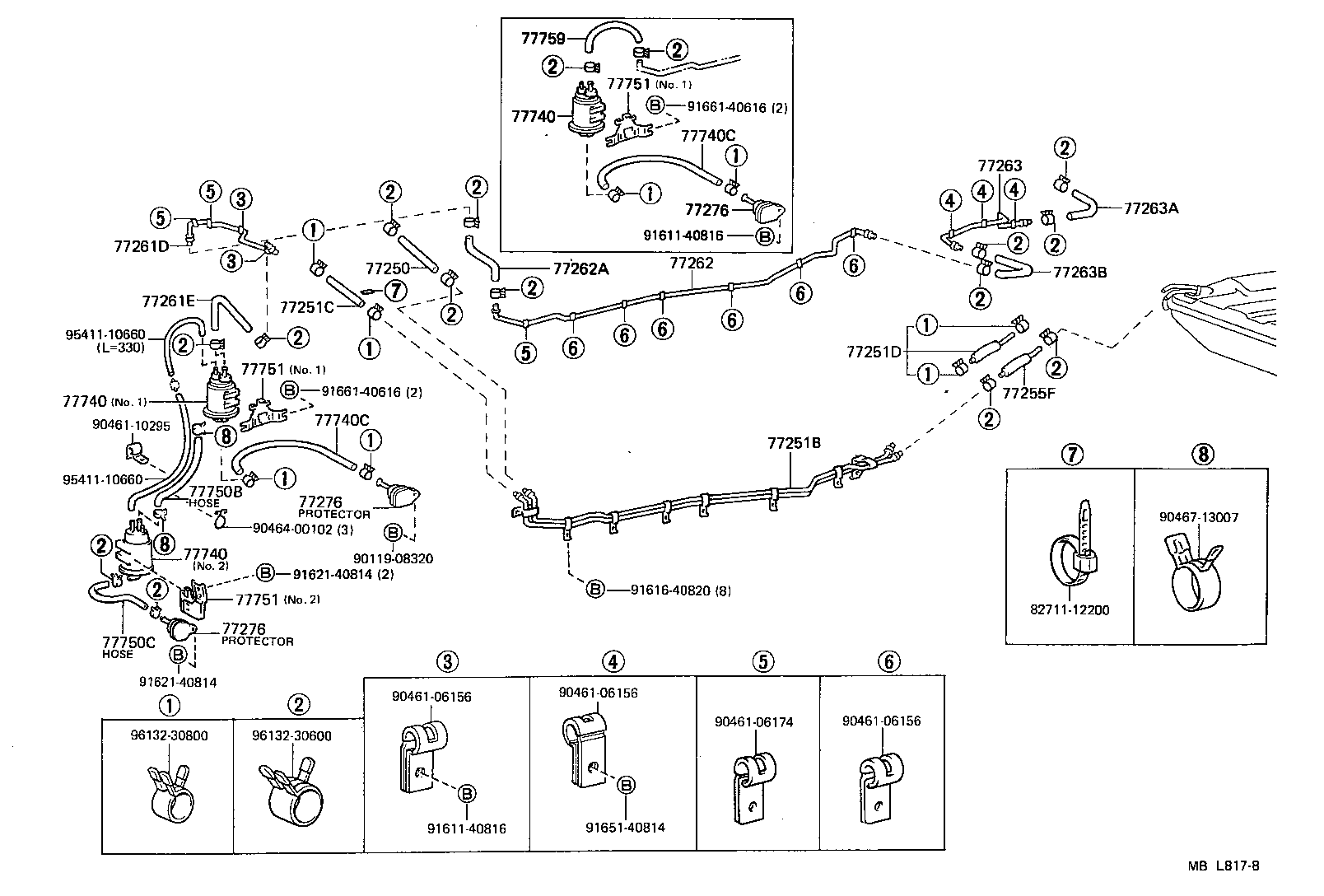

| PNC | Description |
|---|---|
| 58279A | Protector, Fuel Hose |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77017A | Gasket, Fuel Tank Vent |
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77142 | Bracket, Fuel Tank Mounting, Rear |
| 77193 | Valve, Fuel Liquid Vapor Separator |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77209 | Connector Sub-assy, Fuel Tube |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77250 | Hose Assy, Fuel Return |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77261F | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE) |
| 77262 | Tube, Fuel Emission, NO.2 |
| 77262A | Hose, Fuel, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) |
| 77263 | Tube, Fuel Tank TO Canister, NO.3 |
| 77263A | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE) |
| 77263B | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER NO.3 TUBE) |
| 77276 | Protector, Fuel Hose |
| 77293C | Packing, Fuel Tank Outer Filler Pipe |
| 77305A | Lid Sub-assy, Fuel Filler Opening |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77358A | Stopper, Fuel Filler Opening Lid |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77633 | Stay, Fuel Tank |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77750B | Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER) |
| 77750C | Hose, Fuel, NO.3 (FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77759 | Hose, Charcoal Canister |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
