Toyota Land Cruiser Van
1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan
Discontinued model
Data version 1990-06

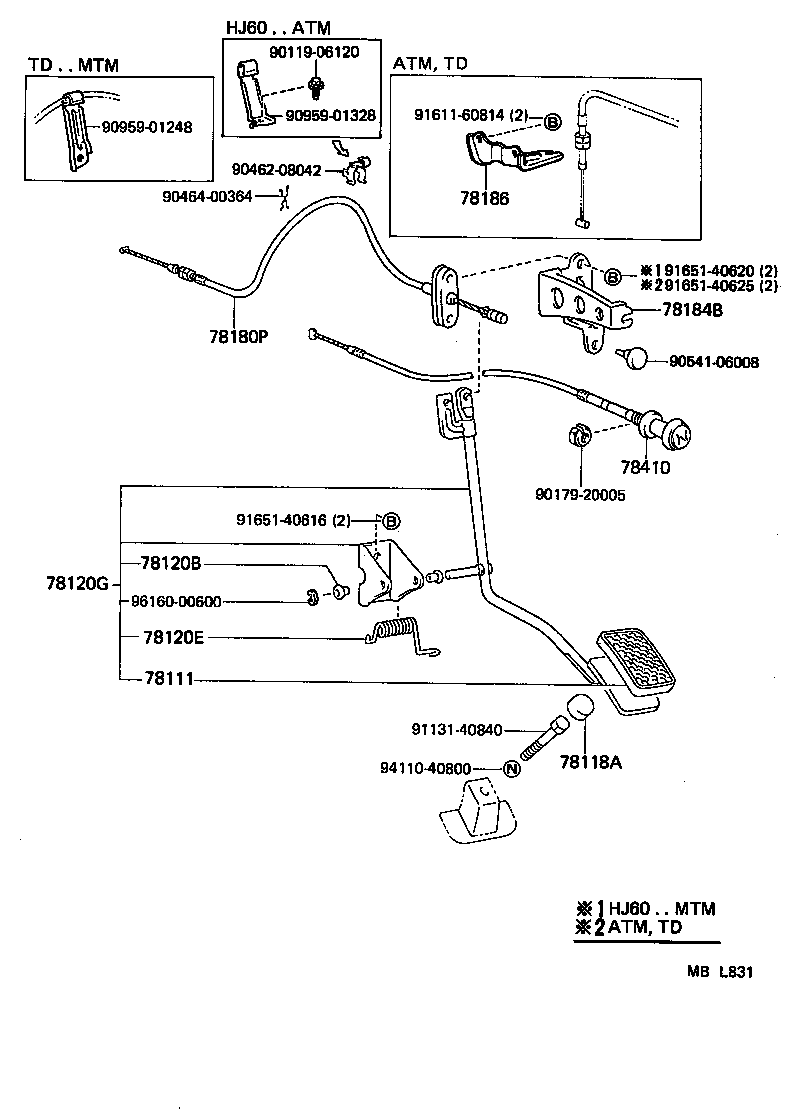

Accelerator Link
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78111 | Pedal, Accelerator |
| 78118A | Stopper, Accelerator Pedal |
| 78120B | Bush (FOR ACCELERATOR LINK ROD) |
| 78120E | Spring, Tension (FOR ACCELERATOR LINK ROD) |
| 78120G | Rod Assy, Accelerator Pedal |
| 78180P | Cable Assy, Accelerator Control |
| 78184B | Bracket, Accelerator Control Cable |
| 78186 | Support, Accelerator Control Cable, NO.1 |
| 78310 | Cable Assy, Choke |
| 78311 | Knob, Choke Control Cable |
| 78410 | Cable Assy, Throttle Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
