Toyota Land Cruiser Van

1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan

Discontinued model Data version 1990-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 3 illustrations

Illustrations

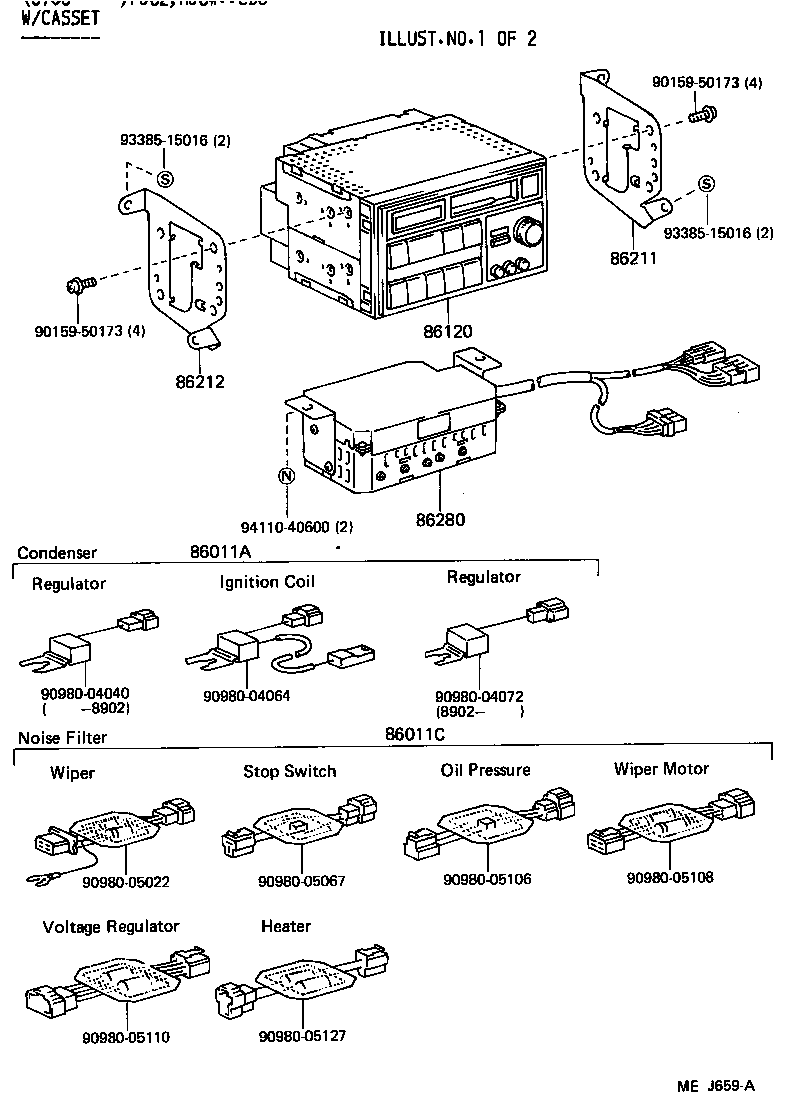

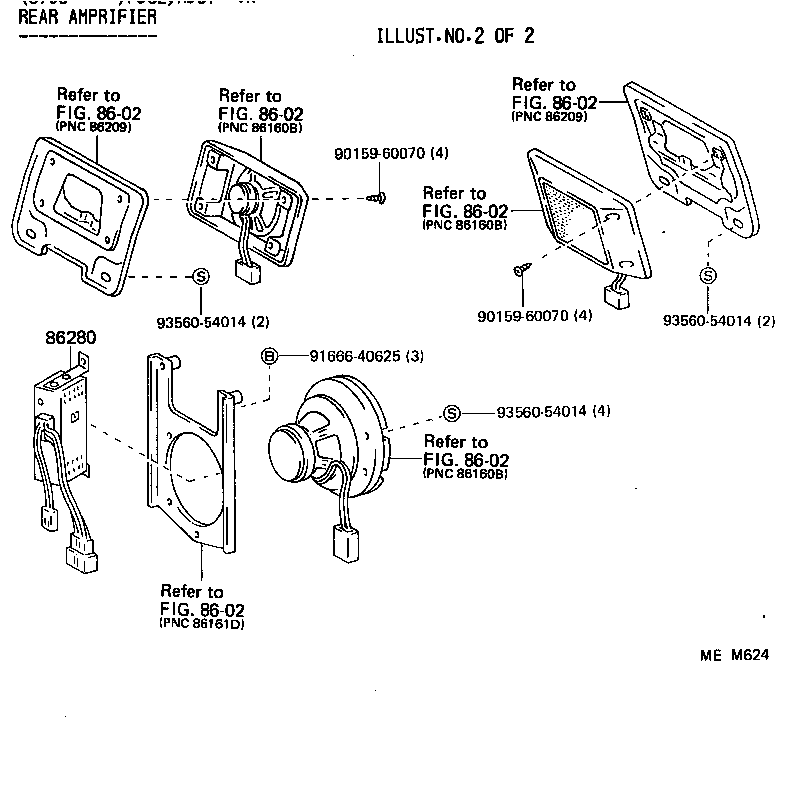

Figure MEJ658B MEJ658B 1987-08 → — Figure MEJ659A MEJ659A 1987-08 → — Figure MEM624 MEM624 1987-08 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
