Toyota Land Cruiser Van
1987-08 → 1990-01 · chassis FJ6#,HJ6# · catalogue 791130 · Japan
Discontinued model
Data version 1990-06

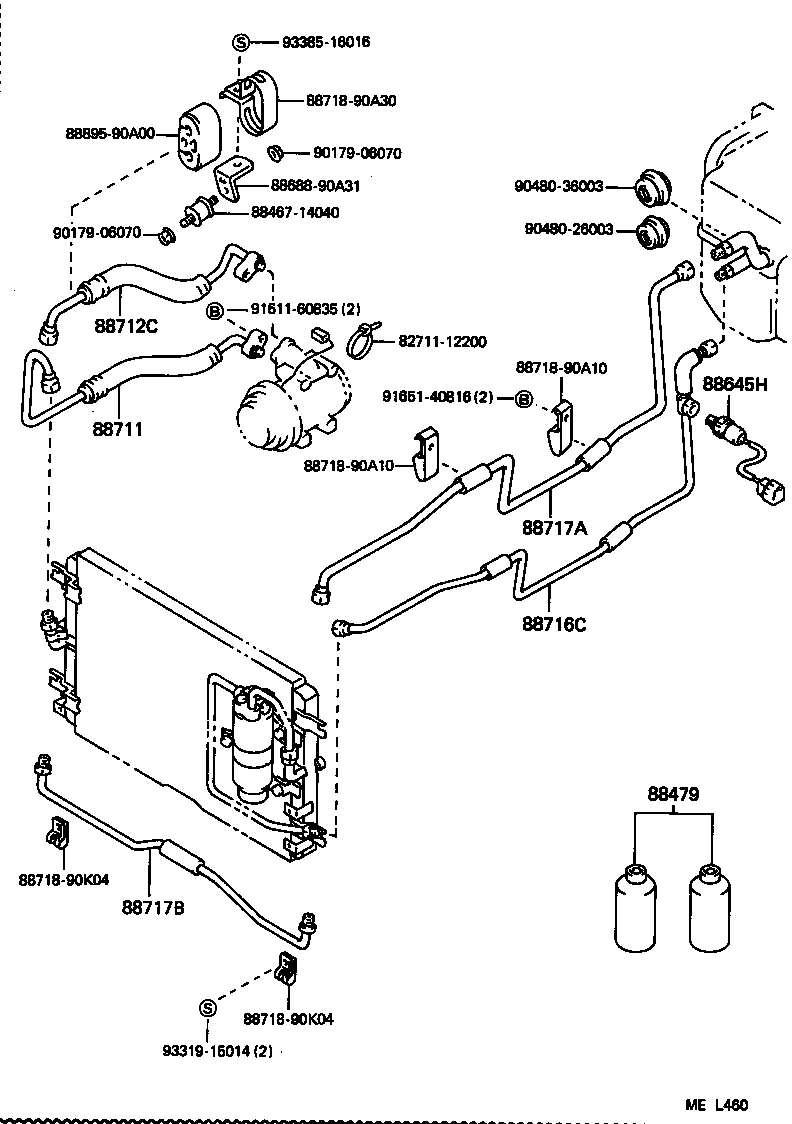

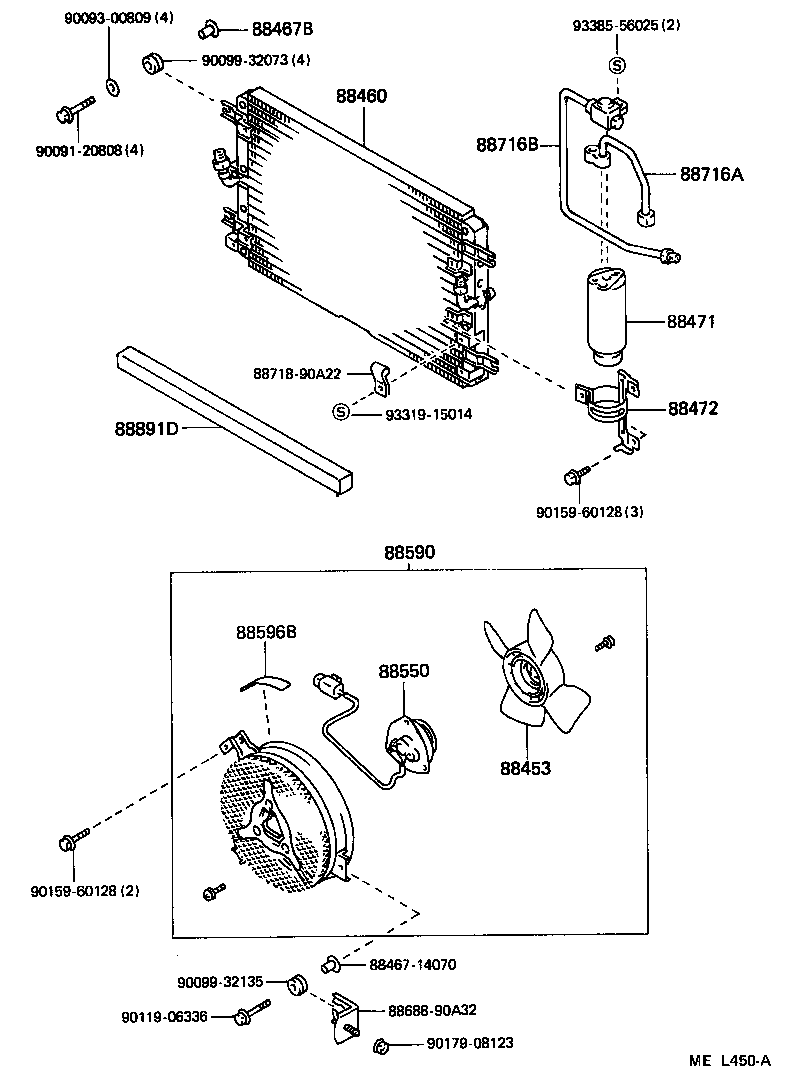

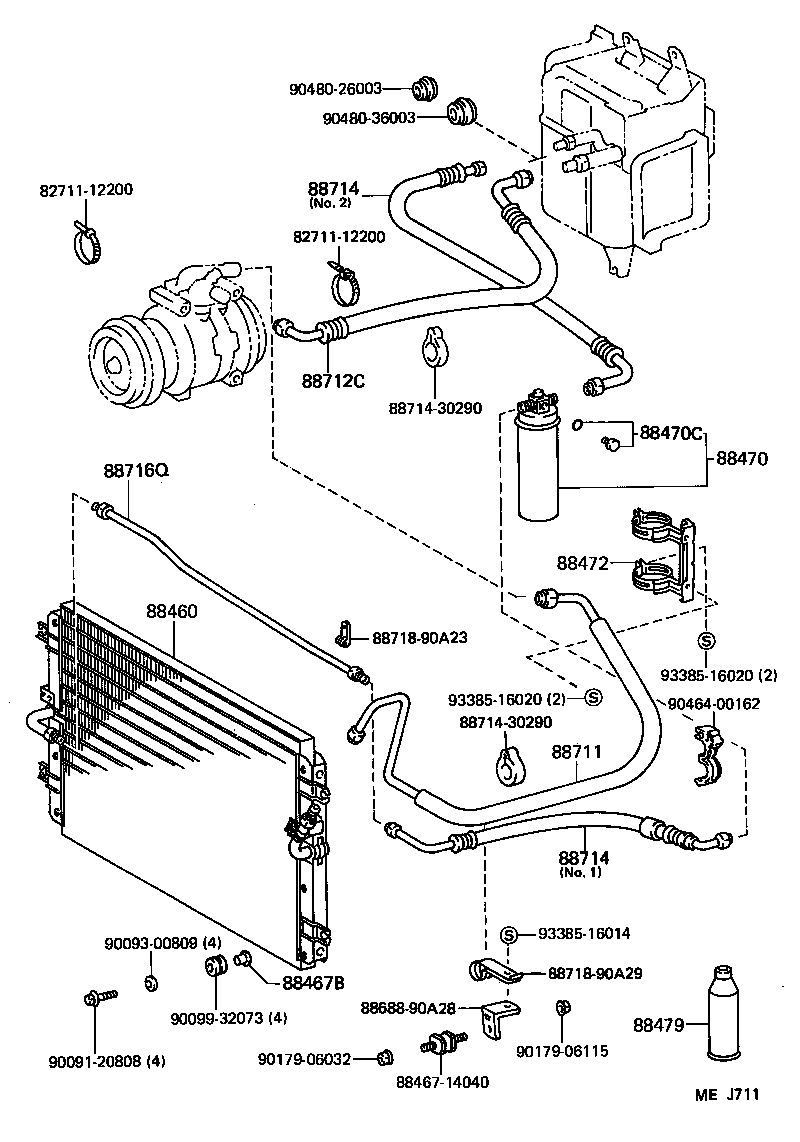

Heating & Air Conditioning - Cooler Piping
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88453 | Fan, Cooling (FOR CONDENSER) |
| 88460 | Condenser Assy, Cooler |
| 88467B | Insulator, Cooler Condenser Mounting |
| 88470 | Receiver & Dryer Assy, Cooler |
| 88470C | Bolt, Fuse |
| 88471 | Tank, Receiver Air Conditioner |
| 88472 | Bracket, Receiver Tank, NO.1 |
| 88479 | Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT) |
| 88550 | Motor Assy, Blower (FOR CONDENSER) |
| 88590 | Blower Assy, W/Shroud |
| 88596B | Plate, Caution, NO.1 |
| 88645H | Switch, Pressure NO.1 |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88712C | Hose, Suction |
| 88714 | Hose, Cooler Refrigerant Liquid, NO.1 |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88716B | Pipe, Cooler Refrigerant Liquid, B |
| 88716C | Pipe, Cooler Refrigerant Liquid, C |
| 88716Q | Pipe, Cooler Refrigerant Liquid, Q |
| 88717A | Pipe, Cooler Refrigerant Suction, A |
| 88717B | Pipe, Cooler Refrigerant Suction, B |
| 88891D | Packing D (FOR COOLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
