Toyota Land Cruiser Van
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ81,HZJ81 · catalogue 791140 · Japan
Discontinued model
Data version 1998-01

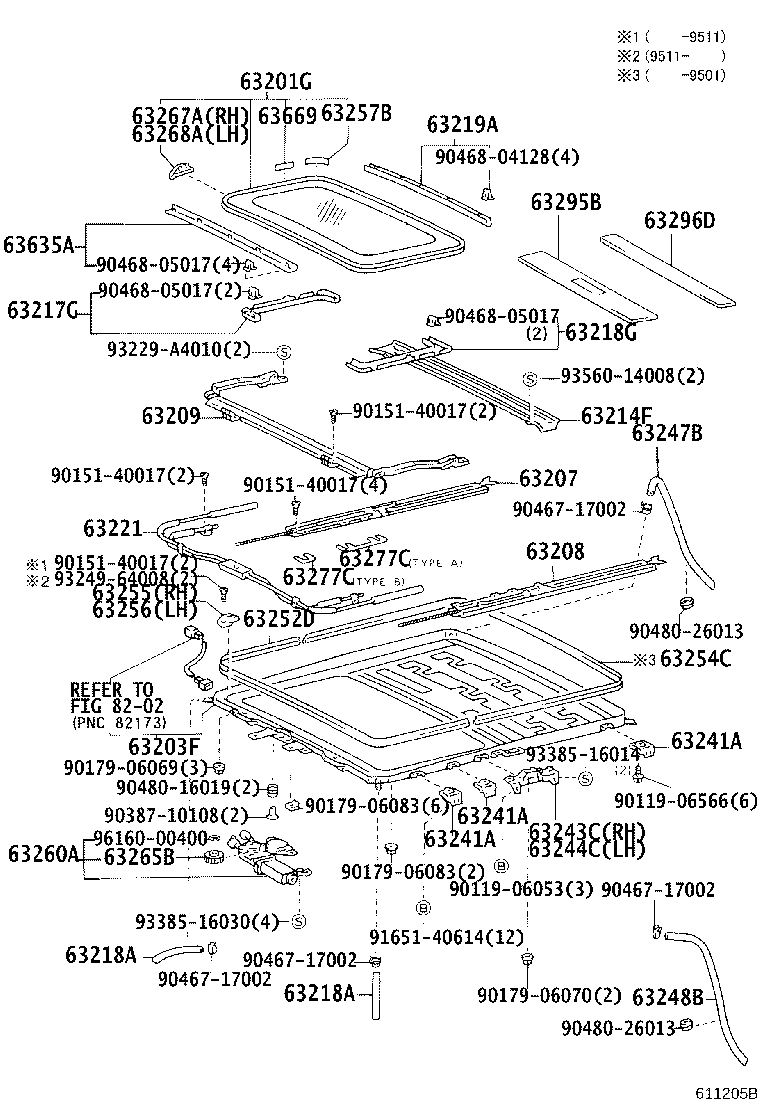

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63201G — Glass Sub-assy, Sliding Roof | ||||
| 63201-60020 note |
Glass Sub-assy, Sliding Roof
1990-01 → 1990-08
ended
|
FJ80,HDJ81,HZJ81 LUB | ¥55,800 | |
| 63201-60021 note |
Glass Sub-assy, Sliding Roof
1990-08 → 1995-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥55,800 | |
| 63201-60022 note |
Glass Sub-assy, Sliding Roof
1995-01 → 1996-07
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥0 | |
| 63201-60023 note |
Glass Sub-assy, Sliding Roof
1996-07 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥55,800 | |
| 63203F — Housing Sub-assy, Sliding Roof | ||||
| 63203-60010 |
Housing Sub-assy, Sliding Roof
1990-01 → 1992-05
ended
|
FJ80,HDJ81,HZJ81 LUB | ¥33,000 | |
| 63203-60011 |
Housing Sub-assy, Sliding Roof
1992-05 → 1993-12
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥33,000 | |
| 63203-60012 |
Housing Sub-assy, Sliding Roof
1993-12 → 1994-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥51,100 | |
| 63203-60013 |
Housing Sub-assy, Sliding Roof
1994-01 → 1994-09
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥51,100 | |
| 63203-60014 |
Housing Sub-assy, Sliding Roof
1994-09 → 1995-11
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥51,100 | |
| 63203-60015 |
Housing Sub-assy, Sliding Roof
1995-11 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥51,400 | |
| 63207 — Rail Sub-assy, Sliding Roof Guide, RH | ||||
| 63603-60010 |
Rail Sub-assy, Sliding Roof Guide, RH
1990-01 → 1992-05
ended
|
FJ80,HDJ81,HZJ81 LUB | ¥30,000 | |
| 63603-60011 |
Rail Sub-assy, Sliding Roof Guide, RH
1992-05 → 1993-12
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥30,000 | |
| 63603-60013 |
Rail Sub-assy, Sliding Roof Guide, RH
1993-12 → 1994-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | — | |
| 63603-60014 |
Rail Sub-assy, Sliding Roof Guide, RH
1994-01 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥29,600 | |
| 63208 — Rail Sub-assy, Sliding Roof Guide, LH | ||||
| 63604-60010 |
Rail Sub-assy, Sliding Roof Guide, LH
1990-01 → 1992-05
ended
|
FJ80,HDJ81,HZJ81 LUB | ¥30,000 | |
| 63604-60011 |
Rail Sub-assy, Sliding Roof Guide, LH
1992-05 → 1993-12
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥30,000 | |
| 63604-60013 |
Rail Sub-assy, Sliding Roof Guide, LH
1993-12 → 1994-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | — | |
| 63604-60014 |
Rail Sub-assy, Sliding Roof Guide, LH
1994-01 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥29,600 | |
| 63209 — Panel Sub-assy, Roof Wind Deflector | ||||
| 63209-60010 |
Panel Sub-assy, Roof Wind Deflector
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥12,900 | |
| 63214F — Channel, Roof Drip, Rear | ||||
| 61029-60010 |
Channel, Roof Drip, Rear
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥7,500 | |
| 63217G — Garnish, Sliding Roof Side, RH | ||||
| 63217-60010-03 note |
Garnish, Sliding Roof Side, RH
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥3,110 | |
| 63217-60010-03 note |
Garnish, Sliding Roof Side, RH
1995-01 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥3,110 | |
| 63217-60010-06 note |
Garnish, Sliding Roof Side, RH
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥3,110 | |
| 63217-60010-A0 note |
Garnish, Sliding Roof Side, RH
1996-05 → 1996-07
ended
|
HDJ81 VXL | ¥3,110 | |
| 63218A — Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63238-60010 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1995-11 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥2,100 | |
| 63238-60010 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1995-03 → 1995-11
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥2,100 | |
| 63238-60010 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1993-01 → 1995-11
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥2,100 | |
| 63249-60010 note |
Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
1990-01 → 1992-08
ended
|
FJ80,HDJ81,HZJ81 LUB | ¥2,090 | |
| 63218G — Garnish, Sliding Roof Side, LH | ||||
| 63218-60010-03 note |
Garnish, Sliding Roof Side, LH
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥3,110 | |
| 63218-60010-03 note |
Garnish, Sliding Roof Side, LH
1995-01 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥3,110 | |
| 63218-60010-06 note |
Garnish, Sliding Roof Side, LH
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥3,110 | |
| 63218-60010-A0 note |
Garnish, Sliding Roof Side, LH
1996-05 → 1996-07
ended
|
HDJ81 VXL | ¥3,110 | |
| 63219A — Garnish, Sliding Roof, Rear | ||||
| 63219-60010-03 note |
Garnish, Sliding Roof, Rear
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥2,410 | |
| 63219-60010-03 note |
Garnish, Sliding Roof, Rear
1995-01 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥2,410 | |
| 63219-60010-06 note |
Garnish, Sliding Roof, Rear
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥2,410 | |
| 63219-60010-A0 note |
Garnish, Sliding Roof, Rear
1996-05 → 1996-07
ended
|
HDJ81 VXL | ¥2,410 | |
| 63221 — Casing, Sliding Roof Cable Guide | ||||
| 63221-60010 |
Casing, Sliding Roof Cable Guide
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥10,300 | |
| 63241A — Bracket, Sliding Roof Housing Front Mounting, RH | ||||
| 63241-60010 |
Bracket, Sliding Roof Housing Front Mounting, RH
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥740 | |
| 63243C — Bracket, Sliding Roof Housing Center Mounting, RH | ||||
| 63243-60010 |
Bracket, Sliding Roof Housing Center Mounting, RH
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥1,140 | |
| 63244C — Bracket, Sliding Roof Housing Center Mounting, LH | ||||
| 63244-60010 |
Bracket, Sliding Roof Housing Center Mounting, LH
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥1,140 | |
| 63247B — Hose, Sliding Roof | ||||
| 63247-60010 |
Hose, Sliding Roof
1990-01 → 1994-09
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥2,320 | |
| 63247-60011 |
Hose, Sliding Roof
1994-09 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥2,330 | |
| 63248B — Hose, Sliding Roof | ||||
| 63248-60020 |
Hose, Sliding Roof
1990-01 → 1994-09
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥2,320 | |
| 63248-60021 |
Hose, Sliding Roof
1994-09 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥2,330 | |
| 63252D — Weatherstrip, Sliding Roof Housing | ||||
| 63252-60010 |
Weatherstrip, Sliding Roof Housing
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥9,800 | |
| 63254C — Weatherstrip, Slide Roof, Rear | ||||
| 63254-60010 |
Weatherstrip, Slide Roof, Rear
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥8,700 | |
| 63255 — Cover, Sliding Roof Guide Rail, RH | ||||
| 63255-60010 |
Cover, Sliding Roof Guide Rail, RH
1990-01 → 1995-11
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥680 | |
| 63255-60011 |
Cover, Sliding Roof Guide Rail, RH
1995-11 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥710 | |
| 63256 — Cover, Sliding Roof Guide Rail, LH | ||||
| 63256-60010 |
Cover, Sliding Roof Guide Rail, LH
1990-01 → 1995-11
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥680 | |
| 63256-60011 |
Cover, Sliding Roof Guide Rail, LH
1995-11 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥710 | |
| 63257B — Seal, Sliding Roof | ||||
| 63257-60010 |
Seal, Sliding Roof
1990-08 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥200 | |
| 63260A — Gear Sub-assy, Sliding Roof Drive | ||||
| 63260-60010 |
Gear Sub-assy, Sliding Roof Drive
1990-01 → 1991-06
ended
|
FJ80,HDJ81,HZJ81 LUB | ¥47,100 | |
| 63260-60011 |
Gear Sub-assy, Sliding Roof Drive
1991-06 → 1992-01
ended
|
FJ80,HDJ81,HZJ81 LUB | ¥46,700 | |
| 63260-60012 |
Gear Sub-assy, Sliding Roof Drive
1992-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥46,800 | |
| 63265B — Gear, Sliding Roof Drive | ||||
| 63265-20010 |
Gear, Sliding Roof Drive
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥1,600 | |
| 63267A — Protector, Sliding Roof Weatherstrip, RH | ||||
| 63267-60010 |
Protector, Sliding Roof Weatherstrip, RH
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥280 | |
| 63268A — Protector, Sliding Roof Weatherstrip, LH | ||||
| 63268-60010 |
Protector, Sliding Roof Weatherstrip, LH
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥280 | |
| 63277C — Shim, Sliding Roof Panel | ||||
| 63277-20020 note |
Shim, Sliding Roof Panel
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥740 | |
| 63277-20030 note |
Shim, Sliding Roof Panel
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥280 | |
| 63277-20040 note |
Shim, Sliding Roof Panel
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥740 | |
| 63277-20050 note |
Shim, Sliding Roof Panel
1990-01 → 1998-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥240 | |
| 63295B — Pad, Roof Wind Deflector Panel | ||||
| 63295-60010 |
Pad, Roof Wind Deflector Panel
1994-05 → 1995-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥2,130 | |
| 63296D — Pad, Sliding Roof Housing, NO.2 | ||||
| 63296-60010 |
Pad, Sliding Roof Housing, NO.2
1994-05 → 1995-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥1,260 | |
| 63635A — Garnish, Sliding Roof, Front | ||||
| 63635-60010-03 note |
Garnish, Sliding Roof, Front
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥2,230 | |
| 63635-60010-03 note |
Garnish, Sliding Roof, Front
1995-01 → 1998-01
ended
|
FZJ80,HDJ81,HZJ81 LUB | ¥2,230 | |
| 63635-60010-06 note |
Garnish, Sliding Roof, Front
1990-01 → 1995-01
ended
|
FJ80,FZJ80,HDJ81,HZJ81 LUB | ¥2,230 | |
| 63635-60010-A0 note |
Garnish, Sliding Roof, Front
1996-05 → 1996-07
ended
|
HDJ81 VXL | ¥2,230 | |
| 63669 — Cushion, Roof Protector | ||||
| 63669-32010 |
Cushion, Roof Protector
1996-08 → 1998-01
ended
|
FZJ80,HDJ81 LUB | ¥570 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
