Toyota Land Cruiser Van

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ81,HZJ81 · catalogue 791140 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

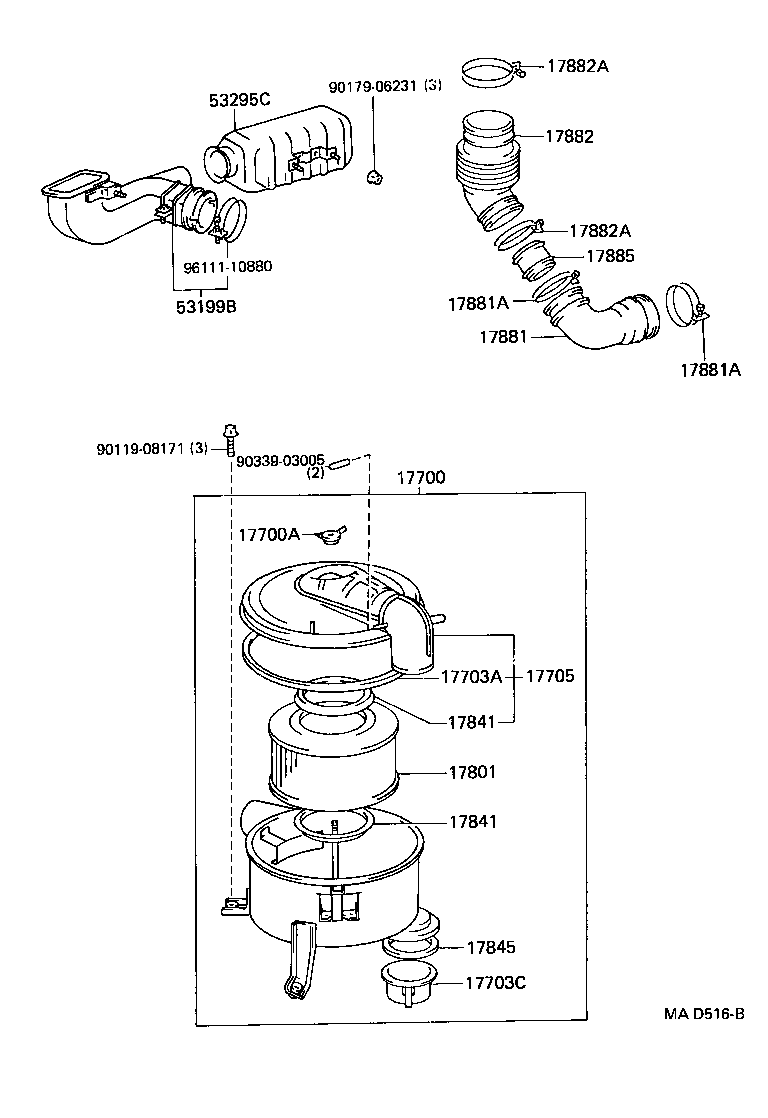

Exploded illustration MAD516B 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (8 parts) 9017906231 — not listed in this catalogue 53295C — SILENCER, COOL AIR INTAKE (3 parts) 17882 — HOSE, AIR CLEANER, NO.2 (4 parts) 17882A — CLAMP(FOR AIR CLEANER HOSE, NO.2) (8 parts) 17885 — PIPE, AIR CLEANER (1 parts) 9611110880 — not listed in this catalogue 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (4 parts) 53199B — DUCT SUB-ASSY, COOL AIR INTAKE (4 parts) 17881 — HOSE, AIR CLEANER, NO.1 (3 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (4 parts) 9011908171 — not listed in this catalogue 9033903005 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (10 parts) 17700A — NUT, WING(FOR AIR CLEANER) (2 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (9 parts) 17703A — GASKET(FOR BOTTOM AIR CLEANER FILTER CASE) (2 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (4 parts) 17841 — GASKET, FILTER ELEMENT (2 parts) 17845 — GASKET, AIR CLEANER CAP (4 parts) 17703C — CAP SUB-ASSY, DUST (4 parts)
MAD516B · 18 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-17020 Cleaner Assy, Air
1990-01 → 1993-08 ended
1HZ HZJ81 ¥51,900
17700-17021 Cleaner Assy, Air
1993-08 → 1995-01 ended
1HZ HZJ81 ¥35,000
17700-17022 Cleaner Assy, Air
1995-01 → 1998-01 ended
1HZ HZJ81 ¥35,100
17700-17040 Cleaner Assy, Air
1990-01 → 1993-08 ended
1HDT HDJ81 ¥51,900
17700-17041 Cleaner Assy, Air
1993-08 → 1995-01 ended
1HDT HDJ81 ¥51,900
17700-17180 Cleaner Assy, Air
1995-01 → 1998-01 ended
1HDFT HDJ81 ¥35,100
17700-17190 note Cleaner Assy, Air
1996-08 → 1998-01 ended
1HDFT HDJ81 ¥35,100
17700-61250 Cleaner Assy, Air
1990-01 → 1992-08 ended
3FE FJ80 ¥31,400
17700-66080 Cleaner Assy, Air
1992-08 → 1995-01 ended
1FZFE FZJ80 ¥38,700
17700-66140 Cleaner Assy, Air
1995-01 → 1998-01 ended
1FZFE FZJ80 ¥35,100
17700A — Nut, Wing(FOR AIR CLEANER)
90175-08008 Nut, Wing(FOR AIR CLEANER)
1990-01 → 1998-01 ended
1HD#,1HZ HDJ81,HZJ81 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
1990-01 → 1998-01 ended
1FZFE,3FE FJ80,FZJ80 —
17703A — Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
17845-61011 Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1990-01 → 1998-01 ended
1HD#,1HZ HDJ81,HZJ81 —
17845-68030 Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
1992-08 → 1998-01 ended
1FZFE FZJ80 —
17703C — Cap Sub-assy, Dust
17703-17010 Cap Sub-assy, Dust
1995-01 → 1998-01 ended
1HDFT HDJ81 —
17703-66010 Cap Sub-assy, Dust
1992-08 → 1995-01 ended
1FZFE FZJ80 —
17703-66020 Cap Sub-assy, Dust
1995-01 → 1998-01 ended
1FZFE FZJ80 —
17703-68010 Cap Sub-assy, Dust
1990-01 → 1995-01 ended
1H# HDJ81,HZJ81 —
17705 — Cap Sub-assy, Air Cleaner
17705-17010 Cap Sub-assy, Air Cleaner
1990-01 → 1993-08 ended
1HDT HDJ81 —
17705-17020 Cap Sub-assy, Air Cleaner
1990-01 → 1993-08 ended
1HZ HZJ81 —
17705-17090 Cap Sub-assy, Air Cleaner
1993-08 → 1998-01 ended
1HZ HZJ81 —
17705-17100 Cap Sub-assy, Air Cleaner
1993-08 → 1995-01 ended
1HDT HDJ81 —
17705-17120 Cap Sub-assy, Air Cleaner
1995-01 → 1998-01 ended
1HDFT HDJ81 —
17705-17130 note Cap Sub-assy, Air Cleaner
1996-08 → 1998-01 ended
1HDFT HDJ81 —
17705-61180 Cap Sub-assy, Air Cleaner
1990-01 → 1992-08 ended
3FE FJ80 —
17705-66070 Cap Sub-assy, Air Cleaner
1992-08 → 1995-01 ended
1FZFE FZJ80 —
17705-66110 Cap Sub-assy, Air Cleaner
1995-01 → 1998-01 ended
1FZFE FZJ80 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-66030 Element Sub-assy, Air Cleaner Filter
1992-08 → 1998-01 ended
1FZFE FZJ80 ¥4,410
17801-68020 Element Sub-assy, Air Cleaner Filter
1990-01 → 1998-01 ended
3FE FJ80 ¥3,990
17801-68020 Element Sub-assy, Air Cleaner Filter
1990-01 → 1998-01 ended
1HZ HZJ81 ¥3,990
17801-68030 Element Sub-assy, Air Cleaner Filter
1990-01 → 1998-01 ended
1HD# HDJ81 ¥5,100
17841 — Gasket, Filter Element
17841-68010 Gasket, Filter Element
1990-01 → 1998-01 ended
1FZFE,3FE FJ80,FZJ80 ¥0
17841-68010 Gasket, Filter Element
1990-01 → 1998-01 ended
1HD#,1HZ HDJ81,HZJ81 ¥0
17845 — Gasket, Air Cleaner Cap
17845-61011 Gasket, Air Cleaner Cap
1990-01 → 1998-01 ended
3FE FJ80 —
17845-68030 Gasket, Air Cleaner Cap
1990-01 → 1995-01 ended
1H# HDJ81,HZJ81 —
17845-68030 Gasket, Air Cleaner Cap
1995-01 → 1998-01 ended
1HDFT HDJ81 —
17845-61011 Gasket, Air Cleaner Cap
1992-08 → 1998-01 ended
1FZFE FZJ80 —
17881 — Hose, Air Cleaner, NO.1
17881-17010 Hose, Air Cleaner, NO.1
1990-01 → 1998-01 ended
1HD# HDJ81 ¥3,720
17881-17020 Hose, Air Cleaner, NO.1
1990-01 → 1998-01 ended
1HZ HZJ81 ¥4,510
17881-61110 Hose, Air Cleaner, NO.1
1990-01 → 1992-08 ended
3FE FJ80 ¥3,300
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-01 → 1998-01 ended
1HD# HDJ81 ¥410
96111-10800 note Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-01 → 1998-01 ended
1HD# HDJ81 ¥160
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-01 → 1998-01 ended
1HZ HZJ81 ¥160
96111-10900 Clamp(FOR AIR CLEANER HOSE, NO.1)
1990-01 → 1992-08 ended
3FE FJ80 ¥410
17882 — Hose, Air Cleaner, NO.2
17881-66060 Hose, Air Cleaner, NO.2
1992-08 → 1995-01 ended
1FZFE FZJ80 ¥6,700
17881-66080 Hose, Air Cleaner, NO.2
1995-01 → 1998-01 ended
1FZFE FZJ80 ¥7,200
17882-17010 Hose, Air Cleaner, NO.2
1990-01 → 1998-01 ended
1HD# HDJ81 ¥4,510
17882-61080 Hose, Air Cleaner, NO.2
1990-01 → 1992-08 ended
3FE FJ80 ¥4,500
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
96111-10780 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1990-01 → 1998-01 ended
1HD# HDJ81 ¥410
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1990-01 → 1993-05 ended
1FZFE FZJ80 ¥410
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1995-01 → 1998-01 ended
1FZFE FZJ80 ¥410
96111-10900 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1990-01 → 1998-01 ended
1HD# HDJ81 ¥410
96111-10900 Clamp(FOR AIR CLEANER HOSE, NO.2)
1993-05 → 1995-01 ended
1FZFE FZJ80 ¥410
96111-10900 Clamp(FOR AIR CLEANER HOSE, NO.2)
1990-01 → 1993-05 ended
3FE FJ80 ¥410
96111-10930 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1992-08 → 1993-05 ended
1FZFE FZJ80 ¥120
96111-10930 note Clamp(FOR AIR CLEANER HOSE, NO.2)
1995-01 → 1998-01 ended
1FZFE FZJ80 ¥120
17885 — Pipe, Air Cleaner
17885-17010 Pipe, Air Cleaner
1990-01 → 1998-01 ended
1HD# HDJ81 ¥1,140
53199B — Duct Sub-assy, Cool Air Intake
53207-60010 Duct Sub-assy, Cool Air Intake
1990-01 → 1992-08 ended
FJ80 ¥3,680
53207-60030 Duct Sub-assy, Cool Air Intake
1990-01 → 1992-08 ended
HDJ81,HZJ81 ¥3,680
53207-60101 Duct Sub-assy, Cool Air Intake
1992-08 → 1998-01 ended
FZJ80 ¥5,800
53207-60101 Duct Sub-assy, Cool Air Intake
1992-08 → 1998-01 ended
HDJ81,HZJ81 ¥5,800
53295C — Silencer, Cool Air Intake
53295-60010 Silencer, Cool Air Intake
1990-01 → 1998-01 ended
FZJ80 ¥3,620
53295-60010 Silencer, Cool Air Intake
1990-01 → 1998-01 ended
HZJ81 ¥3,620
53295-60020 Silencer, Cool Air Intake
1990-01 → 1998-01 ended
HDJ81 ¥3,720
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
