Toyota Land Cruiser Van
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ81,HZJ81 · catalogue 791140 · Japan
Discontinued model
Data version 1998-01
Cylinder Block

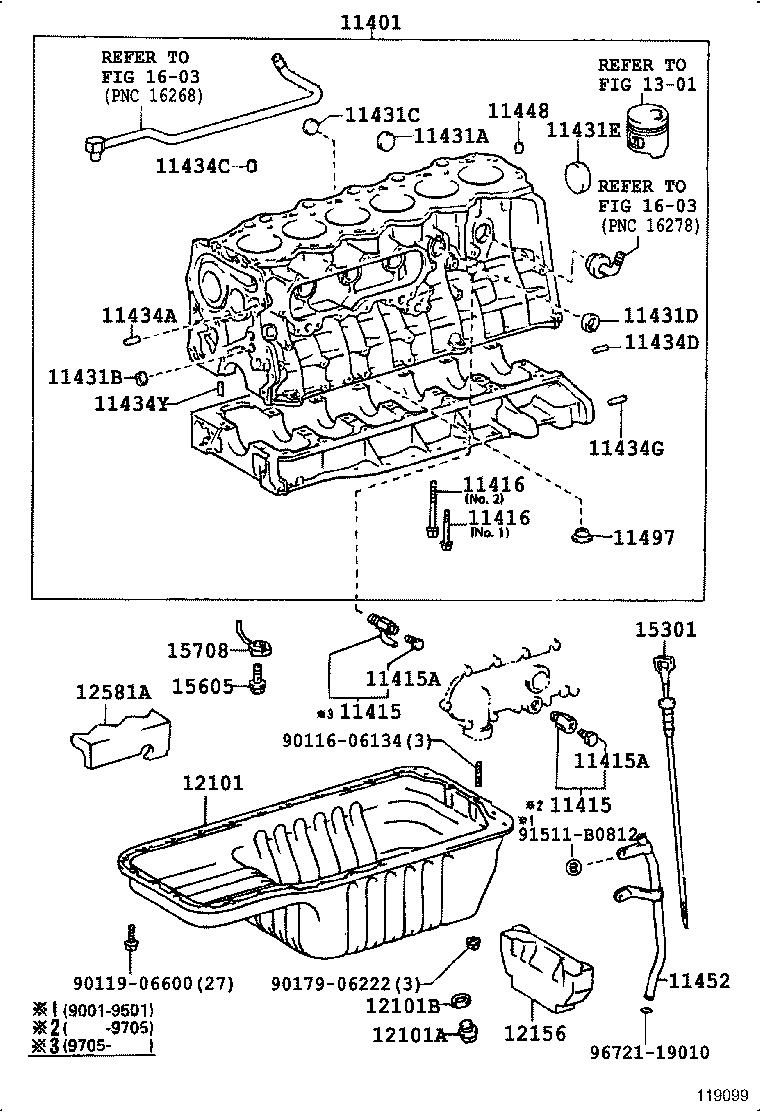

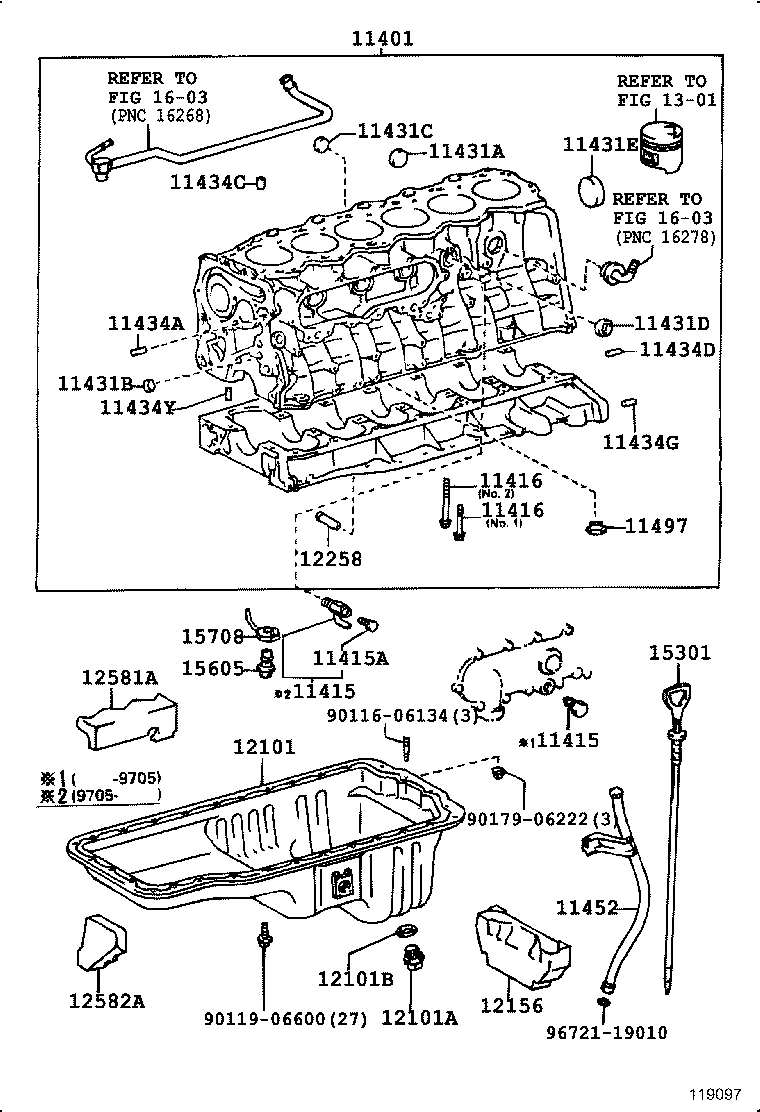

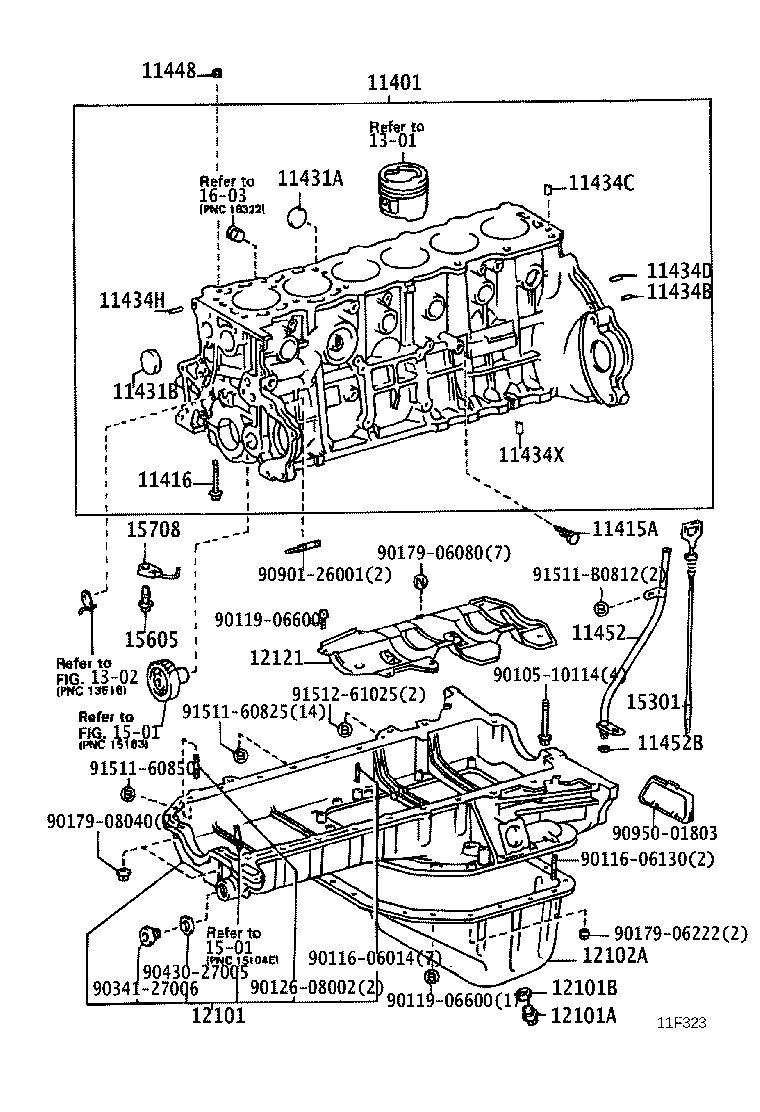

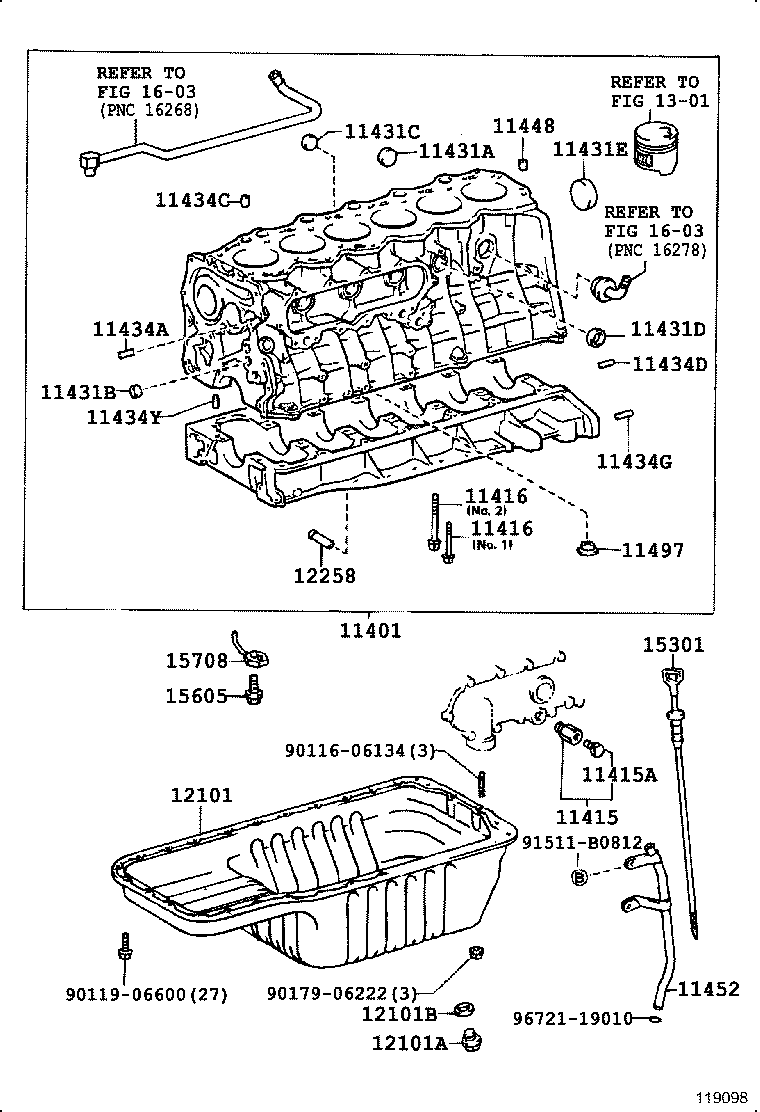

41 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11251 | Cover, Valve Push Rod |
| 11251E | Bolt, Stud(FOR VALVE PUSH ROD COVER) |
| 11253 | Gasket, Valve Push Rod Cover |
| 11272 | Cover, Cylinder Block Side, NO.2 |
| 11272A | Gasket, Cylinder Block Side Cover, NO.2 |
| 11401 | Block Sub-assy, Cylinder |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11416A | Pin, Ring(FOR CRANKSHAFT BEARING CAP SET) |
| 11417 | Nozzle, Oil |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11431C | Plug, Tight, NO.3(FOR CYLINDER BLOCK) |
| 11431D | Plug, Tight, NO.4(FOR CYLINDER BLOCK) |
| 11431E | Plug, Tight, NO.5(FOR CYLINDER BLOCK) |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434G | Pin, Straight(FOR END PLATE) |
| 11434H | Pin, Ring (FOR TIMING BELT COVER SET) |
| 11434X | Pin, Ring(FOR CHAIN CACE) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11448 | Orifice, Cylinder Block Oil |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 11497 | Gasket, Cylinder Block Oil Hole |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 12151 | Gasket, Oil Pan |
| 12156 | Insulator, Oil Pan |
| 12258 | Pipe, Oil Return |
| 12581A | Insulator, Cylinder Block, NO.1 |
| 12582A | Insulator, Cylinder Block, NO.2 |
| 15301 | Gage Sub-assy, Oil Level |
| 15605 | Valve Sub-assy, Oil Check |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
