Toyota Land Cruiser Van

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ81,HZJ81 · catalogue 791140 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 2 illustrations

Illustrations

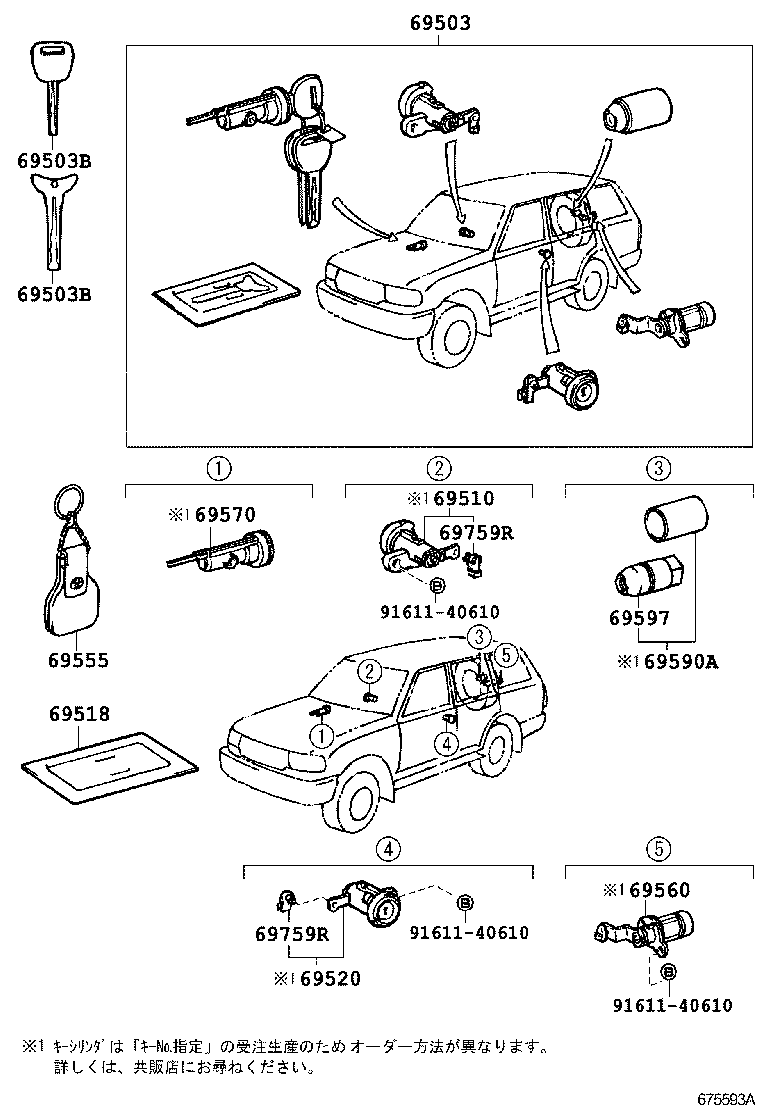

Figure 675592A 675592A 1990-01 → — Figure 675593A 675593A 1990-01 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69503B Key, Cut
69510 Cylinder Assy, Front Door Lock, RH
69518 Card, Spare Key
69520 Cylinder Assy, Front Door Lock, LH
69555 Cover, Key
69560 Cylinder Assy, Back Door Lock
69561B Retainer, Back Door Lock Cylinder
69570 Cylinder Assy, Ignition Switch Lock
69590A Cylinder Assy, Spare Wheel Lock
69597 Nut, Spare Wheel Lock
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
