Toyota Land Cruiser Van

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ81,HZJ81 · catalogue 791140 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

23 part groups · 3 illustrations

Illustrations

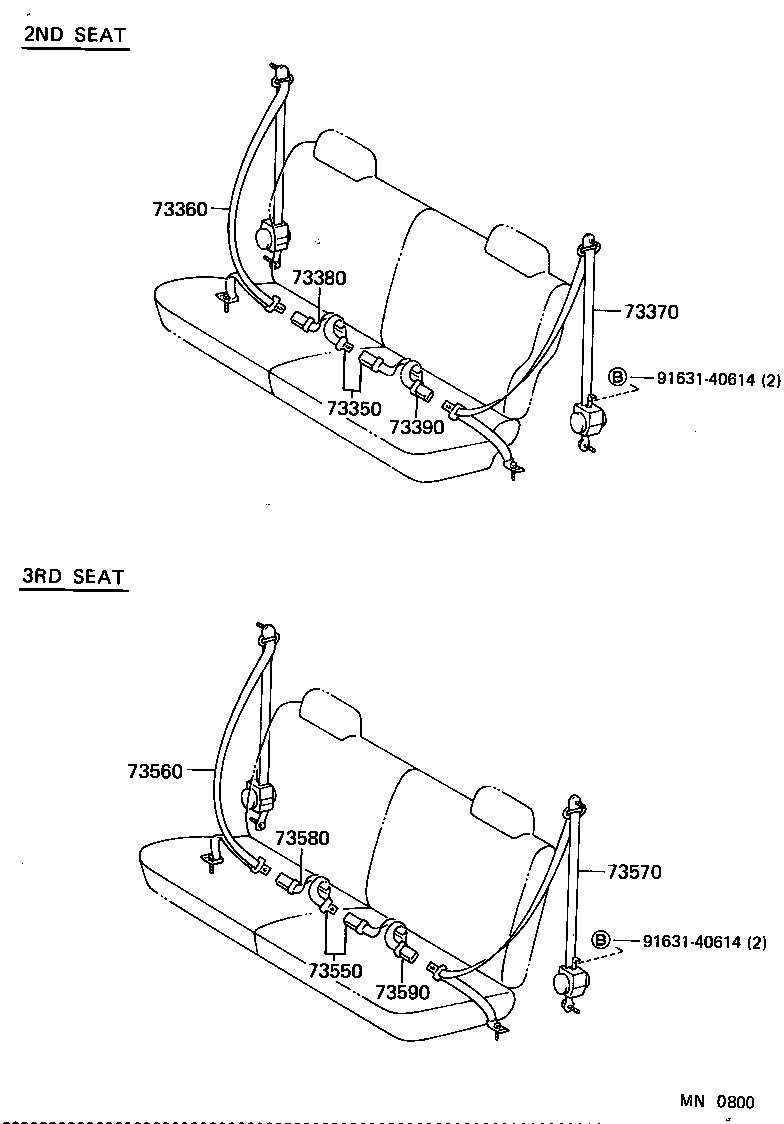

Figure MN0793D MN0793D 1990-01 → — Figure MN0798 MN0798 1990-01 → 1991-08 Figure MN0800 MN0800 1991-08 → —

Part groups

PNCDescription
73198A Cover, Front Seat Belt Inner Anchor, RH
73199 Cover, Front Seat Belt Inner Anchor, LH
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252 Cover, Shoulder Belt Anchor Adjust, RH
73253 Cover, Shoulder Belt Anchor Adjust, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73530A Belt Assy, Rear NO.2 Seat Lap Type, RH
73540A Belt Assy, Rear NO.2 Seat Lap Type, LH
73550 Belt Assy, Rear NO.2 Seat Lap Type, Center
73560 Belt Assy, Rear NO.2 Seat, Outer RH
73570 Belt Assy, Rear NO.2 Seat, Outer LH
73580 Belt Assy, Rear NO.2 Seat, Inner RH
73590 Belt Assy, Rear NO.2 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
