Toyota Land Cruiser Van
1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ81,HZJ81 · catalogue 791140 · Japan
Discontinued model
Data version 1998-01
Mirror

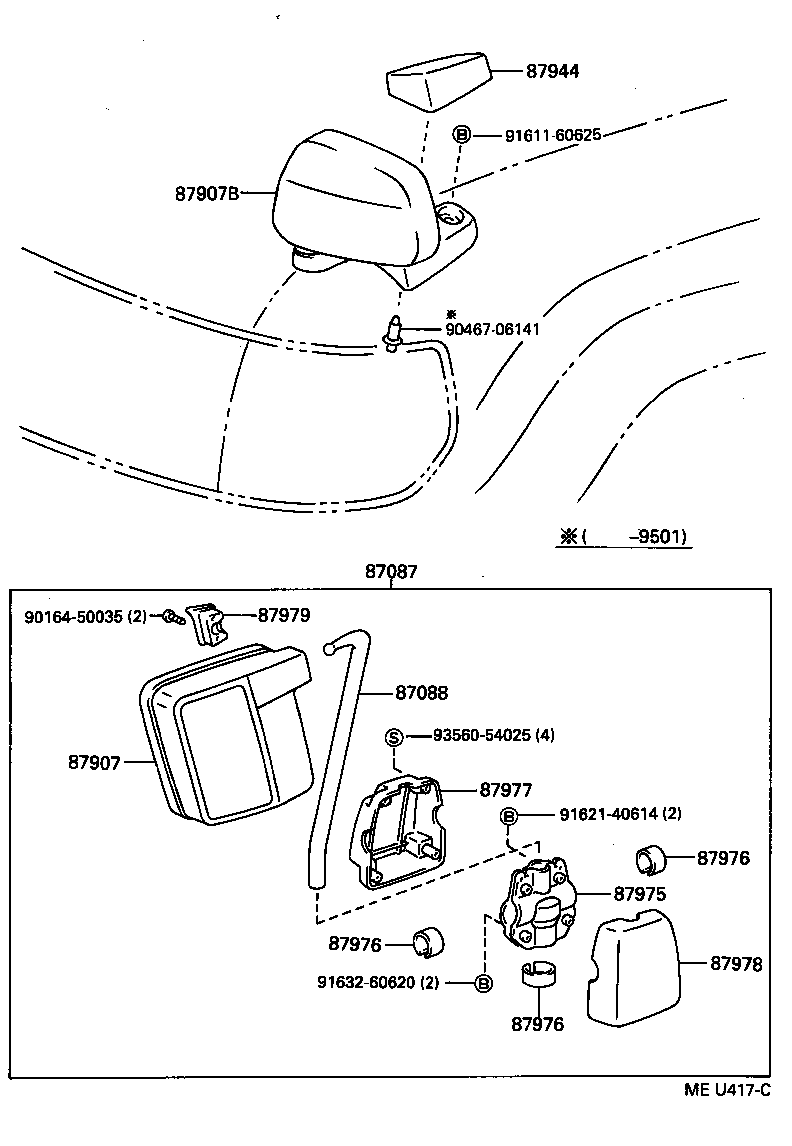

23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87087 | Mirror Set, Outer Under Rear View |
| 87088 | Arm Sub-assy, Outer Under Rear View Mirror |
| 87810 | Mirror Assy, Inner Rear View |
| 87816 | Spring, Inner Rear View Mirror |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87902A | Arm Sub-assy, Outer Rear View Mirror, RH |
| 87905A | Arm Sub-assy, Outer Rear View Mirror, LH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87907 | Mirror Sub-assy, Outer Under View |
| 87907B | Device Sub-assy,Front Fender Side View,LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87911 | Gasket, Outer Rear View Mirror, RH |
| 87917B | Mirror, Outer Rear View, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87941 | Gasket, Outer Rear View Mirror, LH |
| 87944 | Cover, Front Fender Side View Device, LH |
| 87947B | Mirror, Outer Rear View, LH |
| 87975 | Bracket, Outer Under Rear View Mirror |
| 87976 | Cusion Outer Under Rear View |
| 87977 | Cover, Outer Under Rear View Mirror, Front |
| 87978 | Cover, Outer Under Rear View Mirror, Rear |
| 87979 | Cap, Outer Under Rear View Mirror |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
