Toyota Land Cruiser Van

1990-01 → 1998-01 · chassis FJ80,FZJ80,HDJ81,HZJ81 · catalogue 791140 · Japan

Discontinued model Data version 1998-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

13 part groups · 4 illustrations

Illustrations

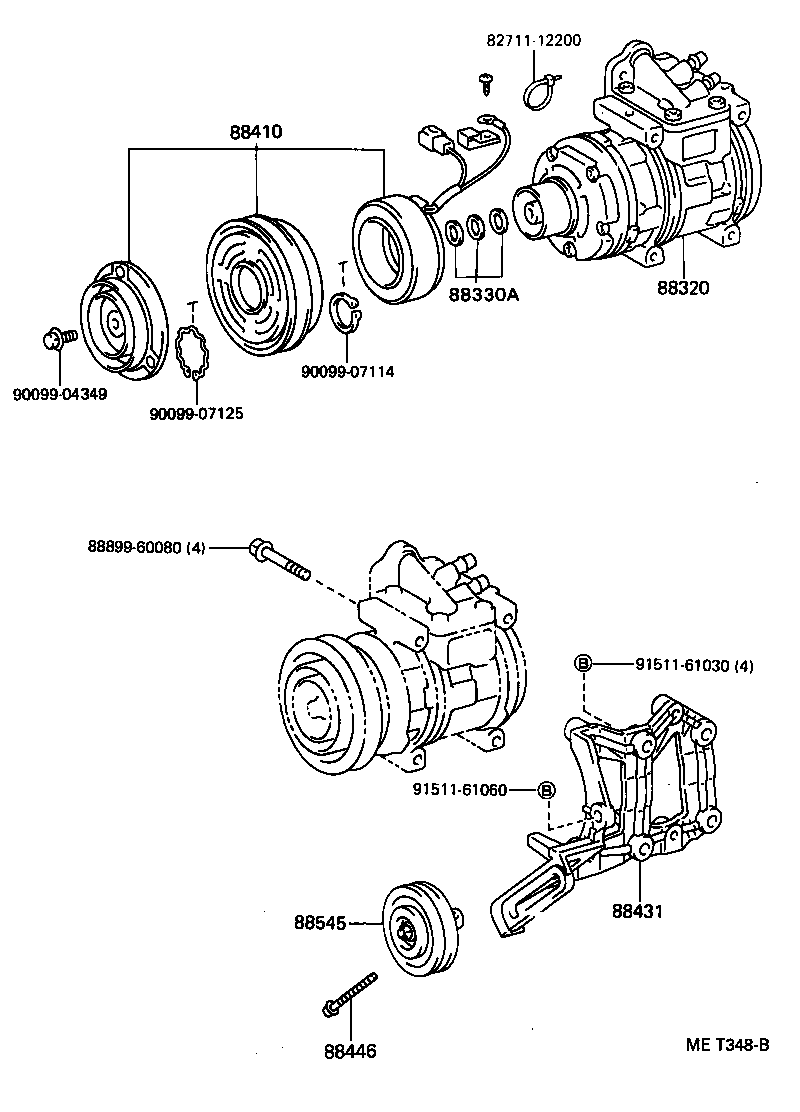

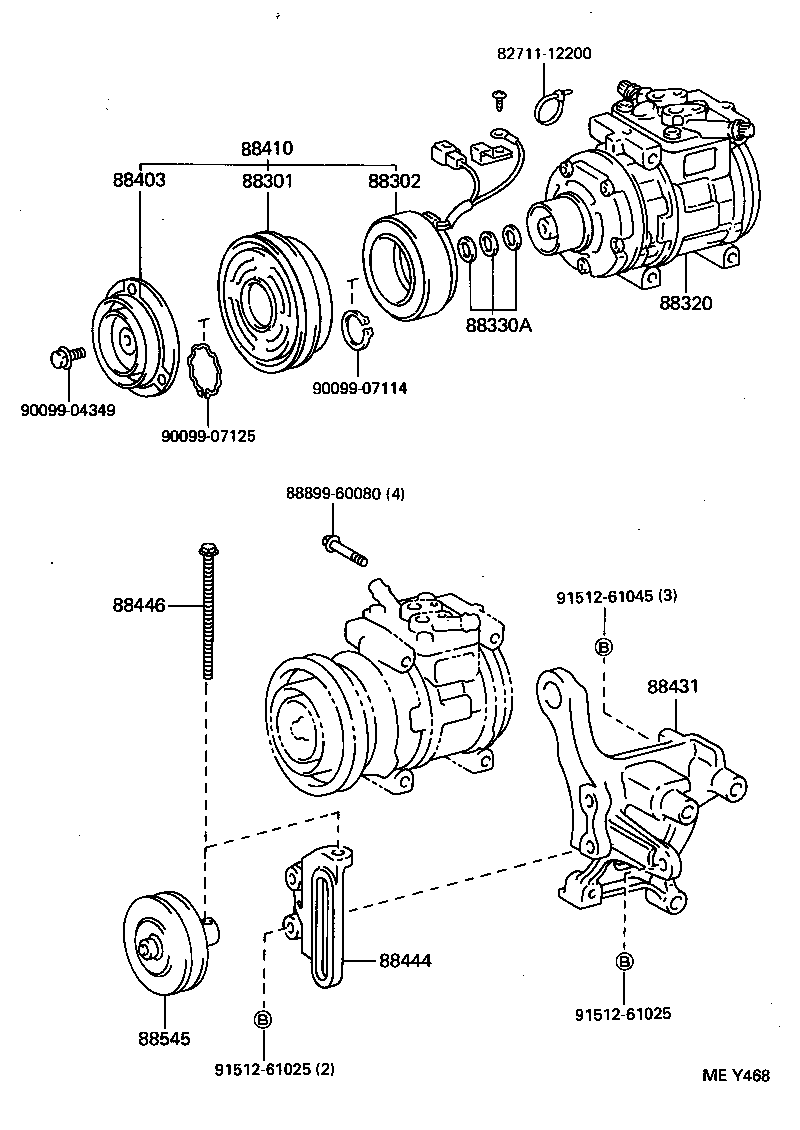

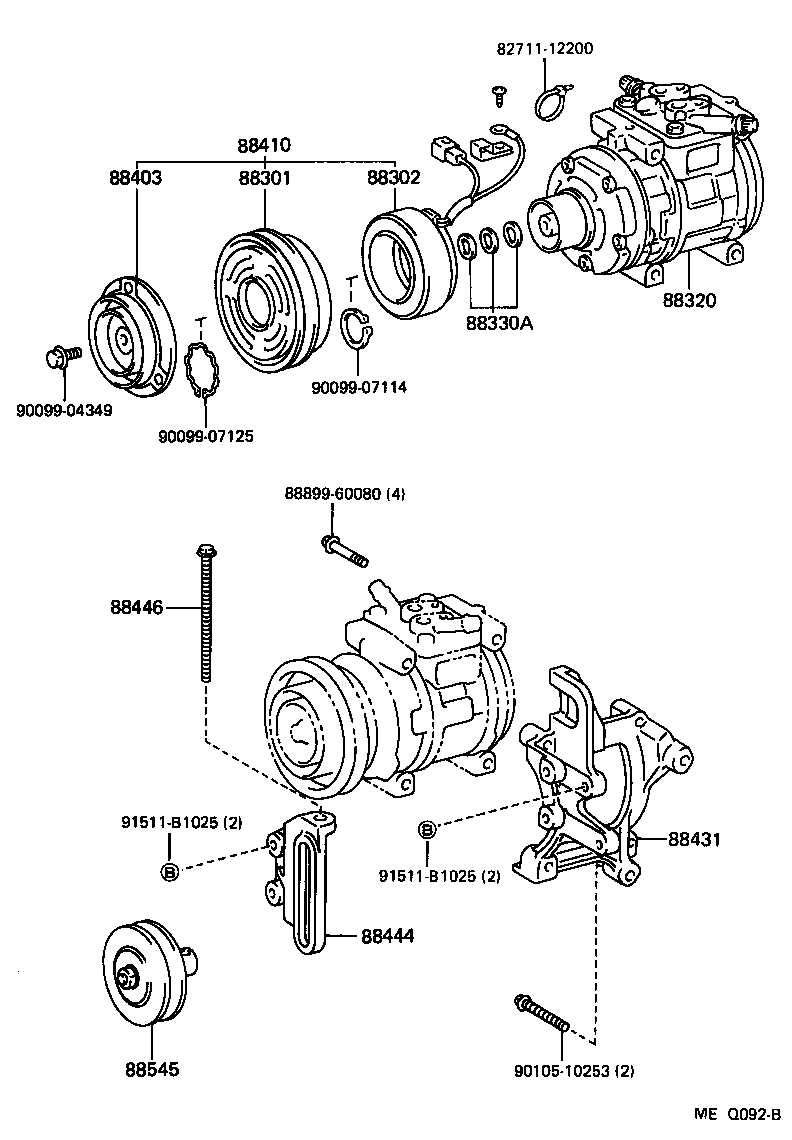

Figure MEQ091C MEQ091C 1990-01 → 1992-08 Figure MET348B MET348B 1992-08 → — Figure MEQ092B MEQ092B 1990-01 → 1995-01 Figure MEY468 MEY468 1995-01 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88415A Cover, Dust
88431 Bracket, Compressor Mounting, NO.1
88442 Shaft, Idle Pulley
88443 Collar, Idle Pulley
88444 Bracket, Idle Pulley
88446 Bolt, Idle Pulley
88545 Pulley Assy, Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
