Toyota Land Cruiser
1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan
Discontinued model
Data version 2008-04

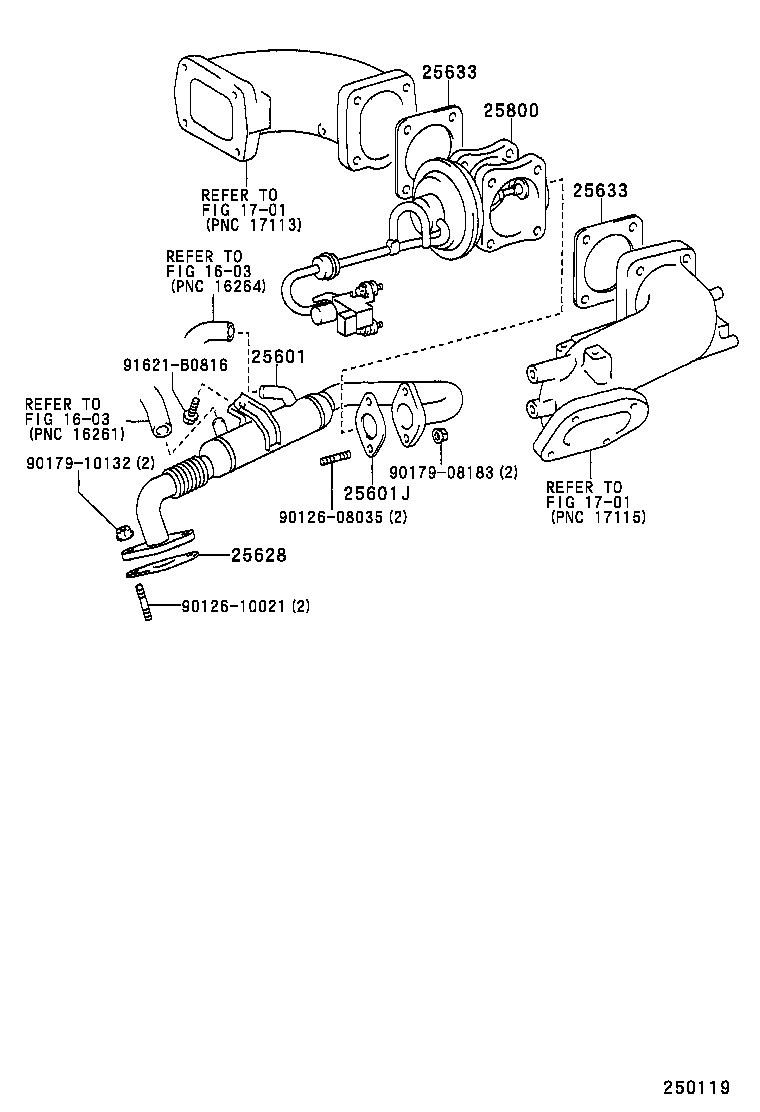

Exhaust Gas Recirculation System
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25601J | Gasket(FOR EGR PIPE, NO.1) |
| 25620 | Valve Assy, Egr |
| 25628 | Gasket, Egr Inlet |
| 25633 | Gasket, Egr Valve |
| 25800 | Valve Assy, Electric Egr Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
