Toyota Land Cruiser
1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan
Discontinued model
Data version 2008-04

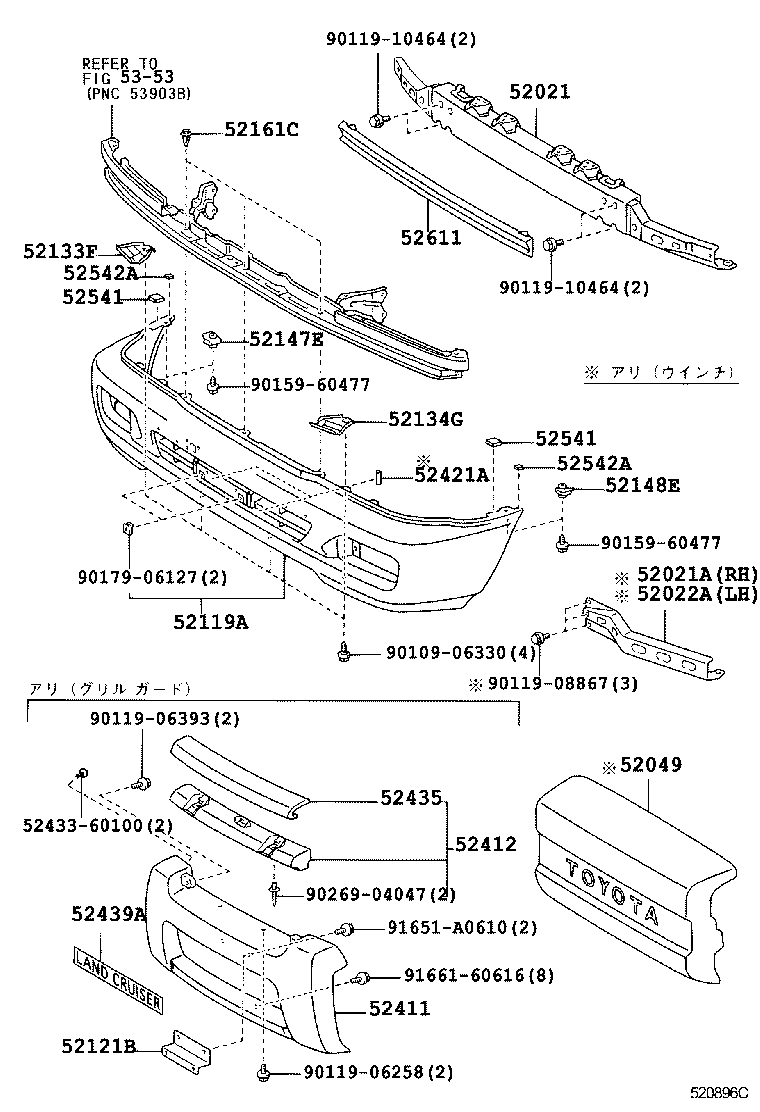

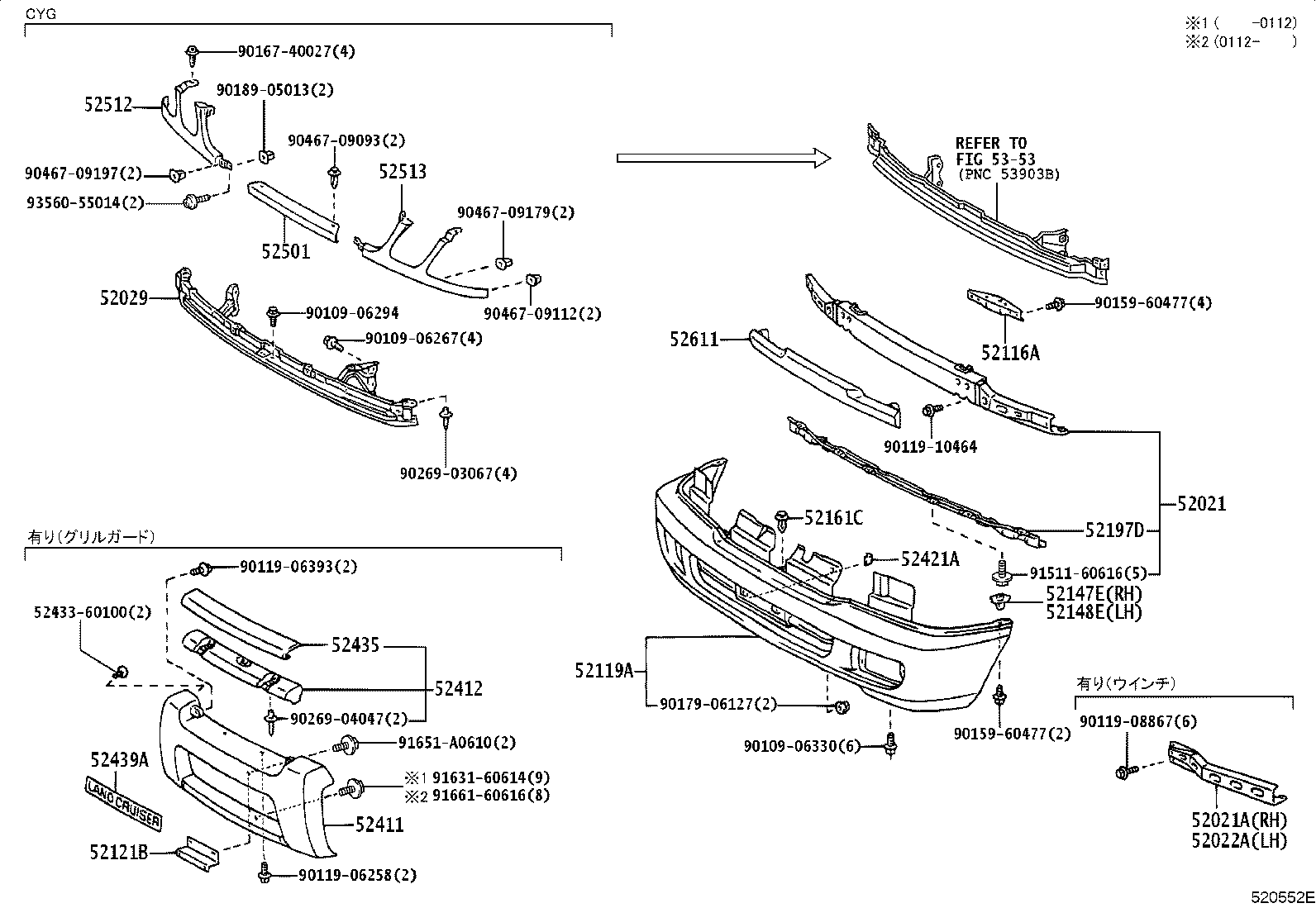

Front Bumper & Bumper Stay
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52021A | Reinforcement Sub-assy, Front Bumper, RH |
| 52022A | Reinforcement Sub-assy, Front Bumper, LH |
| 52029 | Reinforcement Sub-assy, Front Bumper, Upper |
| 52049 | Cover Sub-assy, Front Bumper Winch |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52121B | Bracket, Front Licence Plate Mounting |
| 52133F | Bracket, Front Bumper, RH |
| 52134G | Bracket, Front Bumper, LH |
| 52147E | Bracket, Front Bumper Mounting, RH |
| 52148E | Bracket, Front Bumper Mounting, LH |
| 52161C | Piece, Front Bumper |
| 52161N | Piece, Filler Sub-assy, Front Bumper |
| 52197D | Reinforcement, Front Bumper Arm |
| 52411 | Guard, Front Bumper |
| 52412 | Guard, Front Bumper, NO.2 |
| 52421A | Pad, Front Bumper |
| 52435 | Garnish, Front Bumper Guard |
| 52439A | Tape, Front Bumper Guard Prtector |
| 52501 | Filler Sub-assy, Front Bumper |
| 52512 | Filler, Front Bumper, RH |
| 52513 | Filler, Front Bumper, LH |
| 52541 | Protector, Front Bumper |
| 52542A | Protector, Front Bumper, NO.2 |
| 52543B | Seal, Front Bumper |
| 52611 | Absorber, Front Bumper Energy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
