Toyota Land Cruiser

1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

14 part groups · 2 illustrations

Illustrations

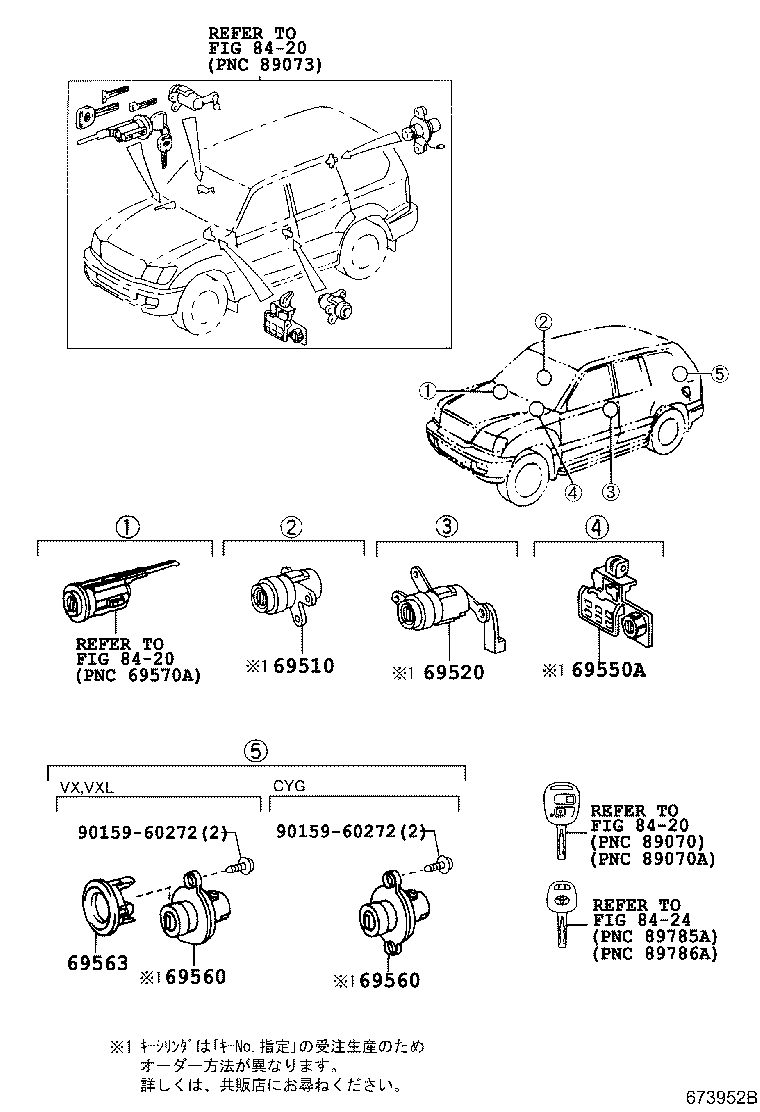

Figure 671260R 671260R 1998-01 → 2005-05 Figure 673952B 673952B 2005-05 → —

Part groups

PNCDescription
69503 Cylinder Set, Lock
69503B Key, Cut
69510 Cylinder Assy, Front Door Lock, RH
69513A Pad, Door Cylinder
69520 Cylinder Assy, Front Door Lock, LH
69550A Cylinder Assy, Glove Compartment Door Lock
69555 Cover, Key
69560 Cylinder Assy, Back Door Lock
69561B Retainer, Back Door Lock Cylinder
69563 Pad, Back Door Lock Cylinder
69570 Cylinder Assy, Ignition Switch Lock
69590A Cylinder Assy, Spare Wheel Lock
69597 Nut, Spare Wheel Lock
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
