Toyota Land Cruiser

1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

29 part groups · 2 illustrations

Illustrations

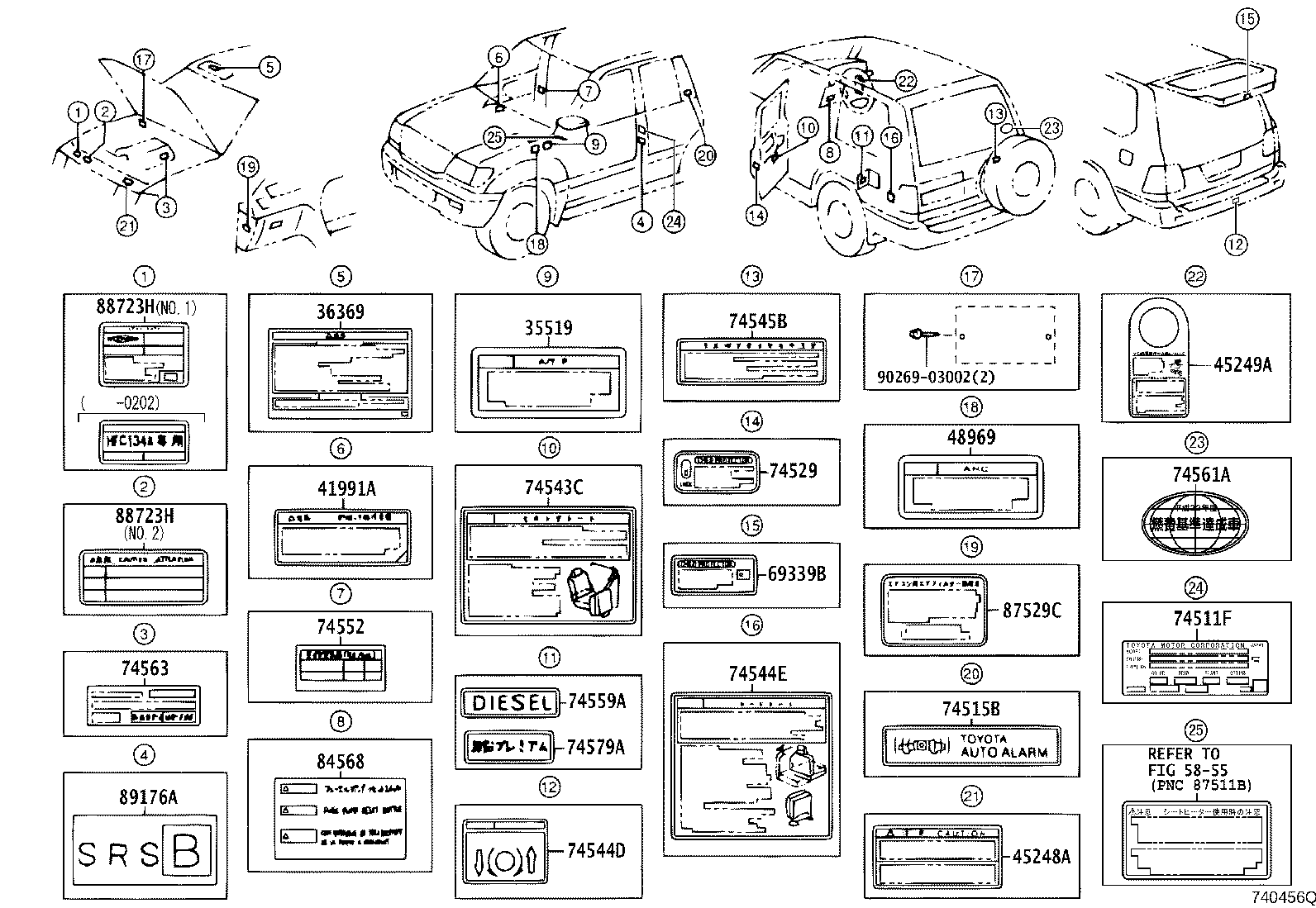

Figure 746151 746151 1998-01 → — Figure 740456Q 740456Q 1998-01 → —

Part groups

PNCDescription
11277A Plate, Engine Specification, NO.2
11291B Plate, Engine Name
11296D Label, Engine Service Information
11297C Label, Engine Service Information, NO.2
13564 Label, Timing Belt Replacement Information
17791A Label, Maintenance Information
35519 Plate, Automatic Transmission Caution
36369 Label, Transfer Information
41991A Plate, Caution
45248A Label, Steering Actuator Caution
45249A Label, Steering Actuator Information
48969 Label, Jack UP Caution
69339B Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74529 Plate, Child Proof OR Child Protector Lock Caution
74543C Label, Rear Seat Information
74544D Plate, Tire Carrier Caution
74544E Label, Rear NO.2 Seat Information
74545B Label, Tire Carrier Notice, NO.2
74552 Plate, Safety Caution
74559A Plate, Fuel Caution
74561A Label, Fuel Consumption Information
74563 Plate, Emission Control Device Identification
74579A Label, Unleaded Fuel Information
84568 Label, Fuel Pump Reset Switch Caution
87529C Label, Air Conditioner Filter Information
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
