Toyota Land Cruiser
1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan
Discontinued model
Data version 2008-04

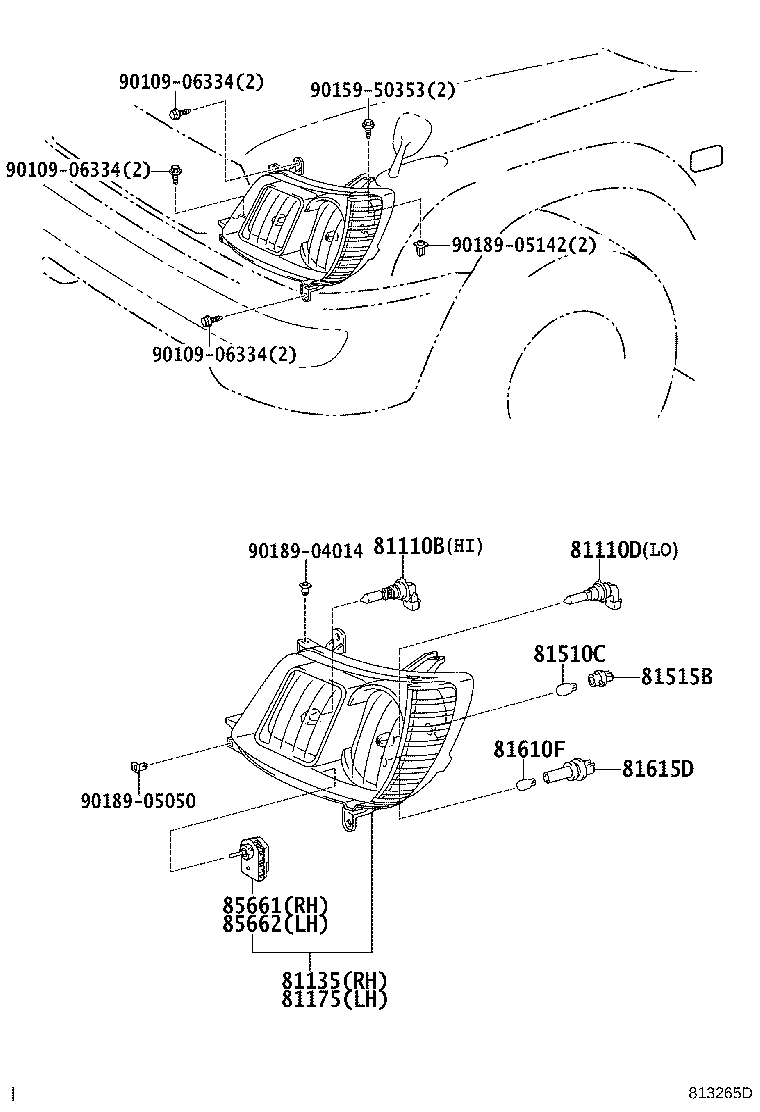

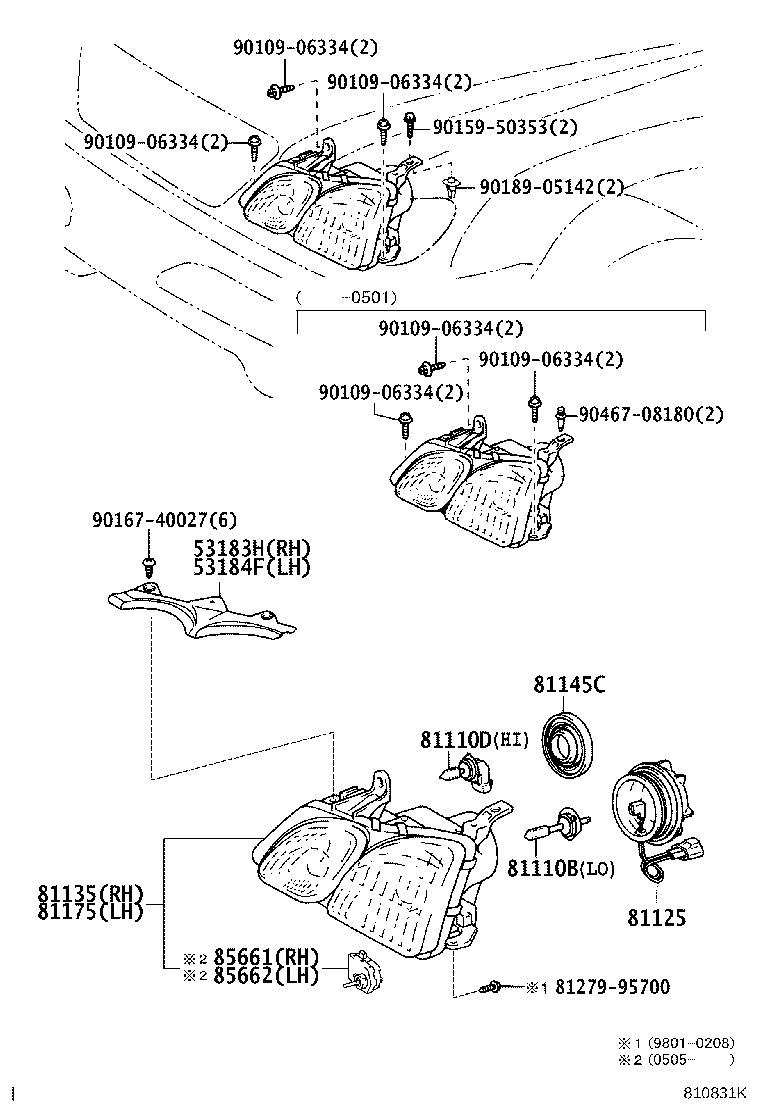

Headlamp
16 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53183H | Seal, Headlamp Cover, RH |
| 53184F | Seal, Headlamp Cover, LH |
| 81010 | Headlamp Assy, W/Clearance, RH |
| 81050 | Headlamp Assy, W/Clearance, LH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81125 | Cord, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81145C | Cover, Headlamp Socket, NO.2 |
| 81175 | Unit Assy, Headlamp, LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
