Toyota Land Cruiser

1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

10 part groups · 2 illustrations

Illustrations

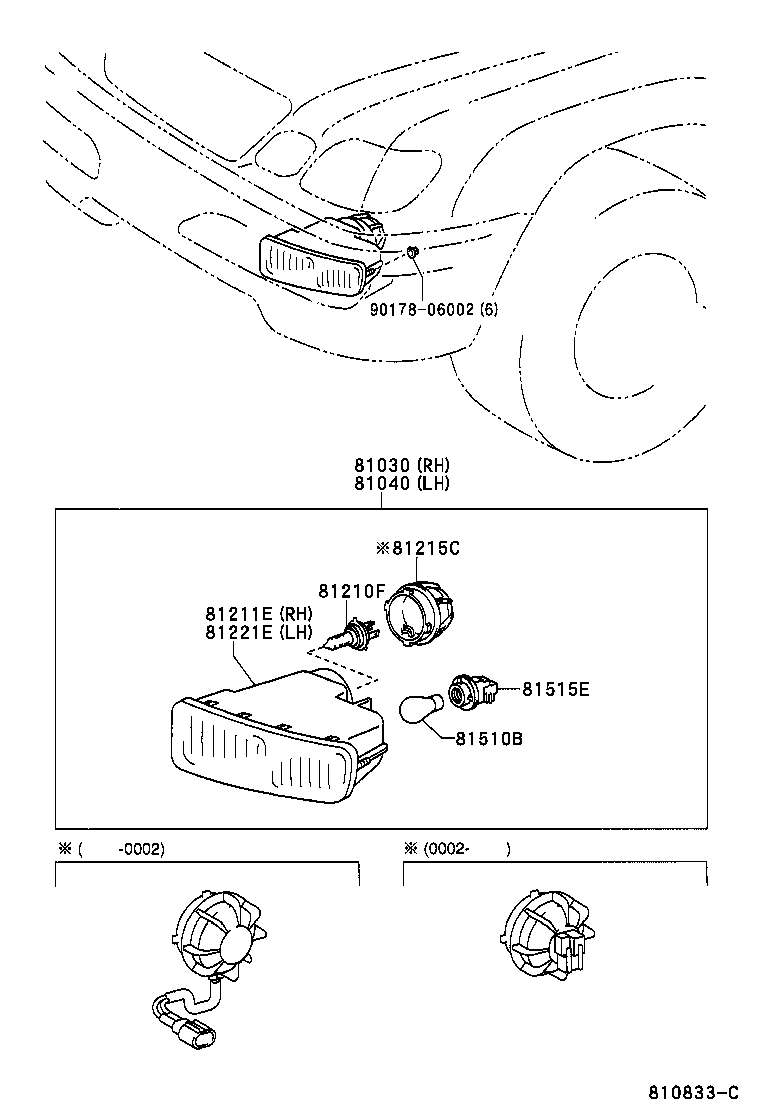

Figure 810832D 810832D 1998-01 → 2005-05 Figure 810833C 810833C 1999-01 → —

Part groups

PNCDescription
81030 Lamp Assy, Front Fog And Turn Signal, RH
81040 Lamp Assy, Front Fog And Turn Signal, LH
81210F Bulb, Fog Lamp
81211E Unit, Front Fog And Turn Signal Lamp, RH
81215C Cord, Front Fog And Turn Signal Lamp
81221E Unit, Front Fog And Turn Signal Lamp, LH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81513A Unit Assy, Front Turn Signal Lamp, RH
81515E Socket Plug Assy
81523A Unit Assy, Front Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
