Toyota Land Cruiser

1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

5 part groups · 2 illustrations

Illustrations

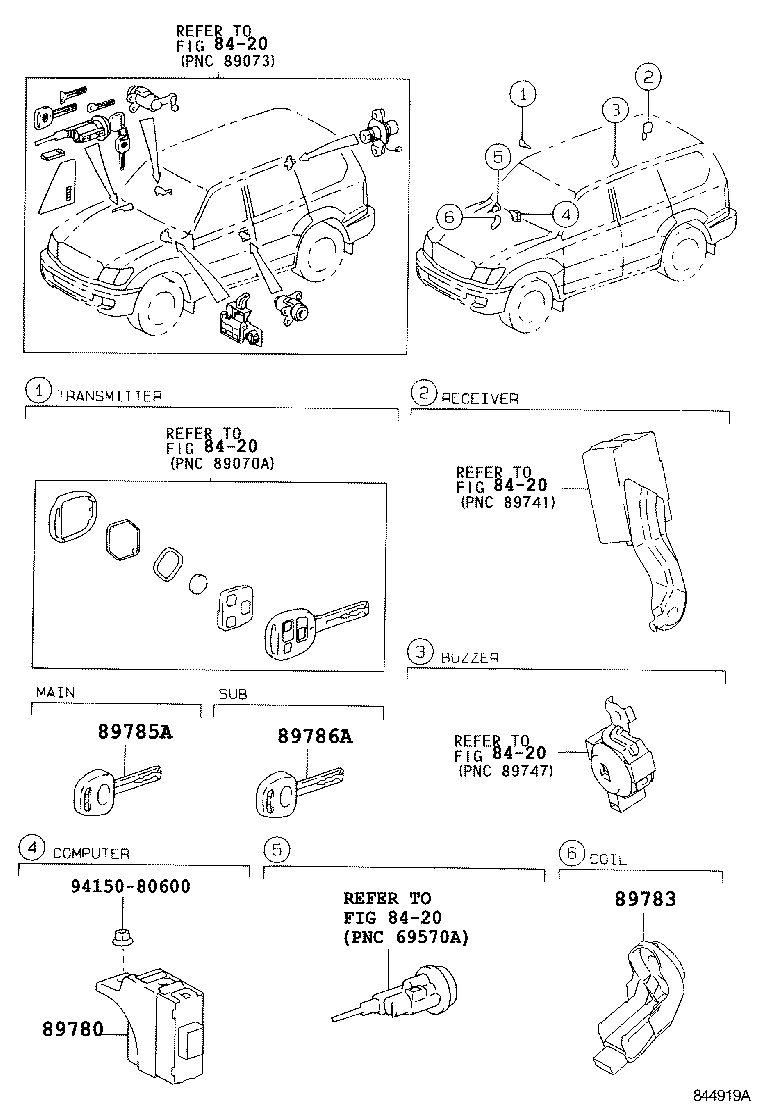

Figure 843563D 843563D 2000-05 → 2002-08 Figure 844919A 844919A 2002-08 → —

Part groups

PNCDescription
89780 Computer Assy, Transponder Key
89782 Coil, Transponder Key
89783 Amplifier, Transponder Key
89785A Transmitter, Transponder Cut Key Master
89786A Transmitter, Transponder Cut Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
