Toyota Land Cruiser

1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan

Discontinued model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

6 part groups · 2 illustrations

Illustrations

Figure 860634B

860634B 1998-01 → —

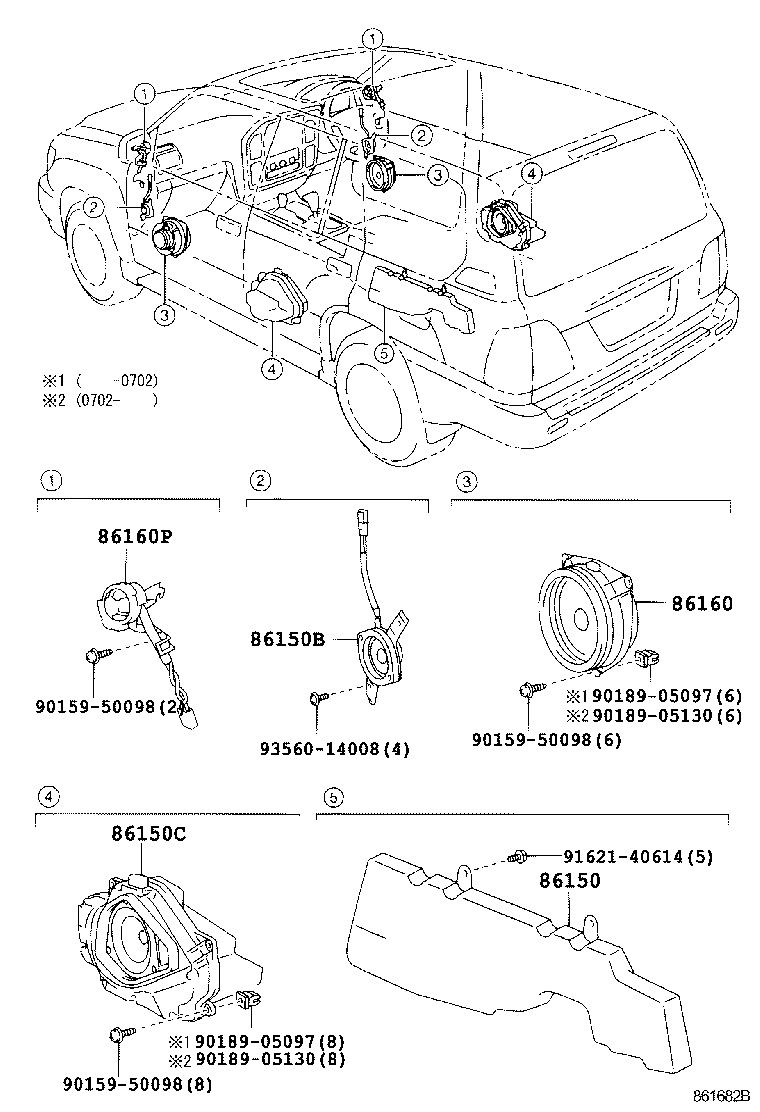

Figure 861682B

861682B 2002-08 → —

Part groups

PNC	Description
86150	Speaker Assy, W/Box, NO.1
86150B	Speaker Assy, W/Box, NO.2
86150C	Speaker Assy, W/Box, NO.3
86160	Speaker Assy, Front NO.1
86160B	Speaker Assy, Rear
86160P	Speaker Assy, Front NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
