Toyota Land Cruiser

1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan

Discontinued model Data version 2008-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

9 part groups · 3 illustrations

Illustrations

Figure 860640B

860640B 1998-01 → —

860786 1998-01 → 1999-07

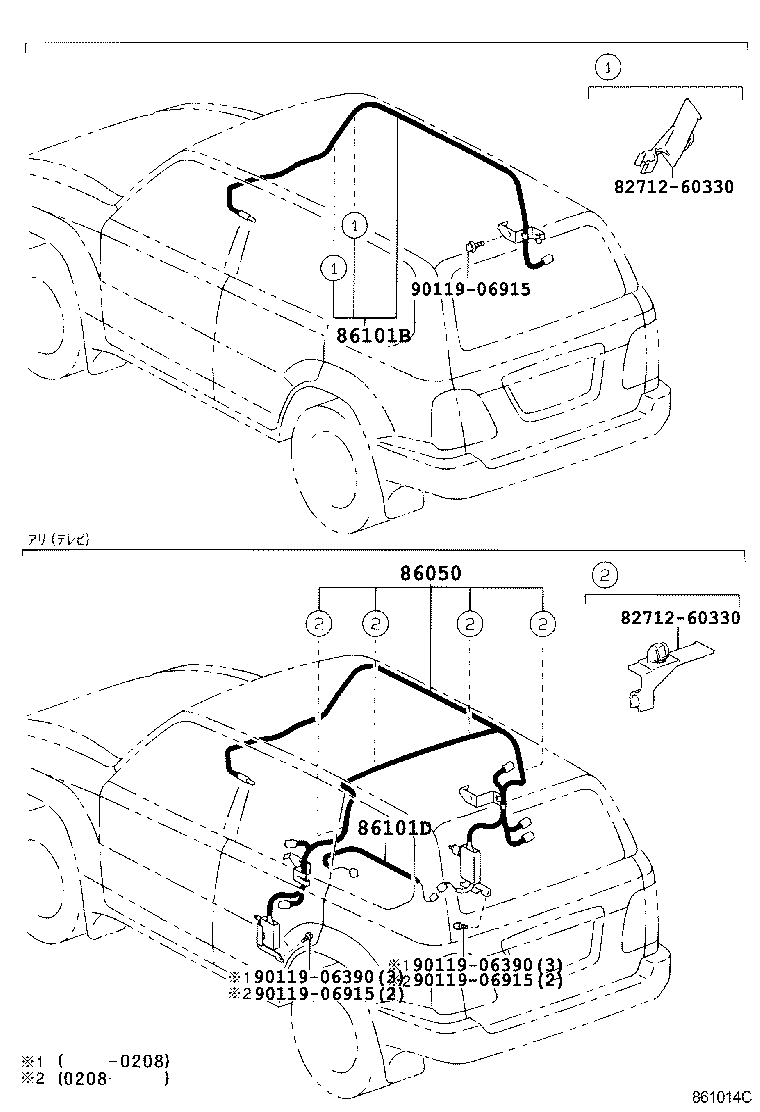

Figure 861014C

861014C 1999-07 → —

Part groups

PNC	Description
85914	Relay, Motor Antenna Control
86050	Antenna Assy, Television
86101	Cord Sub-assy, Antenna
86101B	Cover, Antenna Cord
86101D	Cord Sub-assy, Antenna, NO.3
86300	Antenna Assy, W/Holder
86337	Rod & Pipe, Sealed W/Cable
86392	Ornament, Antenna
86396	Nut, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
