Toyota Land Cruiser

1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan

Discontinued model Data version 2008-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

25 part groups · 3 illustrations

Illustrations

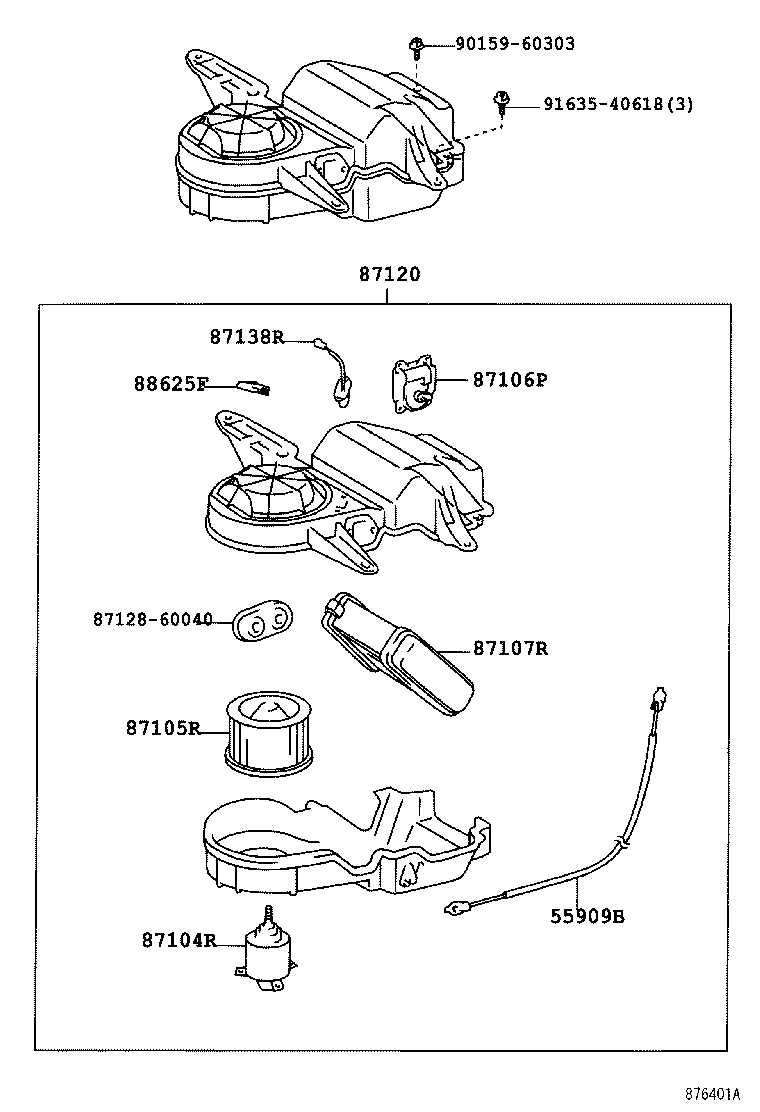

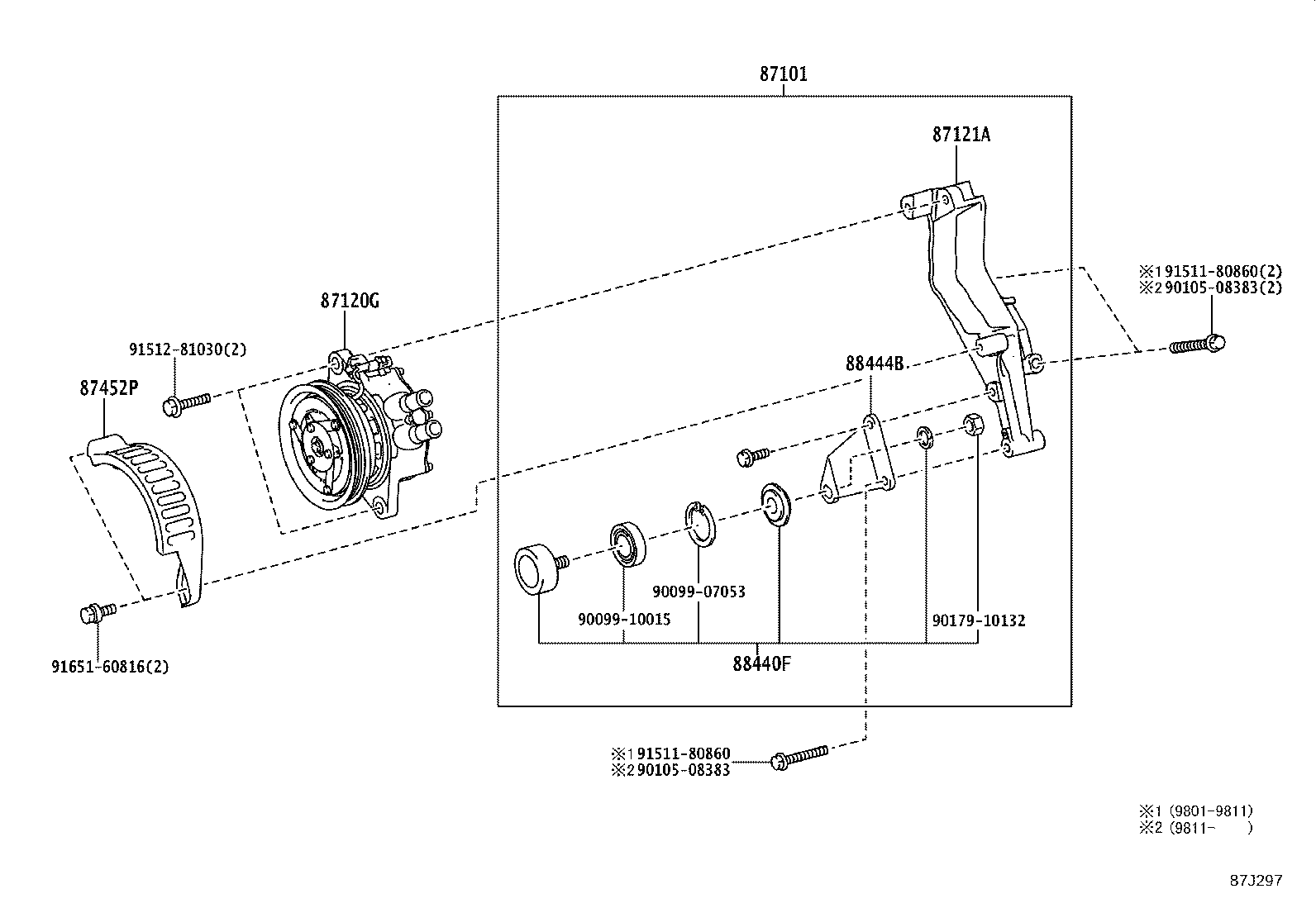

Figure 872354E 872354E 1998-01 → — Figure 876401A 876401A 1998-01 → — Figure 87J297 87J297 1998-01 → —

Part groups

PNCDescription
55909B Cable Sub-assy, Airmix Damper Control
87101 Bracket Sub-assy, Viscous Heater NO.1
87103 Motor Sub-assy, Heater Blower, W/Fan
87104R Motor Sub-assy, Rear Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87106A Servo Sub-assy, Damper
87106C Servo Sub-assy, Damper(FOR BLOWER)
87106M Servo Sub-assy, Damper, NO.2
87106P Servo Sub-assy, Damper(FOR REAR HEATER)
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87120 Heater Assy, Rear
87120G Heater Assy, Viscous W/Magnet Clutch
87121A Bracket, Heater
87130 Blower Assy, Heater, Front
87138R Resistor, Rear Heater Blower
87150 Radiator Assy, Heater
87165 Control, Blower Motor, NO.1
87211E Duct, Air
87452P Bracket, Viscous Heater, NO.2
87480F Amplifier Assy, Heater
88440F Pulley Assy, Idle NO.1
88444B Bracket, Idle Pulley
88625F Sensor, Temperature
88897R Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
