Toyota Land Cruiser
1998-01 → 2007-08 · chassis HDJ101,UZJ100 · catalogue 791150 · Japan
Discontinued model
Data version 2008-04

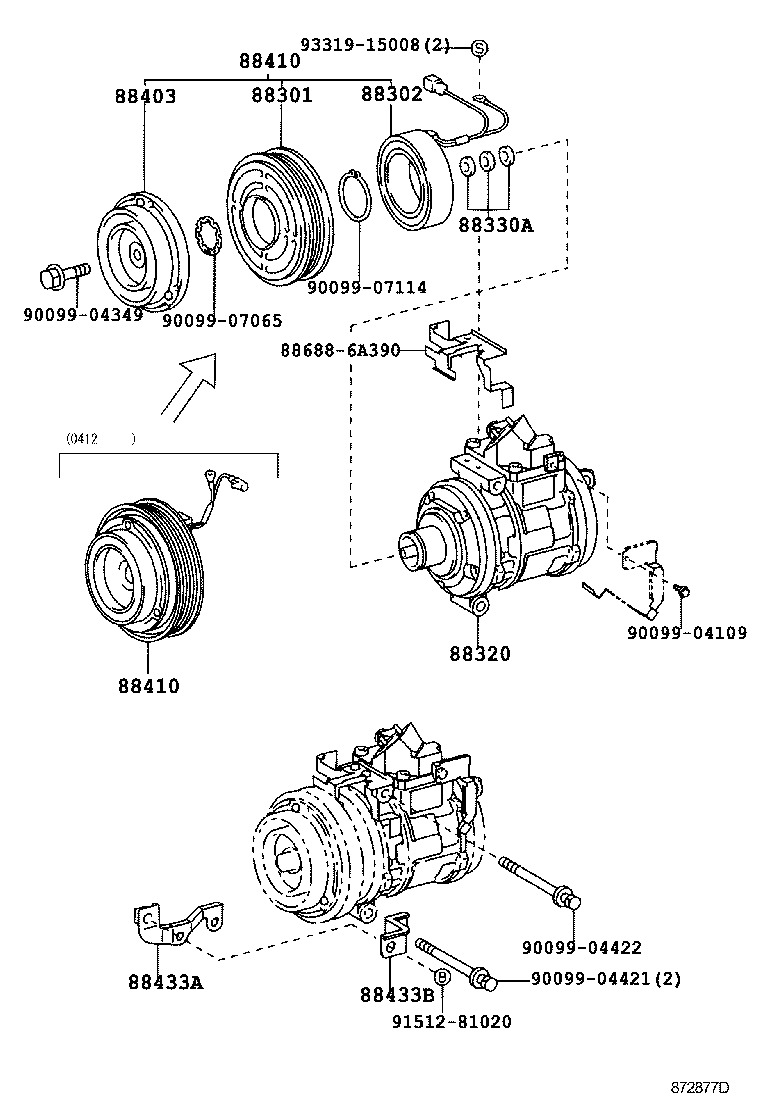

Heating & Air Conditioning - Compressor
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88301 | Rotor Sub-assy, Magnet Clutch |
| 88302 | Stator Sub-assy, Magnet Clutch |
| 88320 | Compressor Assy, Cooler |
| 88330A | Washer (FOR MAGNET CLUTCH) |
| 88403 | Hub Sub-assy, Magnet Clutch |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88433A | Stay, Compressor |
| 88433B | Stay, Compressor |
| 88444 | Bracket, Idle Pulley |
| 88446 | Bolt, Idle Pulley |
| 88545 | Pulley Assy, Idle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
