Toyota Land Cruiser
2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan
Supported model
Data version 2018-08

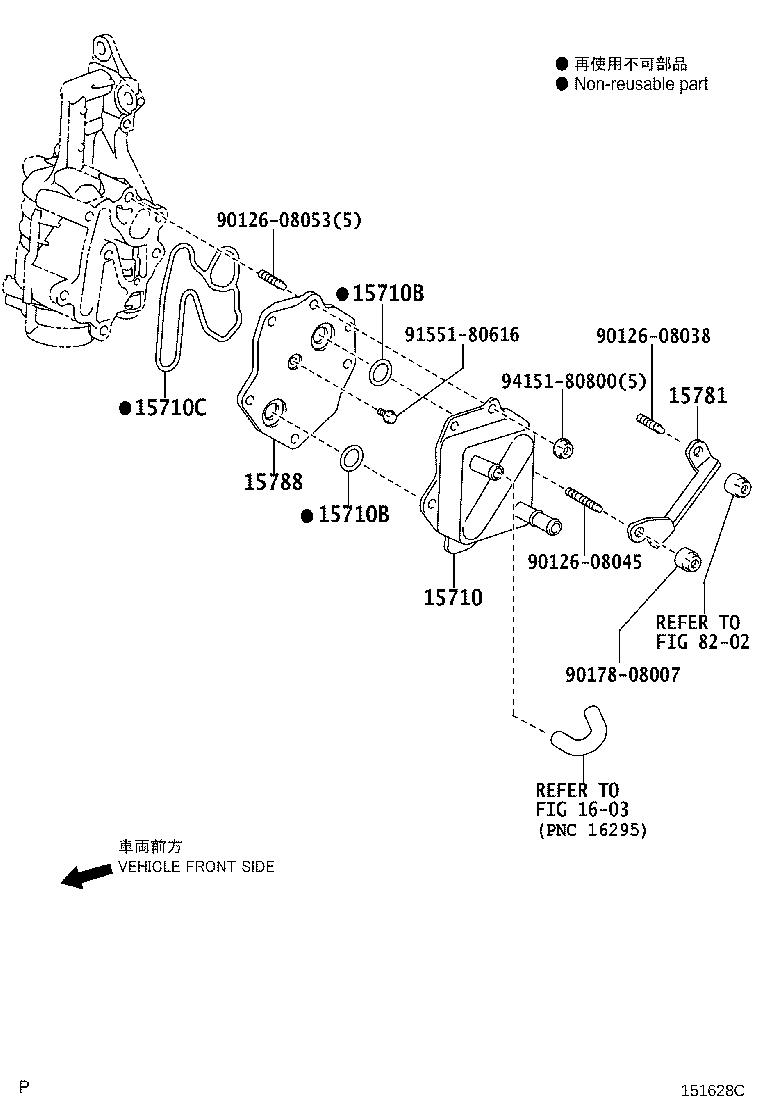

Engine Oil Cooler
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 15690 | Valve Assy, Oil Cooler Relief |
| 15710 | Cooler Assy, Oil |
| 15710B | Ring, O(FOR OIL COOLER) |
| 15710C | Gasket(FOR OIL COOLER) |
| 15767 | Pipe, Oil Cooler |
| 15767B | Hose, Water By-pass, NO.4 |
| 15767C | Hose, Water By-pass, NO.5 |
| 15777 | Hose, Oil Cooler |
| 15781 | Bracket, Oil Cooler, NO.1 |
| 15788 | Spacer, Oil Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
