Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

22 part groups · 2 illustrations

Illustrations

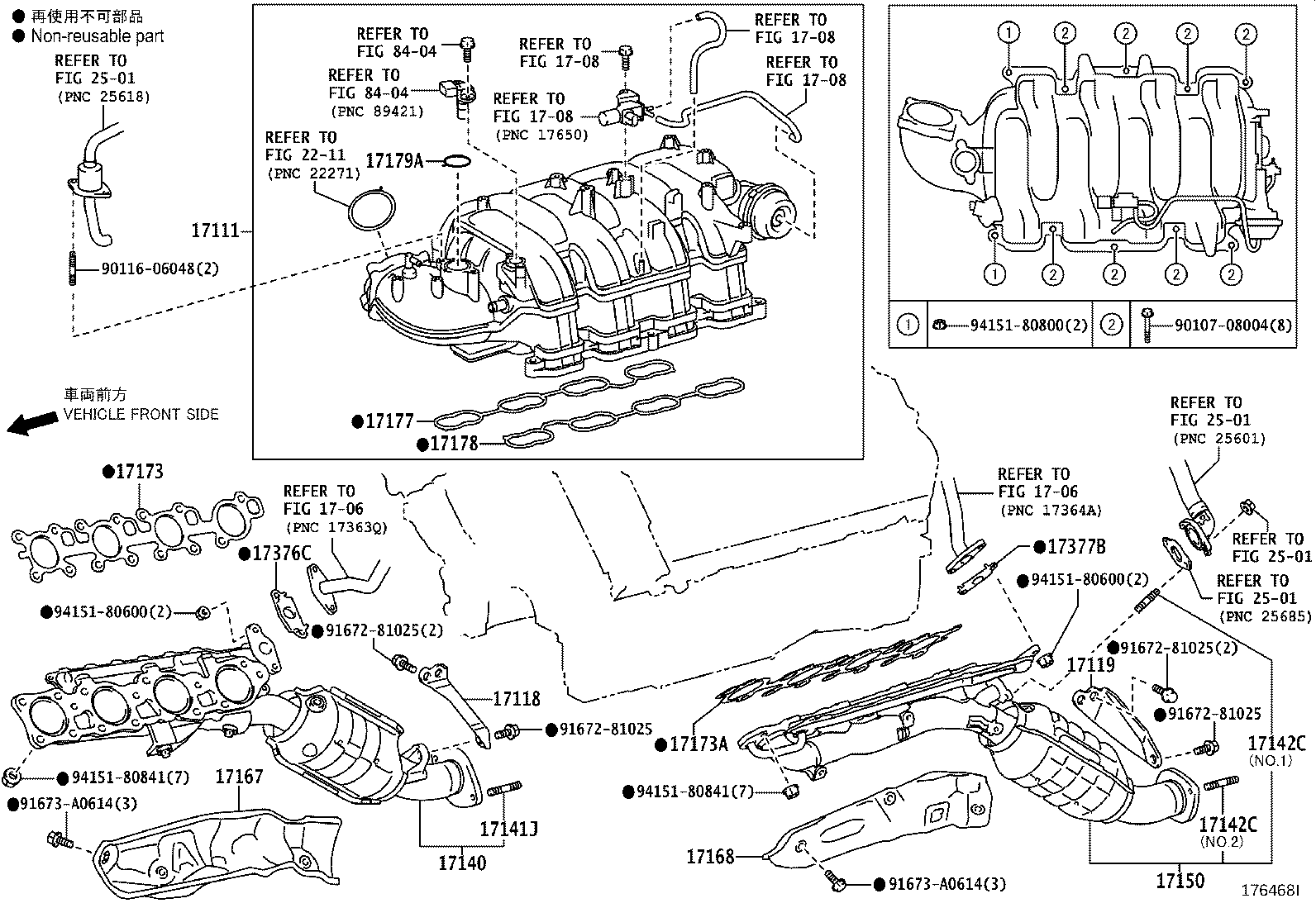

Figure 175748D 175748D 2007-09 → 2009-05 Figure 176468I 176468I 2009-05 → —

Part groups

PNCDescription
12235A Cap, Ventilation
17104 Manifold Sub-assy, Exhaust, RH
17105 Manifold Sub-assy, Exhaust, LH
17111 Manifold, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17140 Manifold Assy, Exhaust, RH
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17142C Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
17150 Manifold Assy, Exhaust, LH
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17152A Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17179A Gasket, Intake Manifold, NO.2
17376C Gasket, Air Tube
17377B Gasket, Air Tube, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
