Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

9 part groups · 3 illustrations

Illustrations

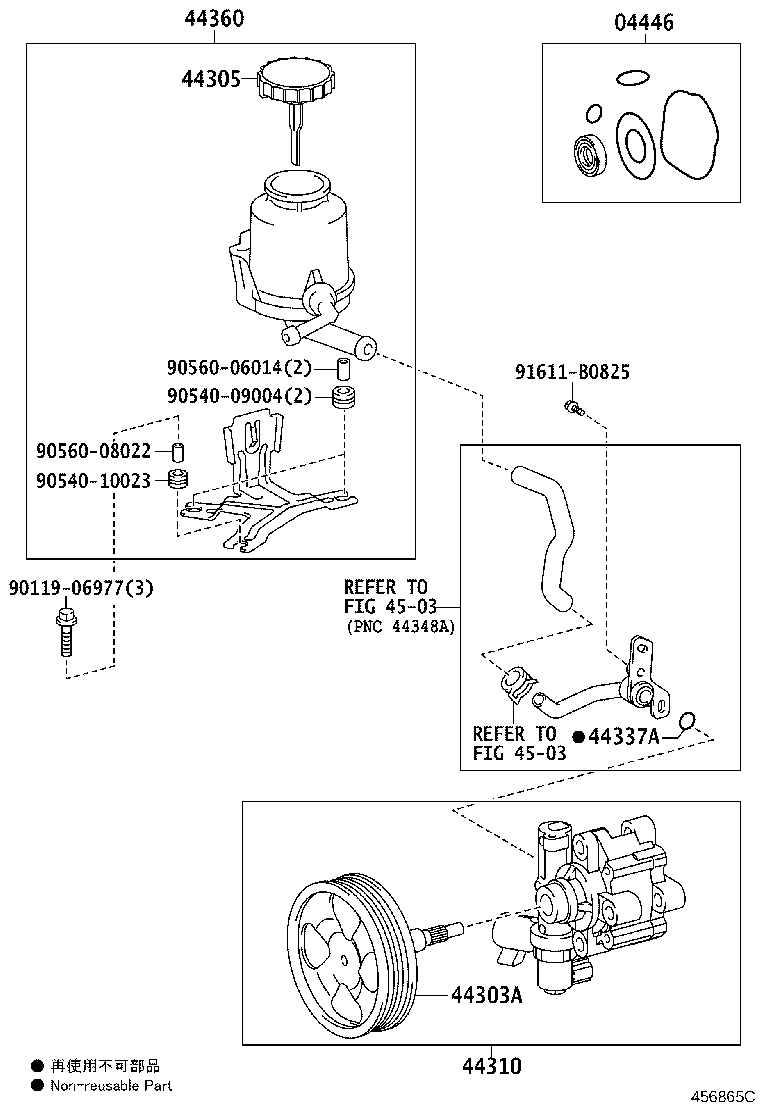

Figure 455036C 455036C 2007-09 → — Figure 455036C 455036C 2009-05 → 2015-08 Figure 456865C 456865C 2015-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
40130 Pump Assy,Vane Rebuilt
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44310 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
