Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

7 part groups · 4 illustrations

Illustrations

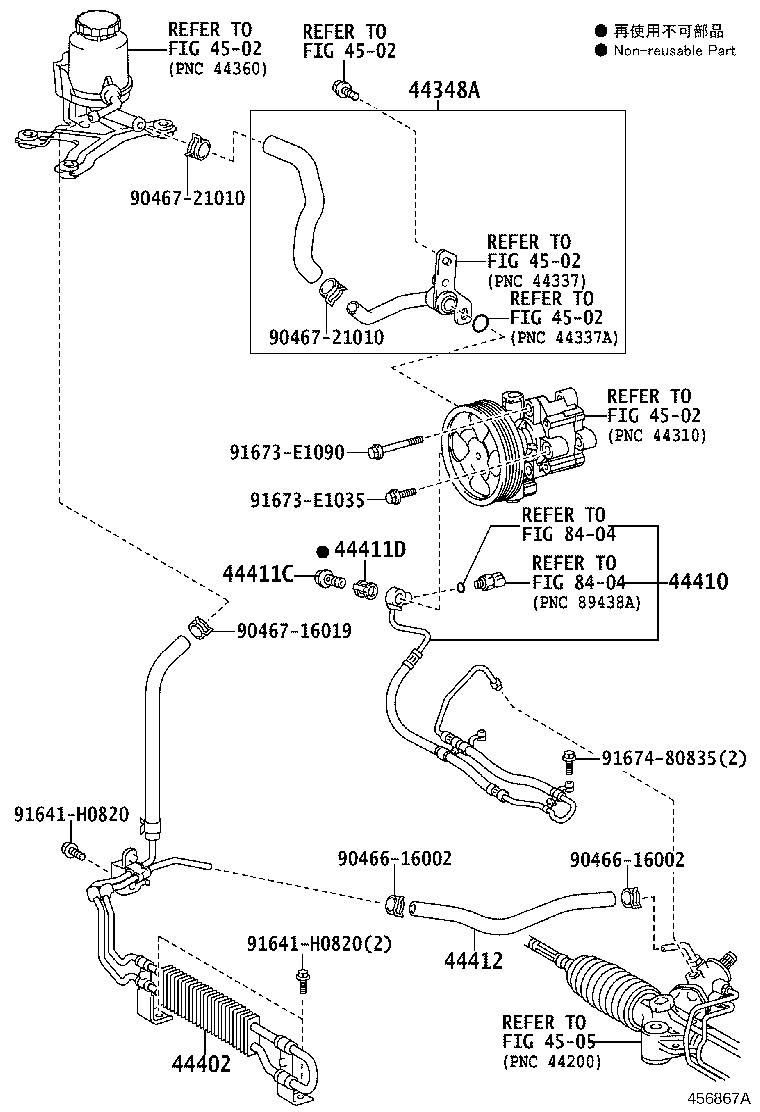

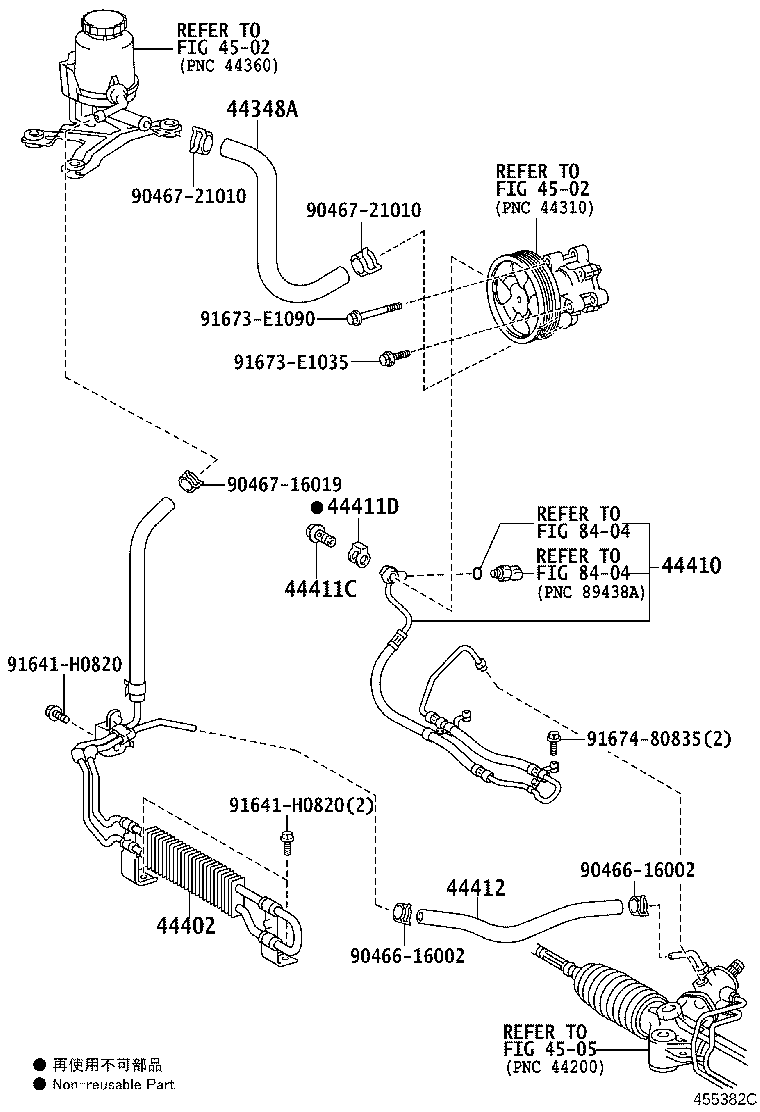

Figure 455383A 455383A 2007-09 → 2009-05 Figure 455382C 455382C 2009-05 → 2015-08 Figure 455382C 455382C 2009-05 → — Figure 456867A 456867A 2015-08 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
