Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 3 illustrations

Illustrations

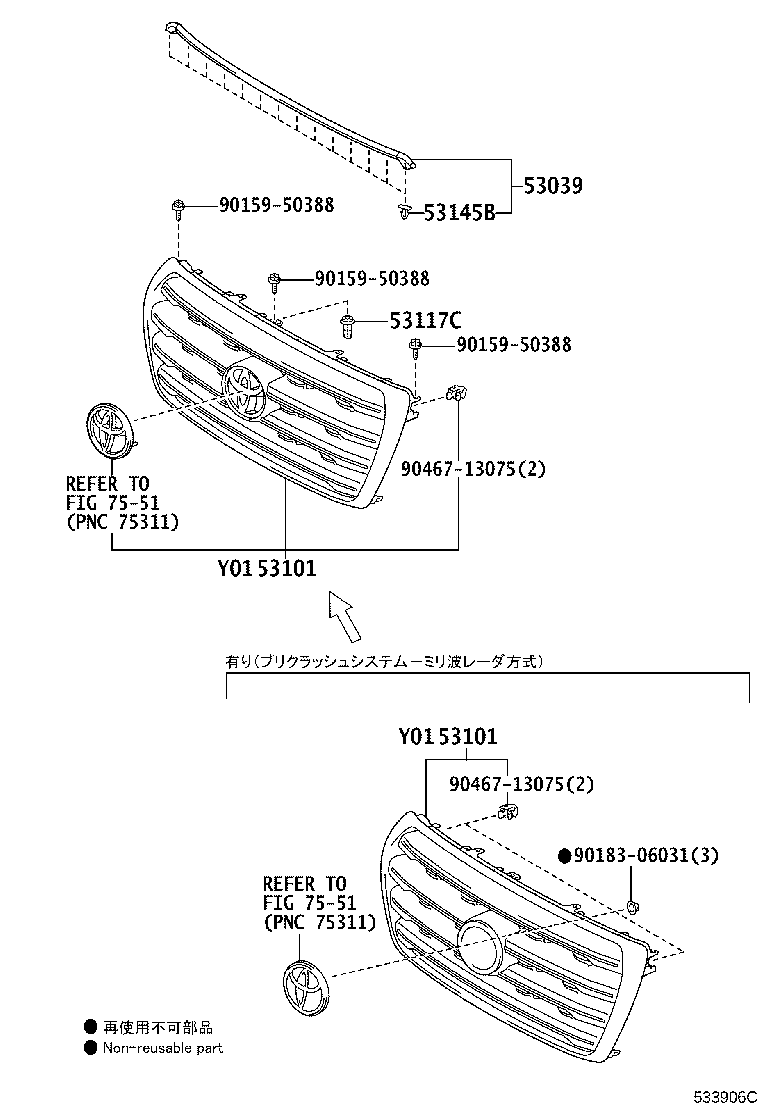

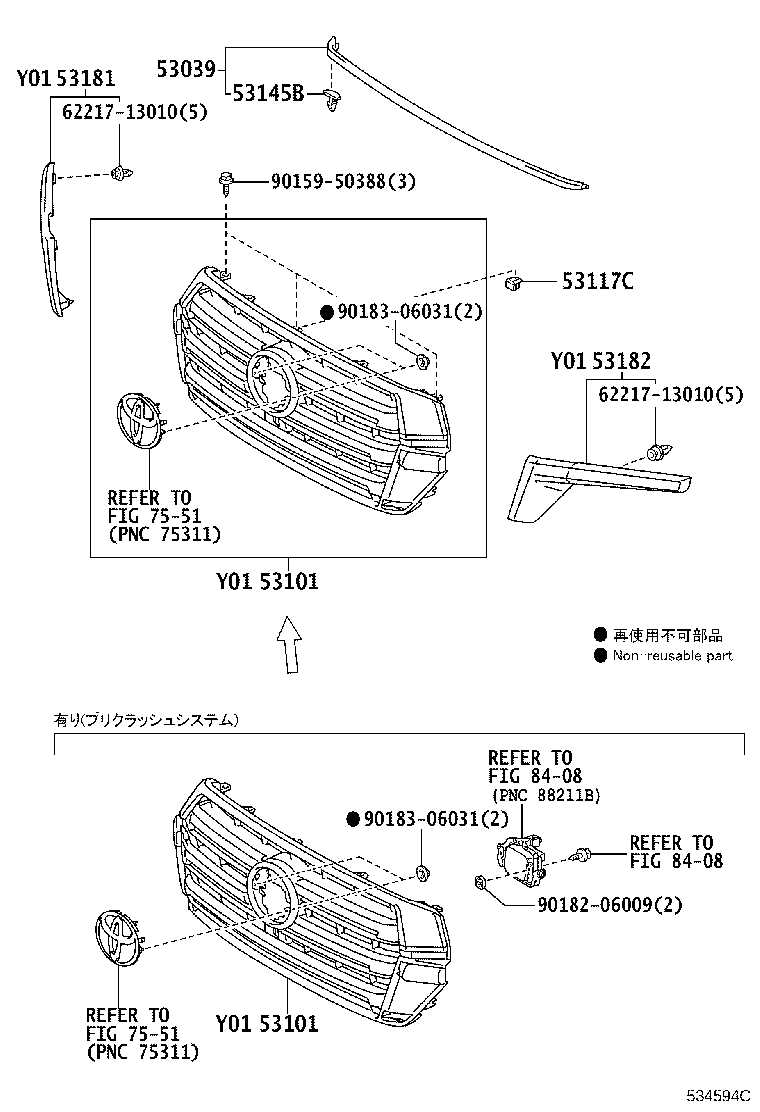

Figure 532612N 532612N 2007-09 → 2012-01 Figure 533906C 533906C 2012-01 → 2015-08 Figure 534594C 534594C 2015-08 → —

Part groups

PNCDescription
53039 Seal, Radiator, Upper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53117C Retainer, Radiator Grille, NO.1
53145B Clip, Radiator Grille Garnish
53181 Cover, Headlamp, RH
53182 Cover, Headlamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
