Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

17 part groups · 2 illustrations

Illustrations

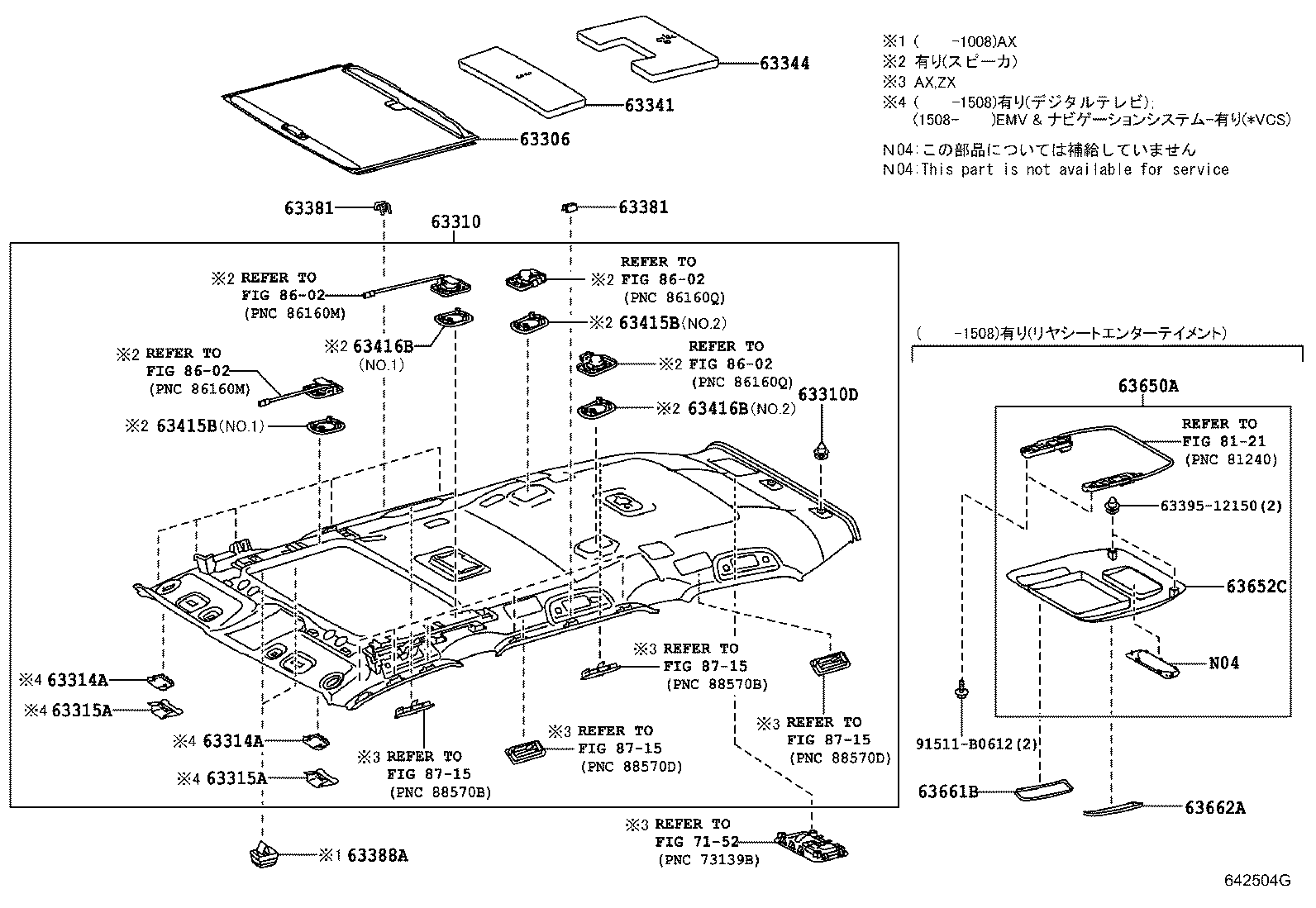

Figure 642195F 642195F 2007-09 → — Figure 642504G 642504G 2009-05 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63314A Headlining, Roof, NO.4
63315A Headlining, Roof, NO.5
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63381 Retainer, Headlining, Front
63388A Cover, Roof Headlining Holder
63415B Grille, Roof Speaker, RH
63416B Grille, Roof Speaker, LH
63650A Box Assy, Roof Console
63652C Cover, Roof Console Box
63661B Cover, Roof Lining Trim, NO.1
63662A Cover, Roof Lining Trim, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
