Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

30 part groups · 4 illustrations

Illustrations

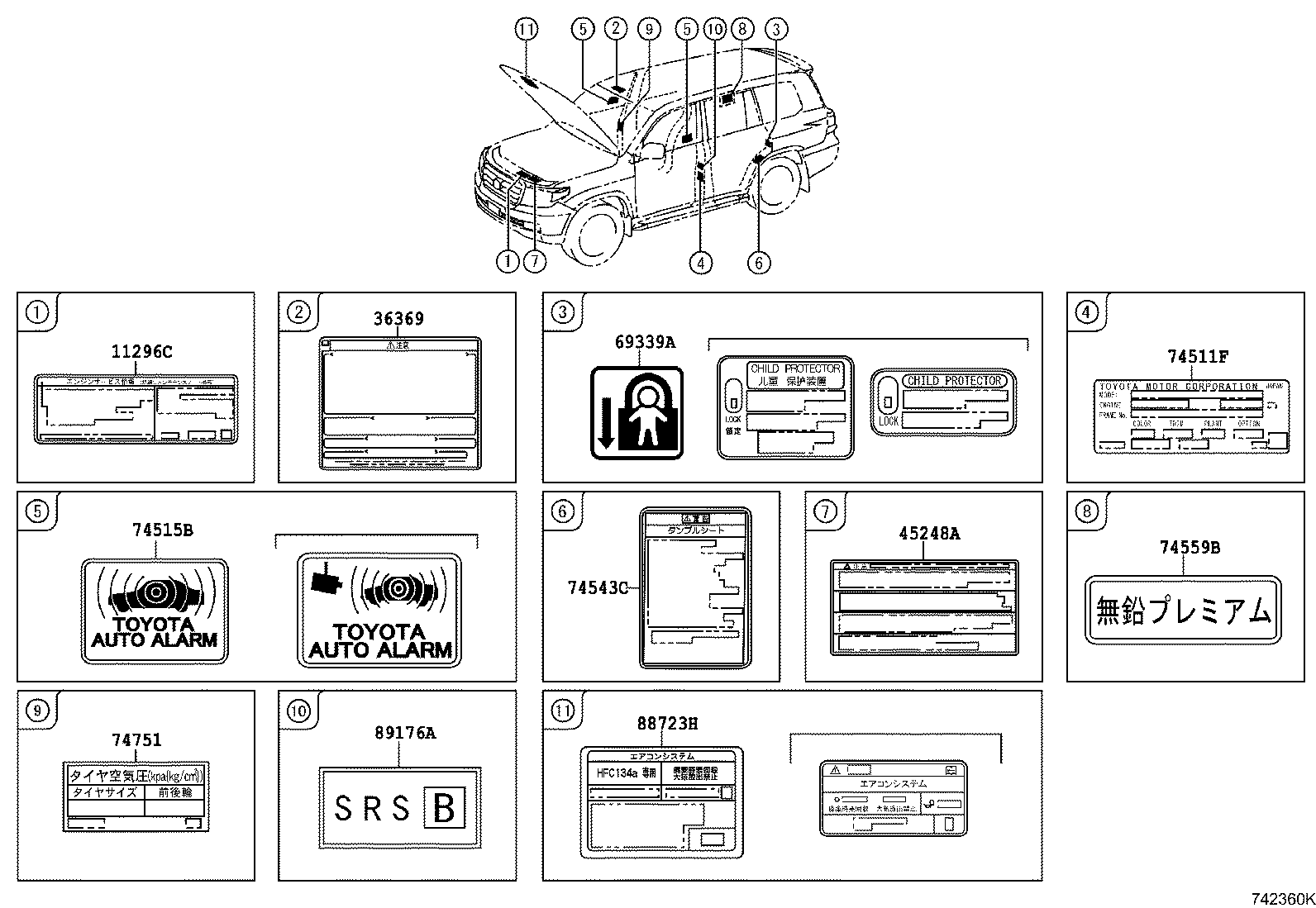

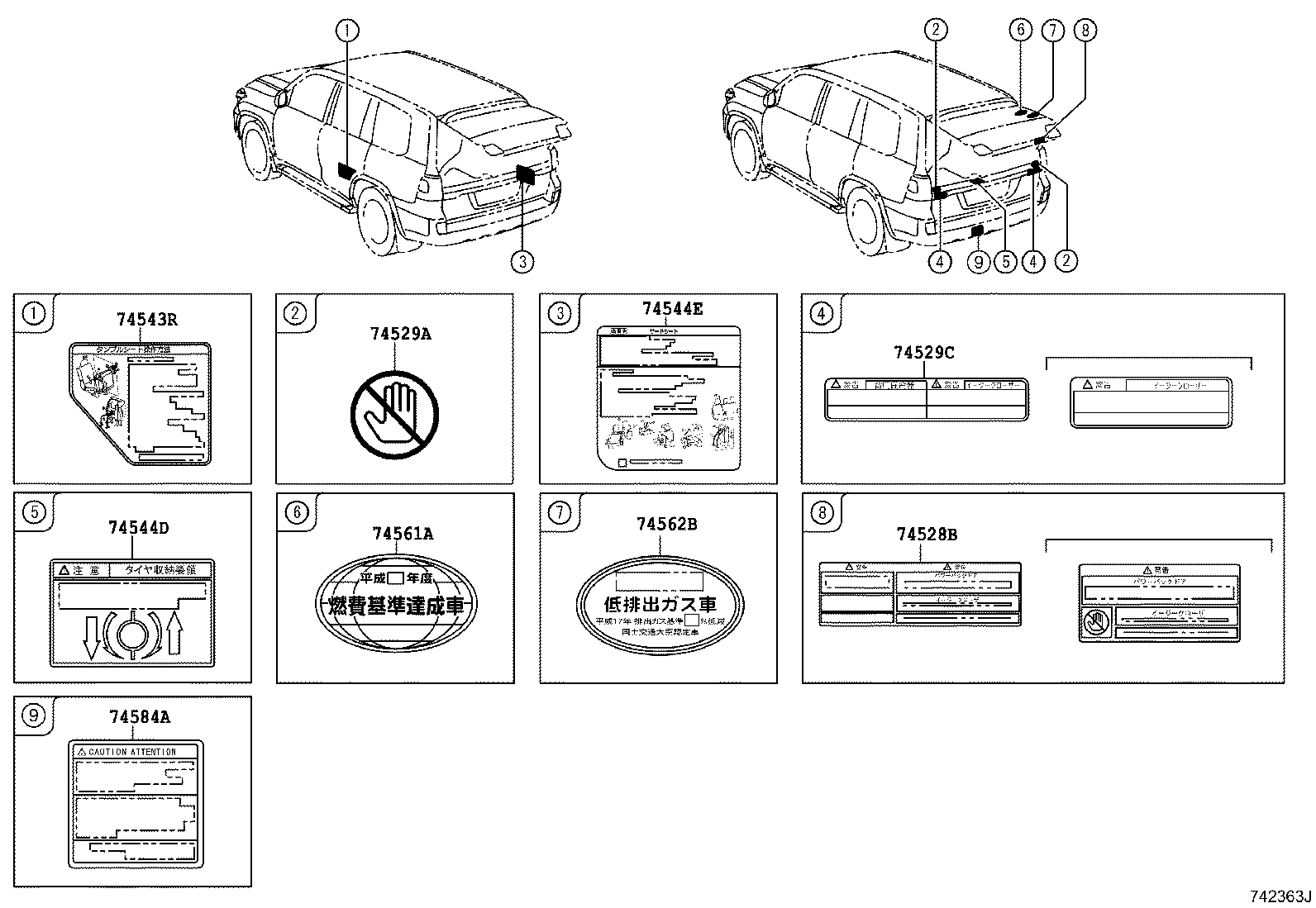

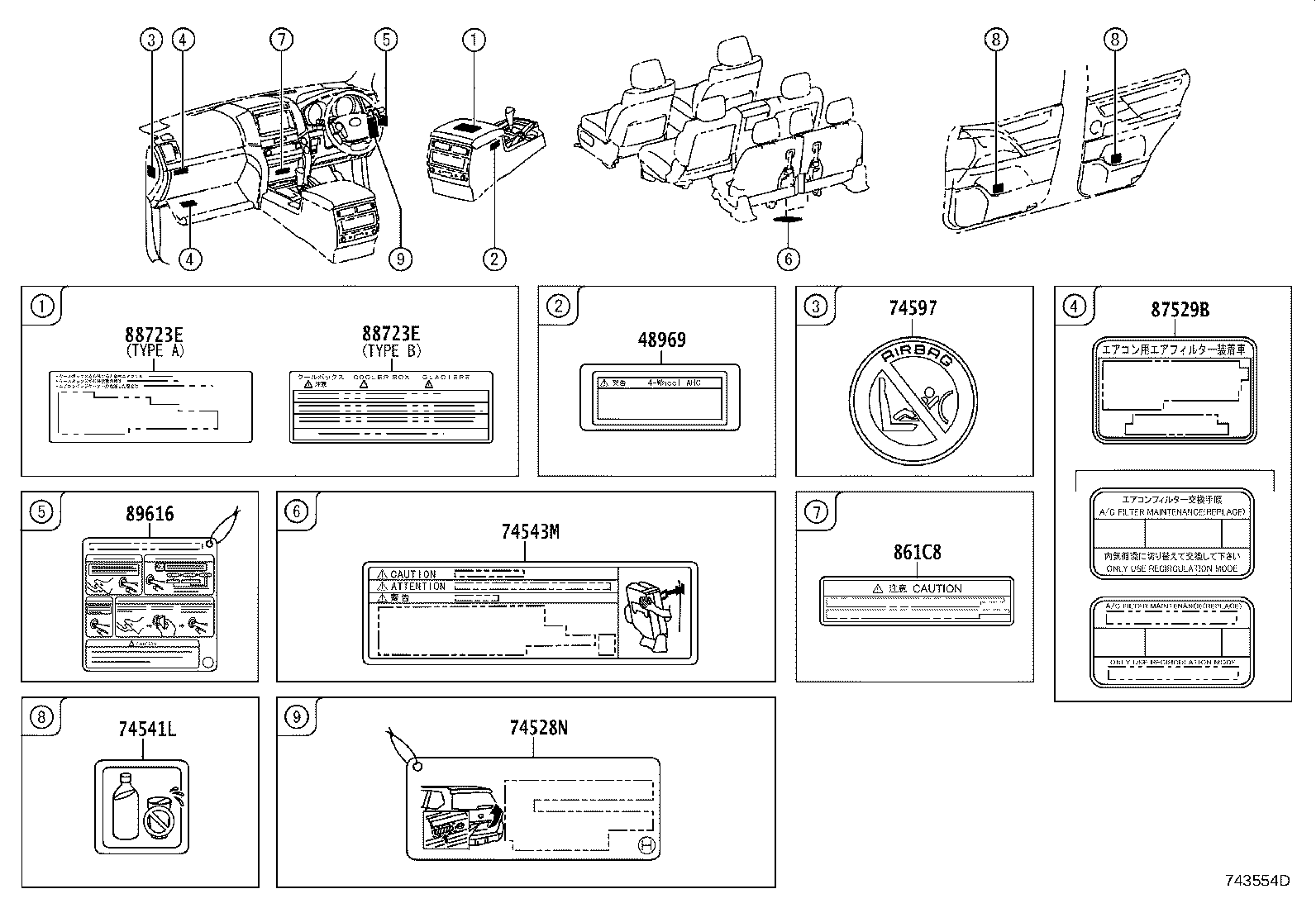

Figure 745355 745355 2007-09 → — Figure 742360K 742360K 2007-09 → — Figure 742363J 742363J 2007-09 → — Figure 743554D 743554D 2007-09 → —

Part groups

PNCDescription
11296C Label, Engine Service Information
17791A Label, Maintenance Information
36369 Label, Transfer Information
45248A Label, Steering Actuator Caution
48969 Label, Jack UP Caution
69339A Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515B Plate, Theft Warning
74528B Label, Back Door Caution
74528N Label, Back Door Caution, NO.2
74529A Plate, Back Door Caution
74529C Plate, Back Door Caution
74541L Label, Bottle Holder Information
74543C Label, Rear Seat Information
74543M Label, Rear Seat Caution, NO.2
74543R Label, Rear Seat Caution
74544D Plate, Tire Carrier Caution
74544E Label, Rear NO.2 Seat Information
74559B Label, Fuel Information
74561A Label, Fuel Consumption Information
74562B Label, Emission Information
74584A Label, Towing Caution
74597 Label, Driver & Passenger Airbag Caution
74751 Label, Tire Pressure Information
861C8 Label, Mobile Wireless Charger Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
89616 Label, Push Start Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
