Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

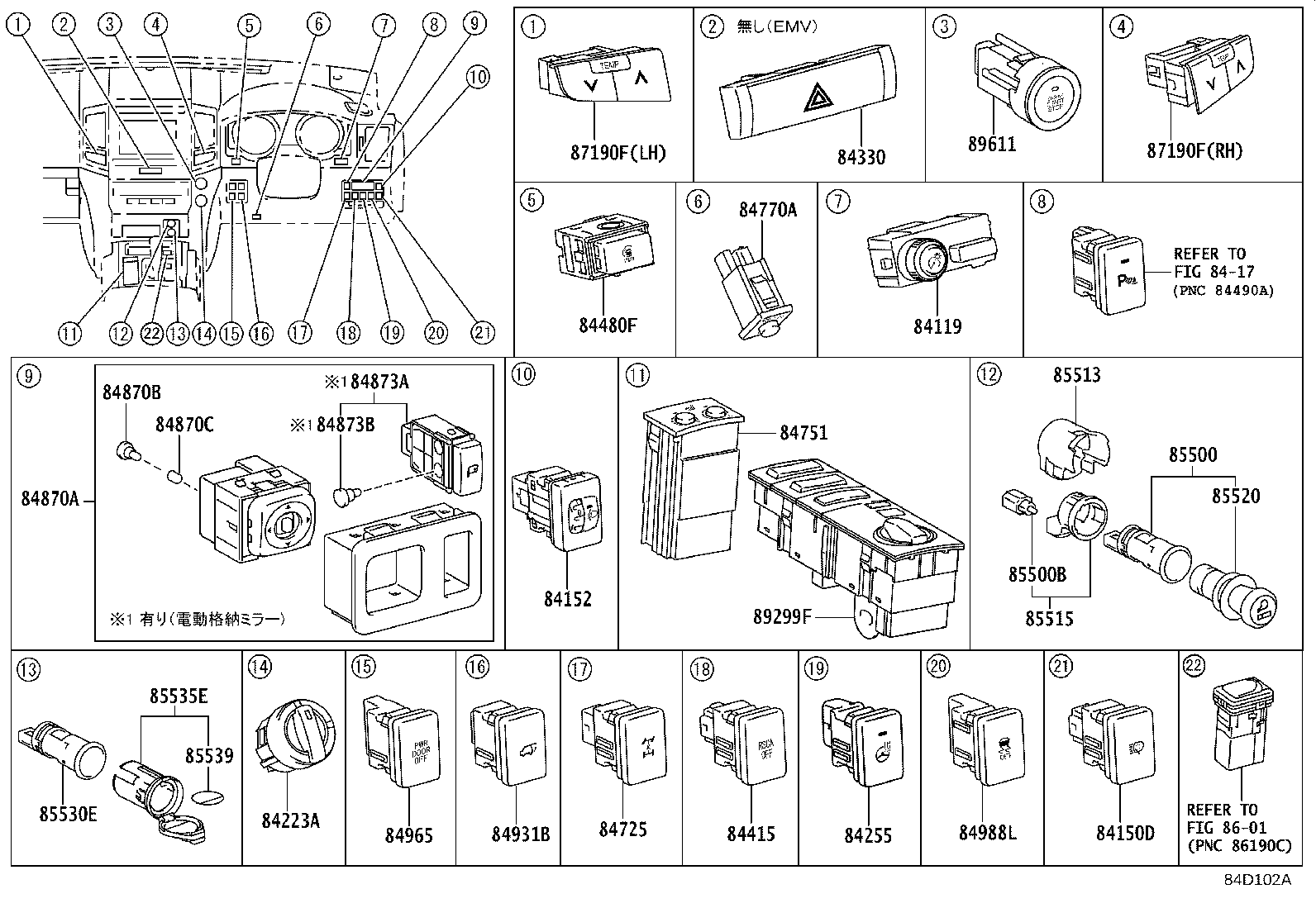

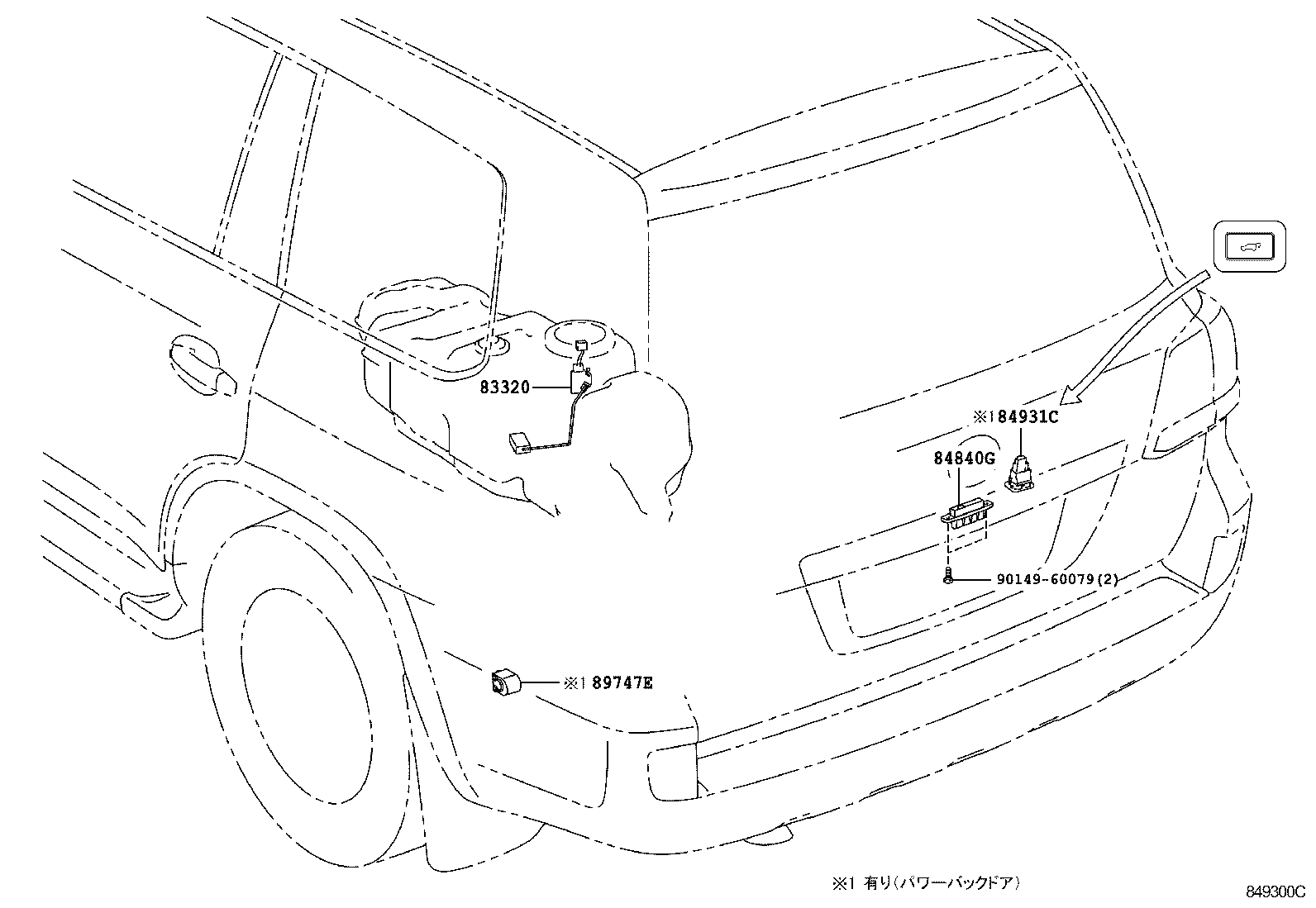

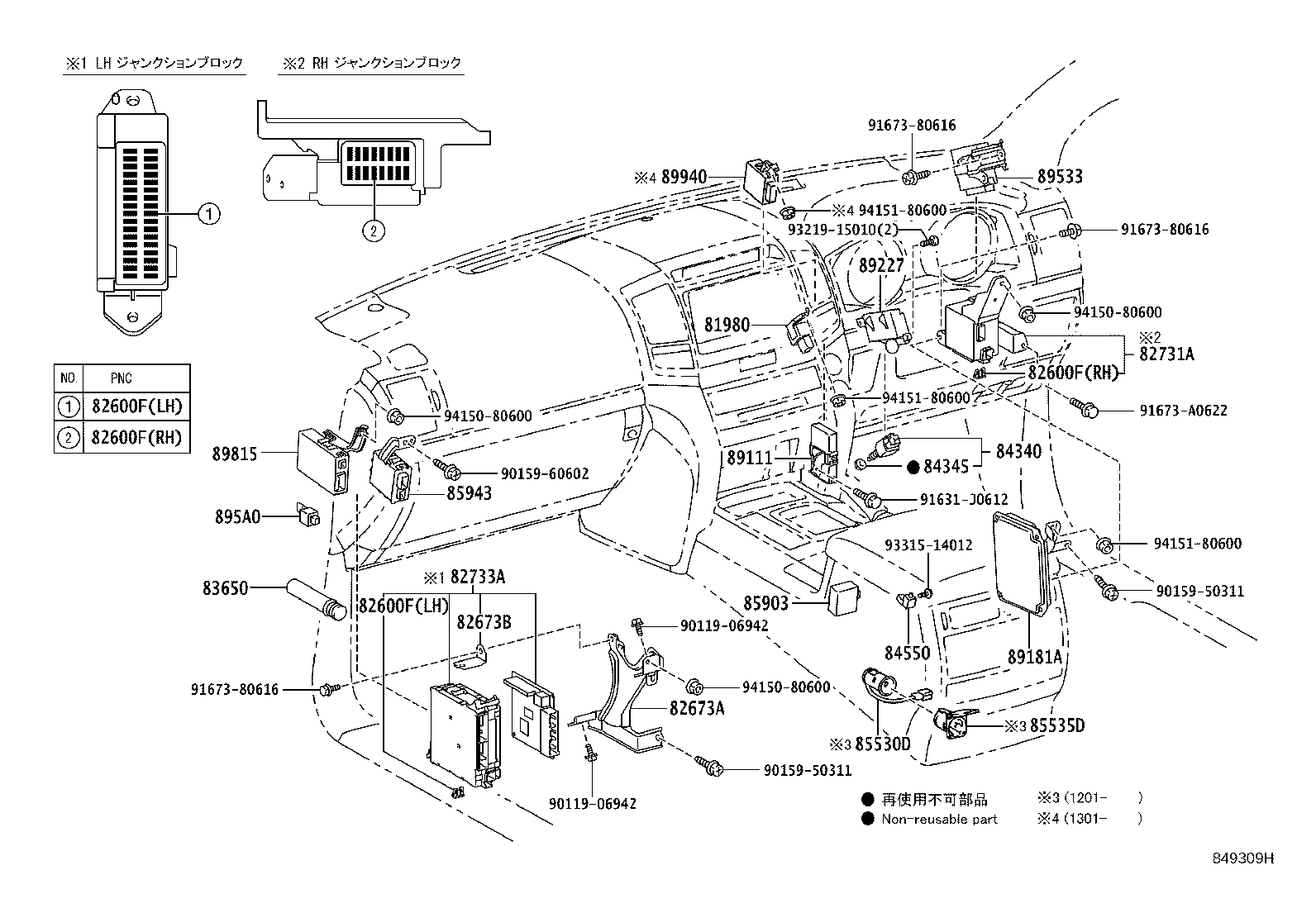

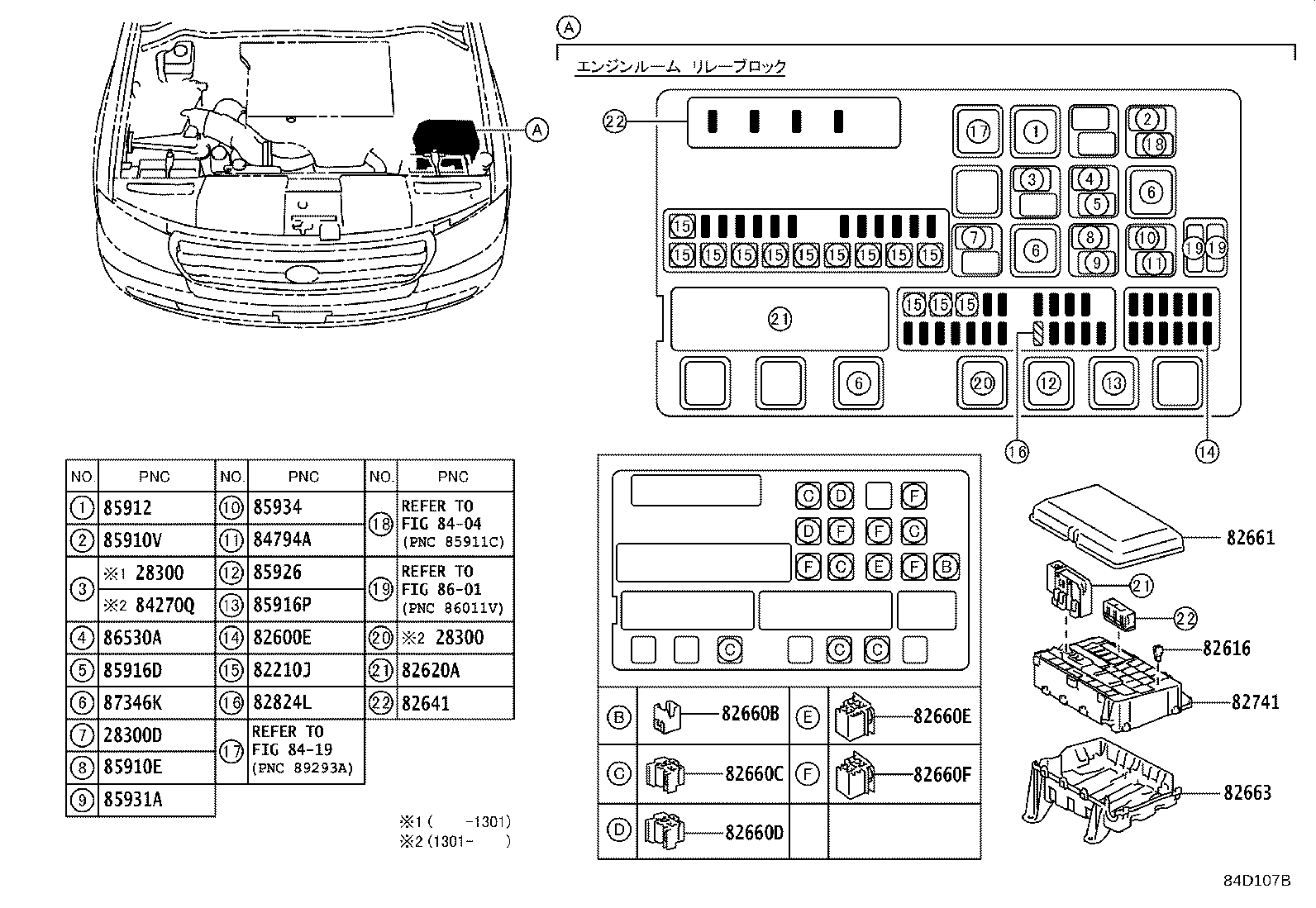

160 part groups · 22 illustrations

Illustrations

849296B 2007-09 → 2009-05

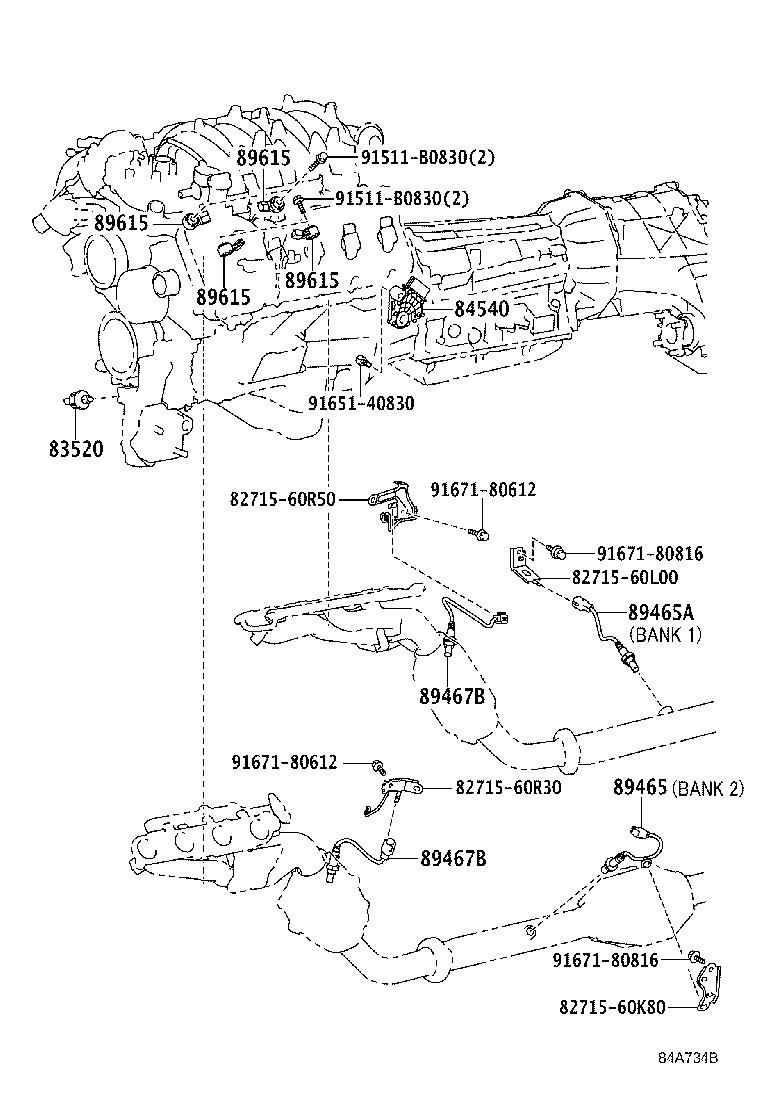

84A734B 2009-05 → 2012-01

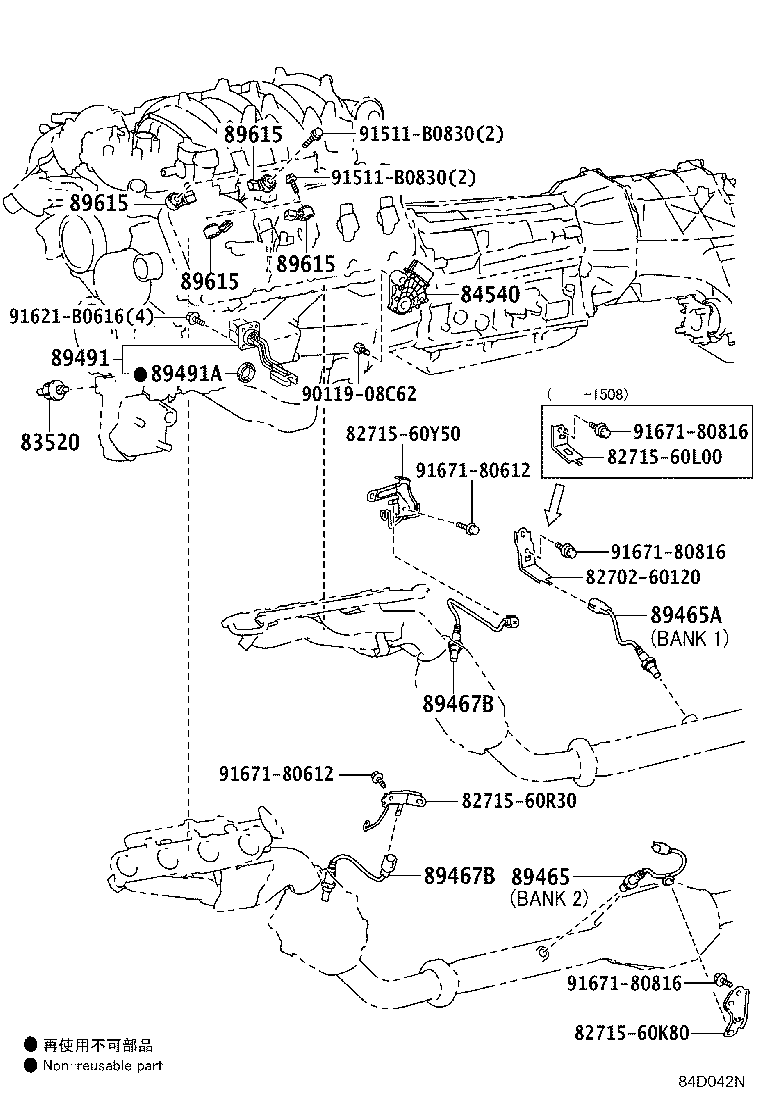

84D042N 2012-01 → —

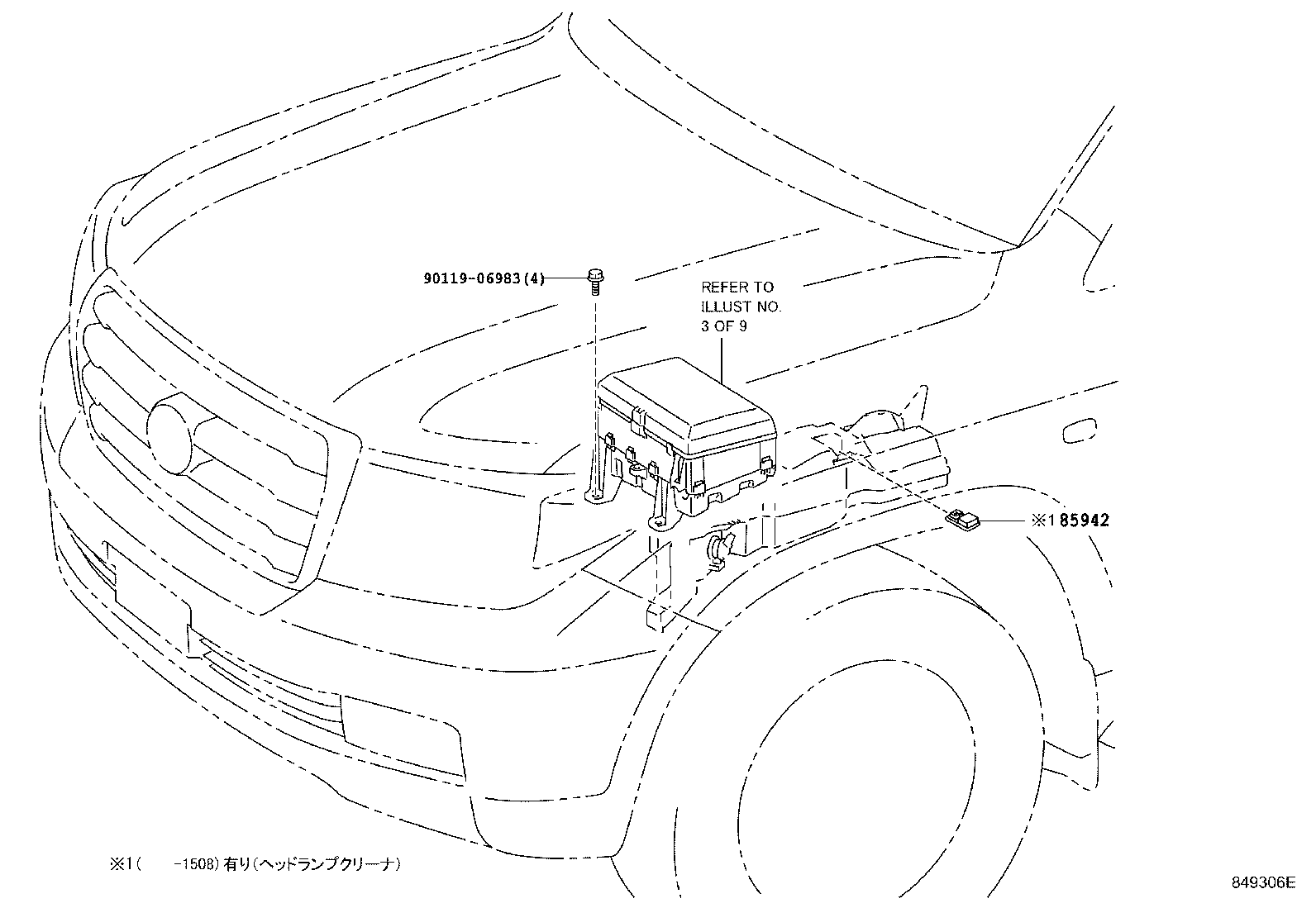

849306E 2007-09 → —

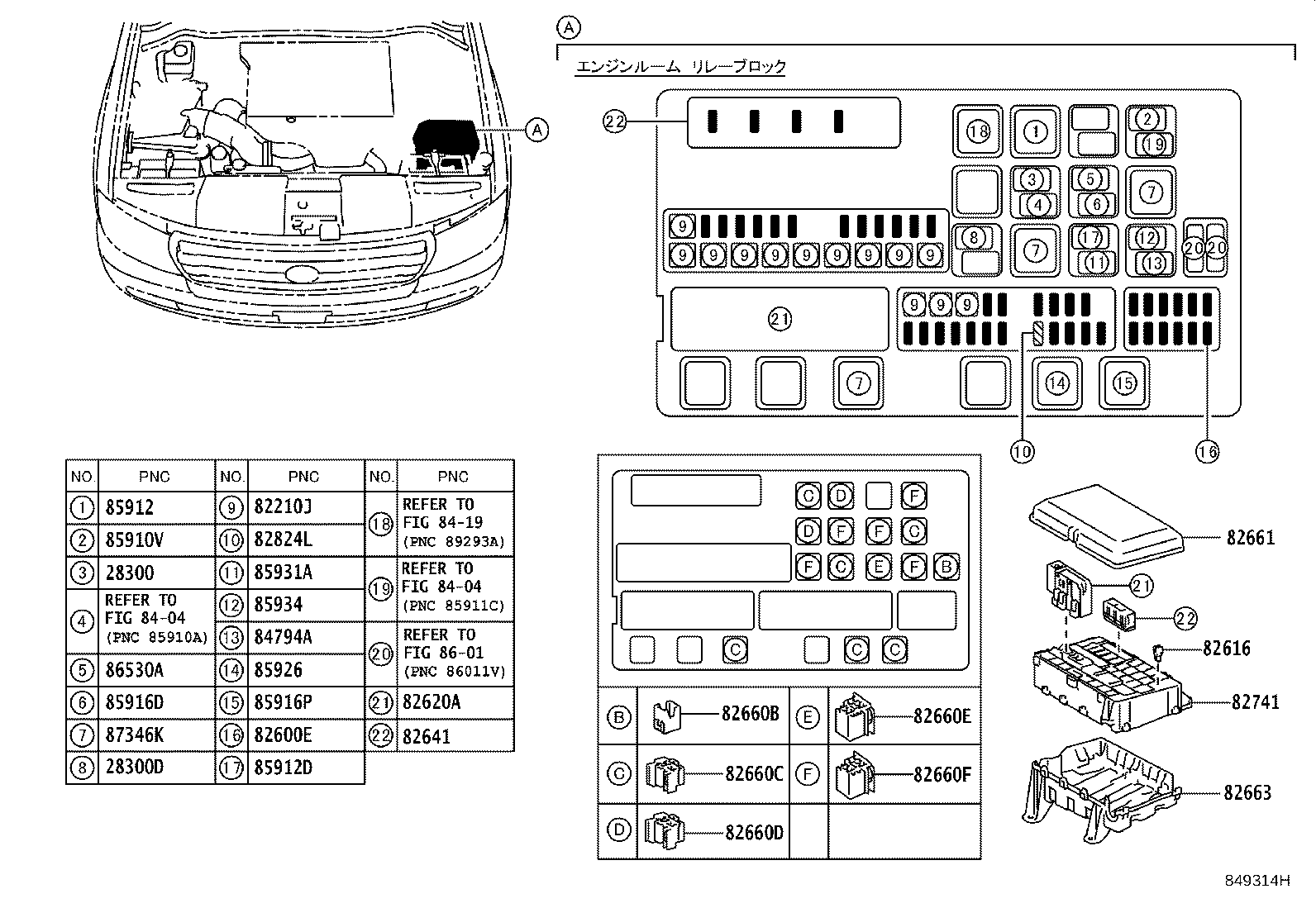

849314H 2007-09 → 2012-01

84D107B 2012-01 → 2015-08

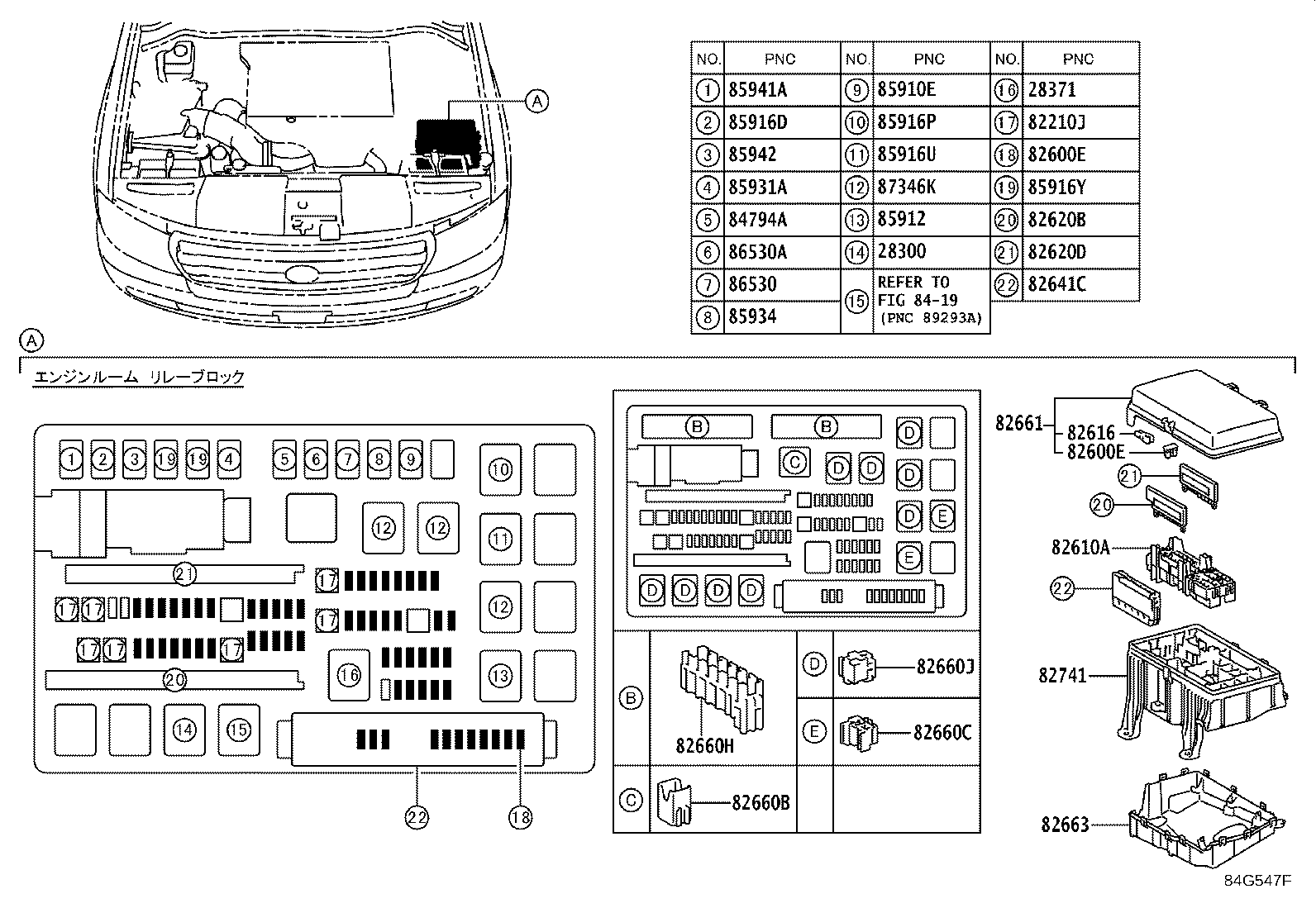

84G547F 2015-08 → —

849309H 2007-09 → 2015-08

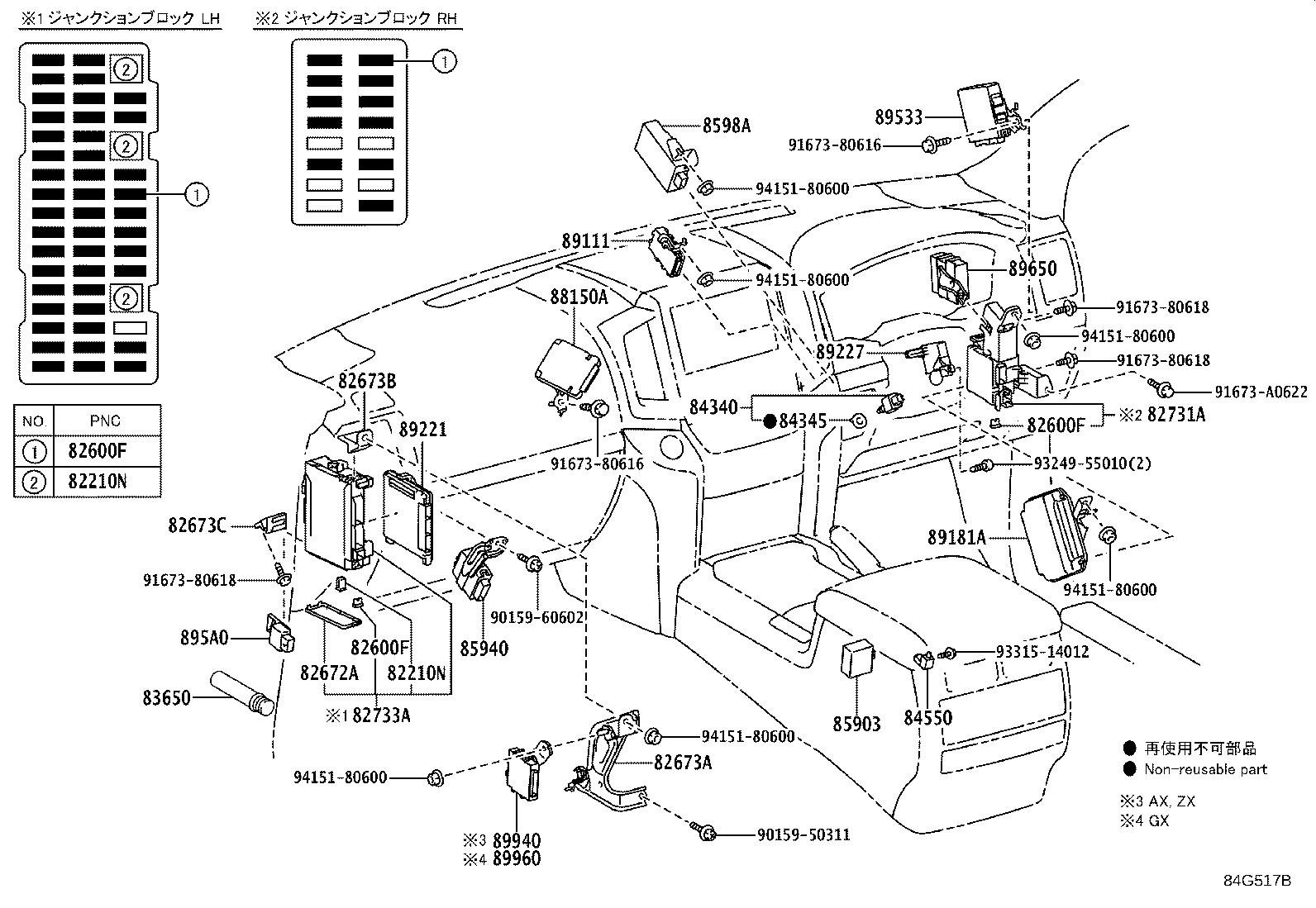

84G517B 2015-08 → —

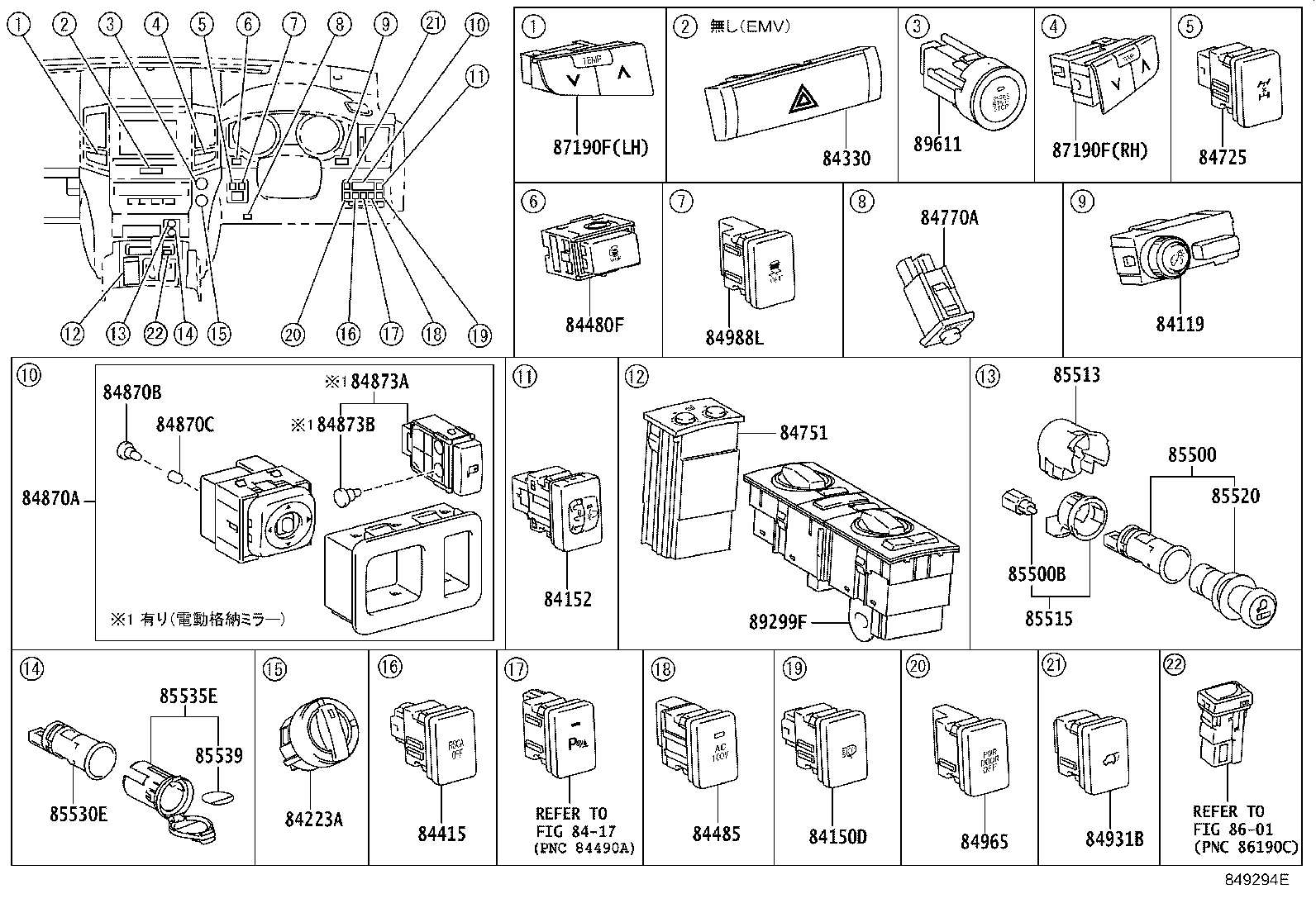

849294E 2007-09 → 2012-01

84D102A 2012-01 → 2015-08

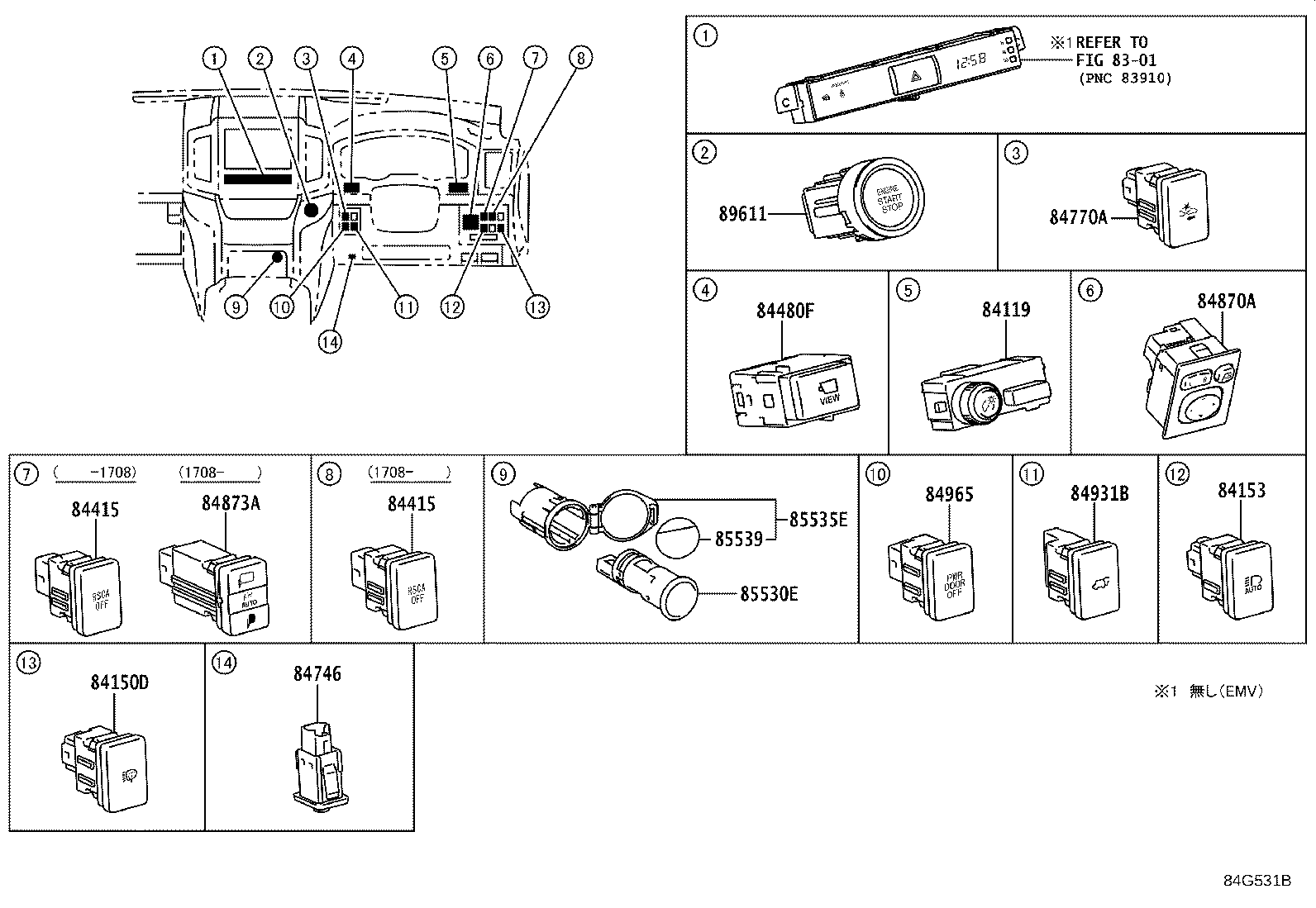

84G531B 2015-08 → —

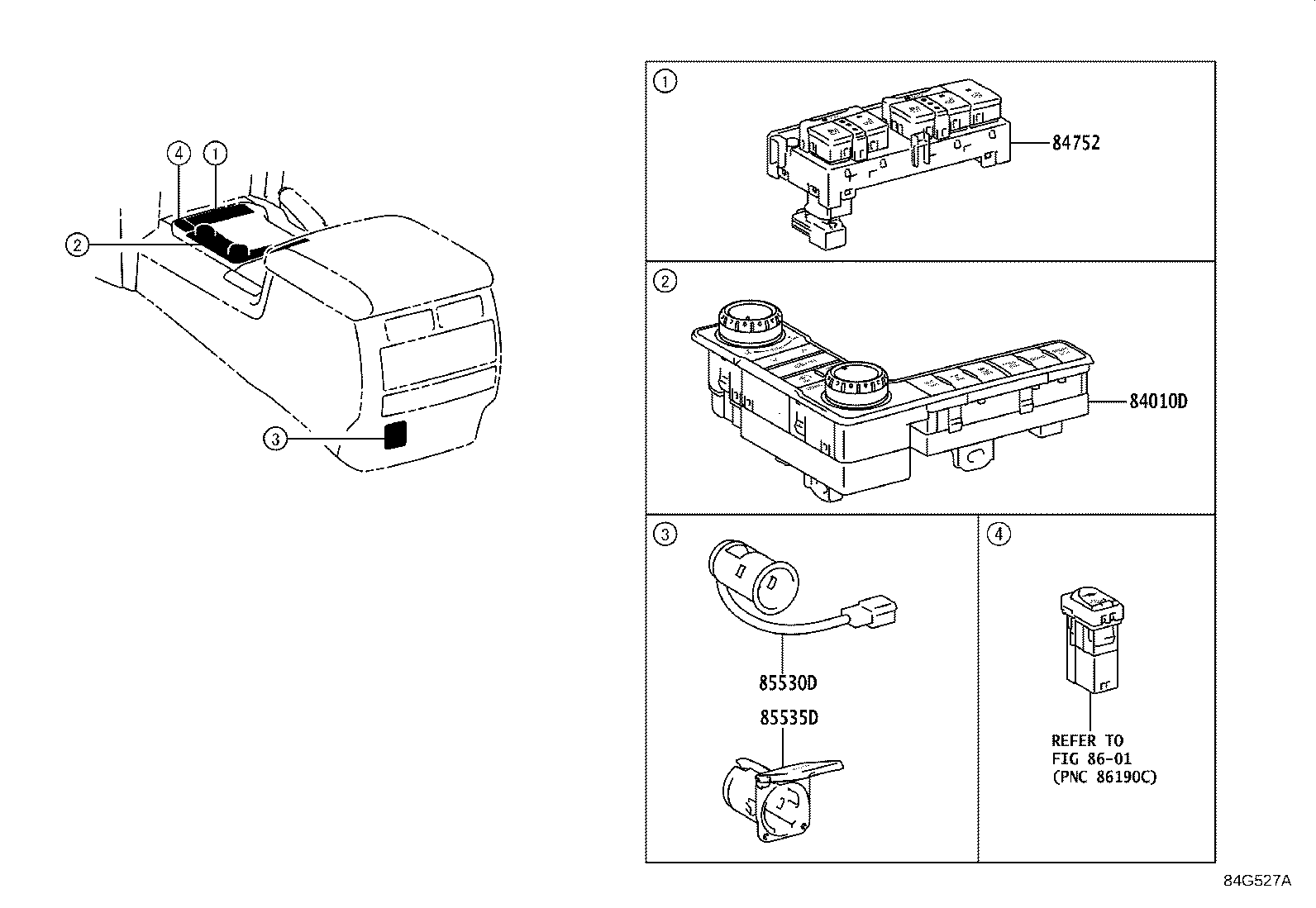

84G527A 2015-08 → —

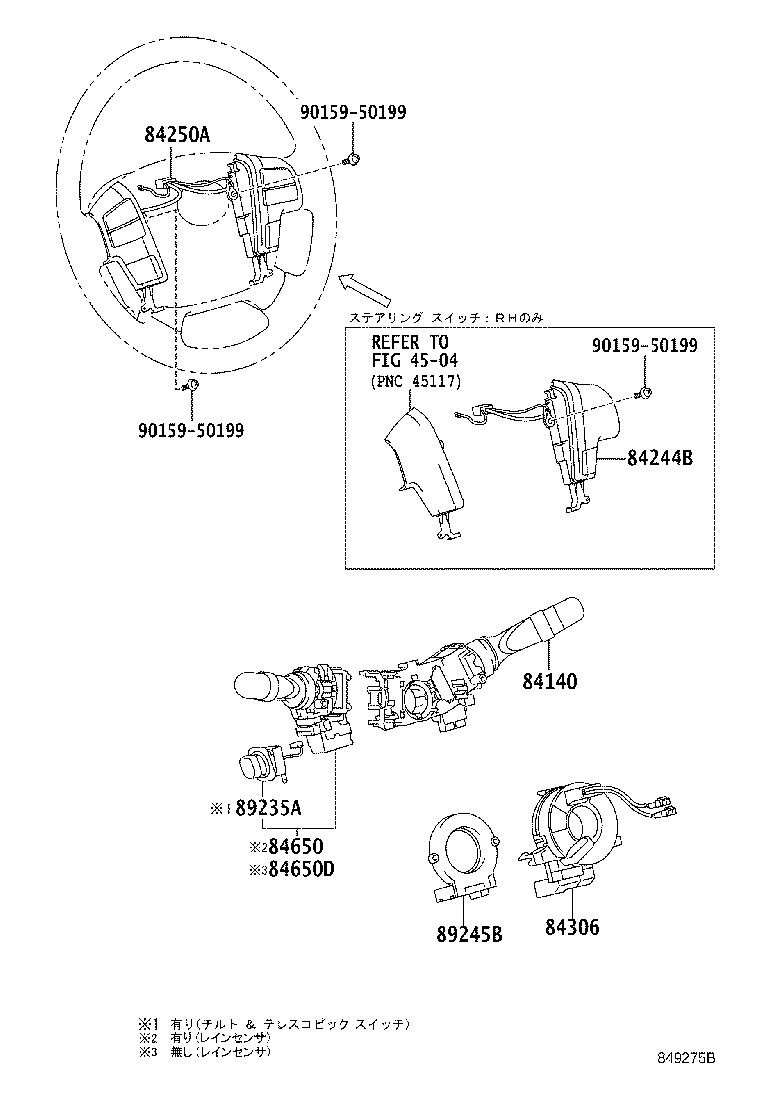

849275B 2007-09 → 2012-01

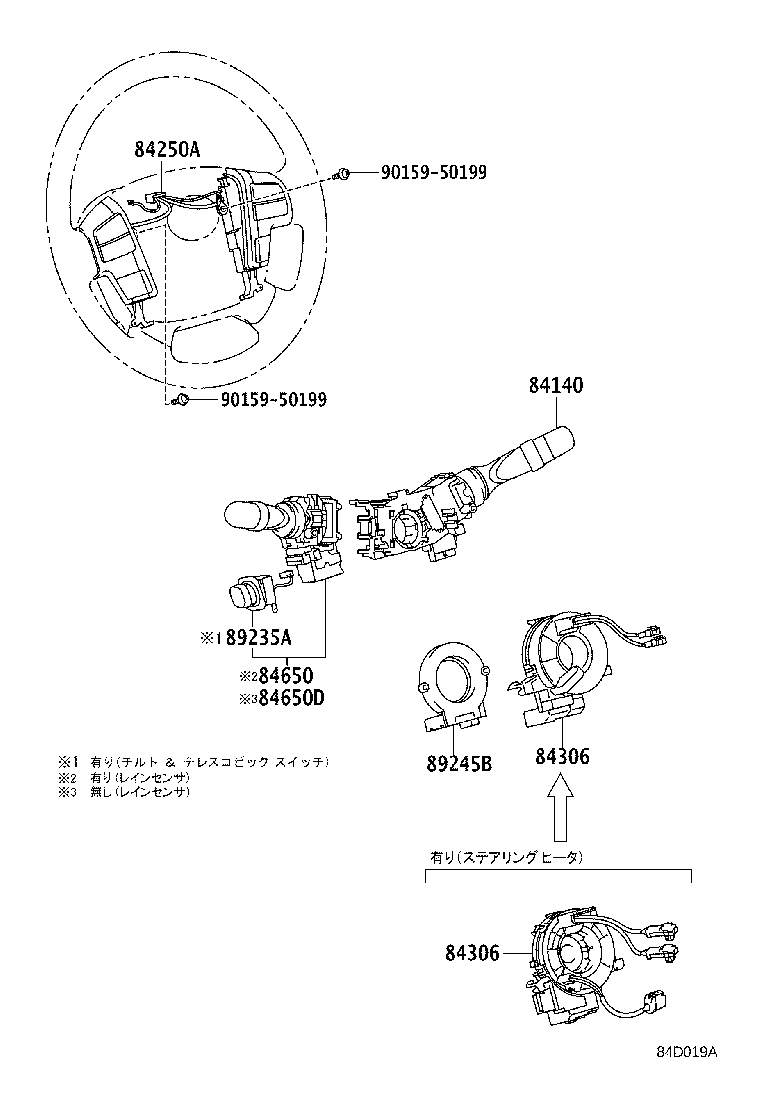

84D019A 2012-01 → 2015-08

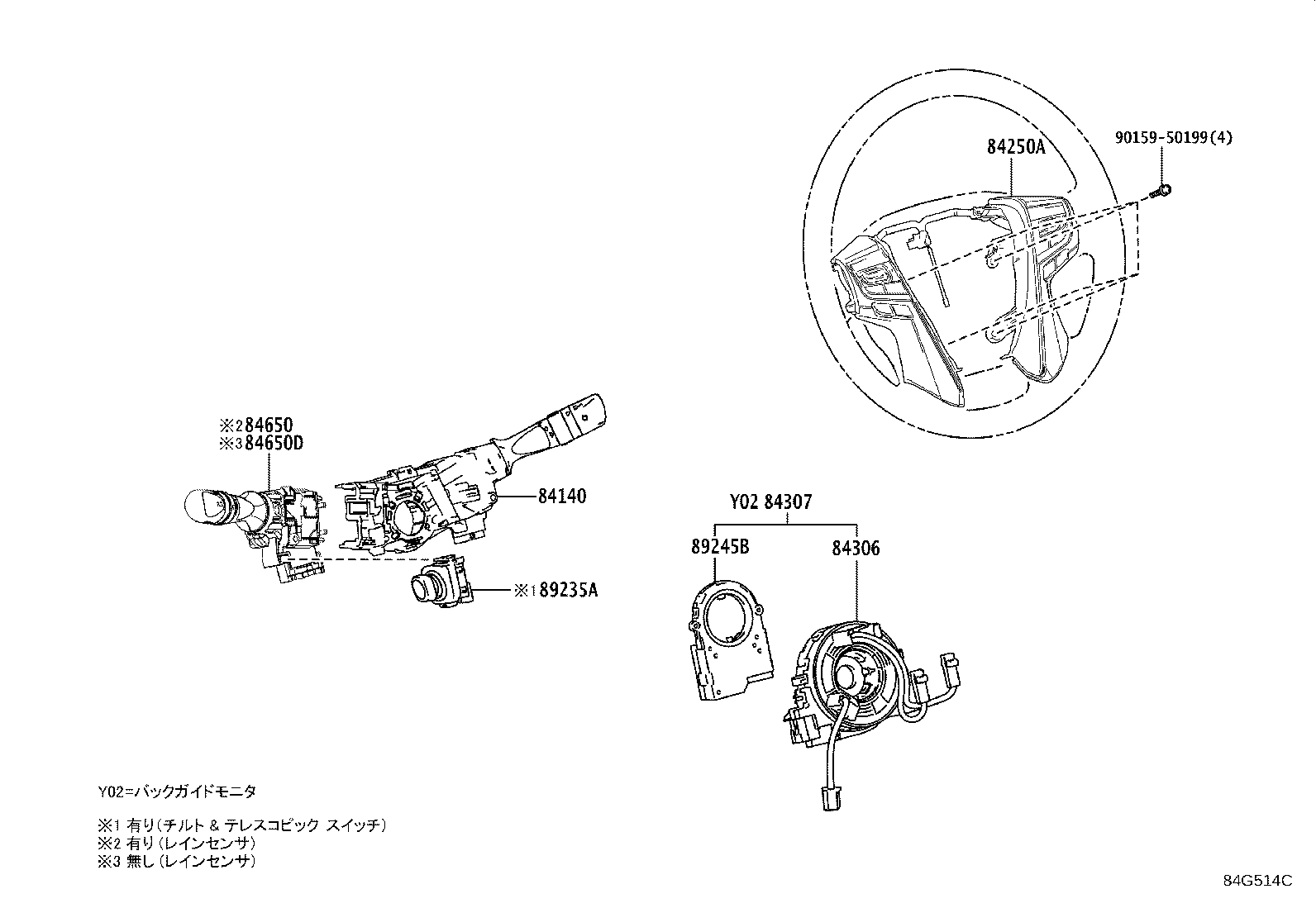

84G514C 2015-08 → —

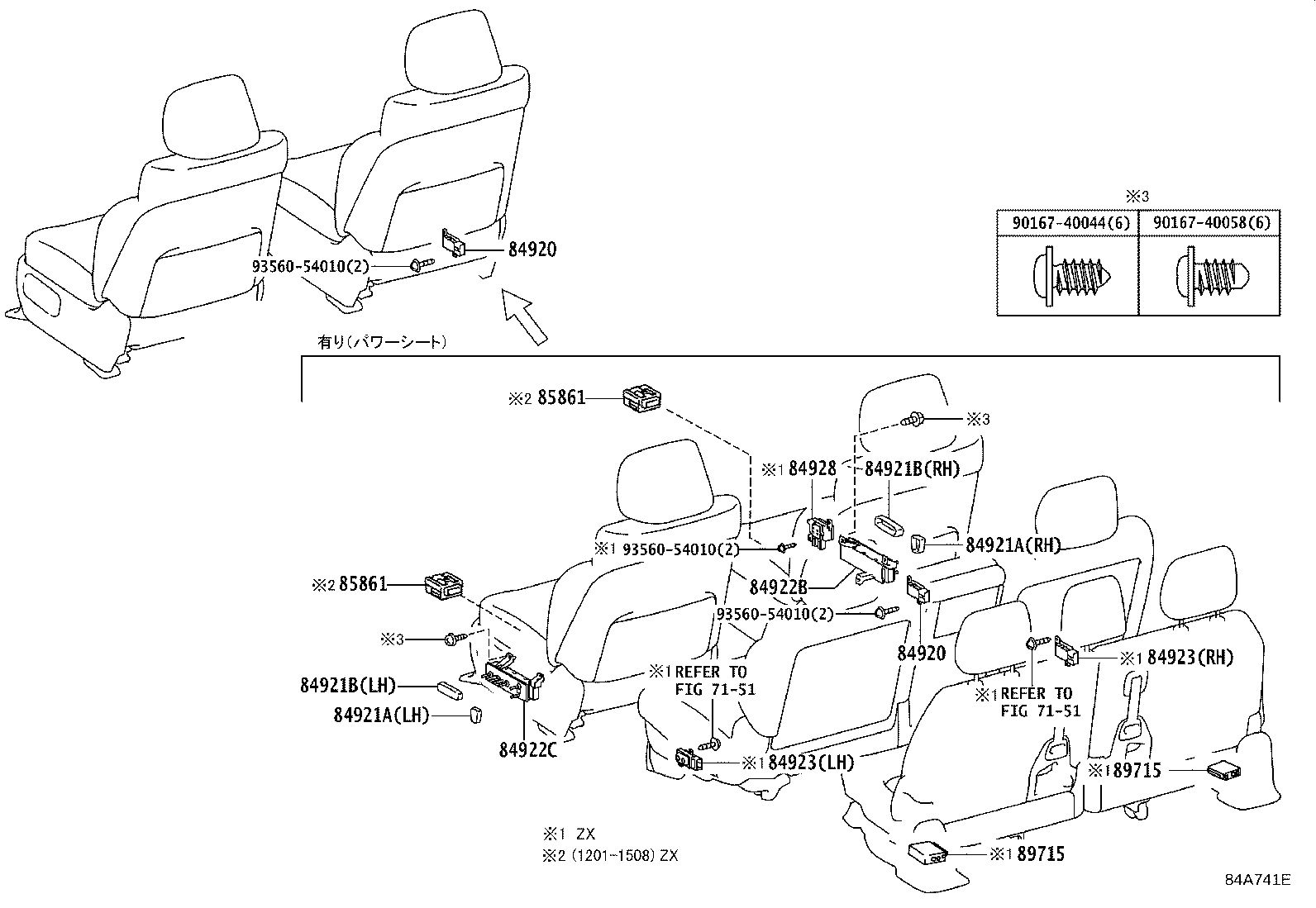

84A741E 2007-09 → —

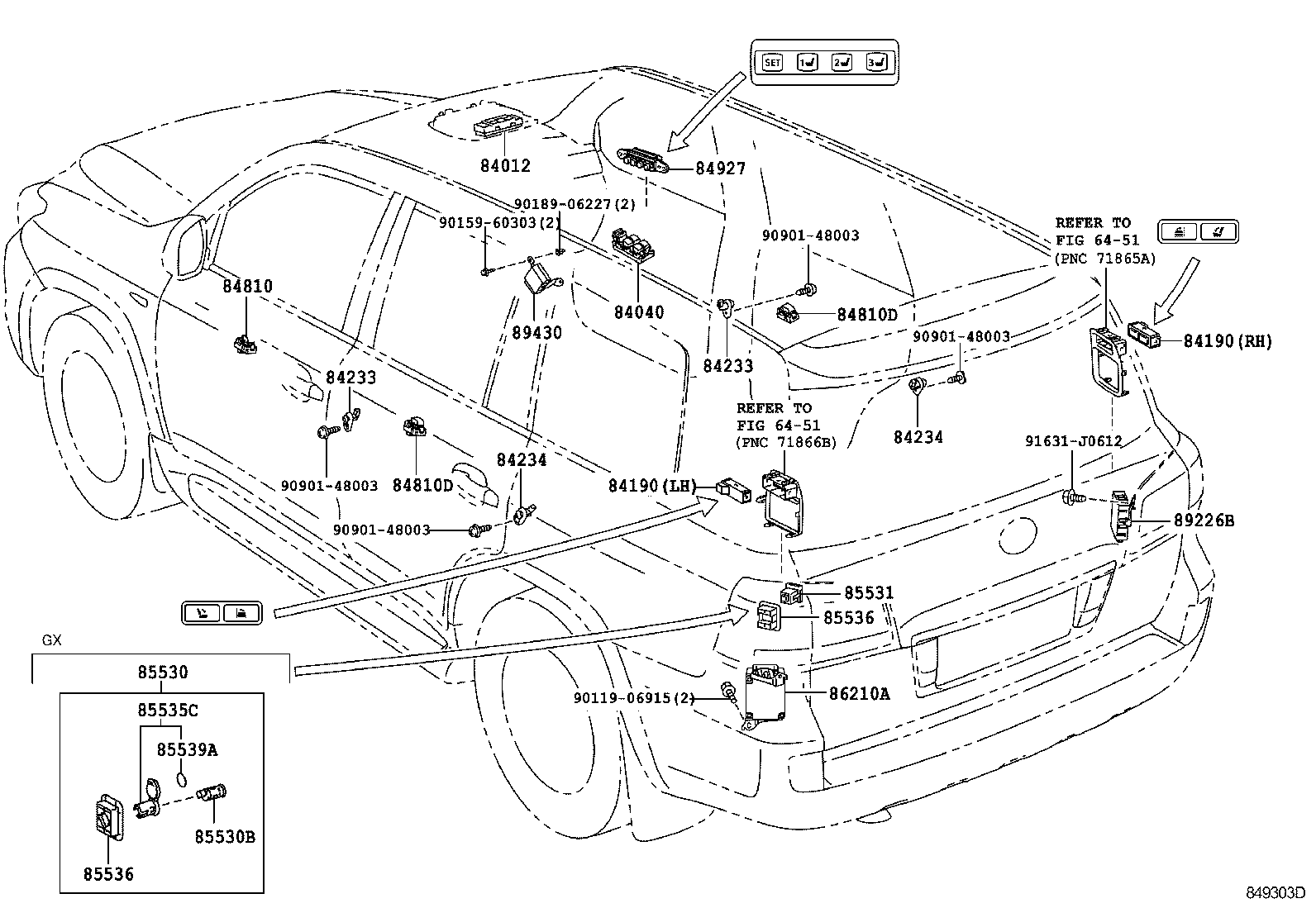

849303D 2007-09 → 2012-01

84D057B 2012-01 → 2015-08

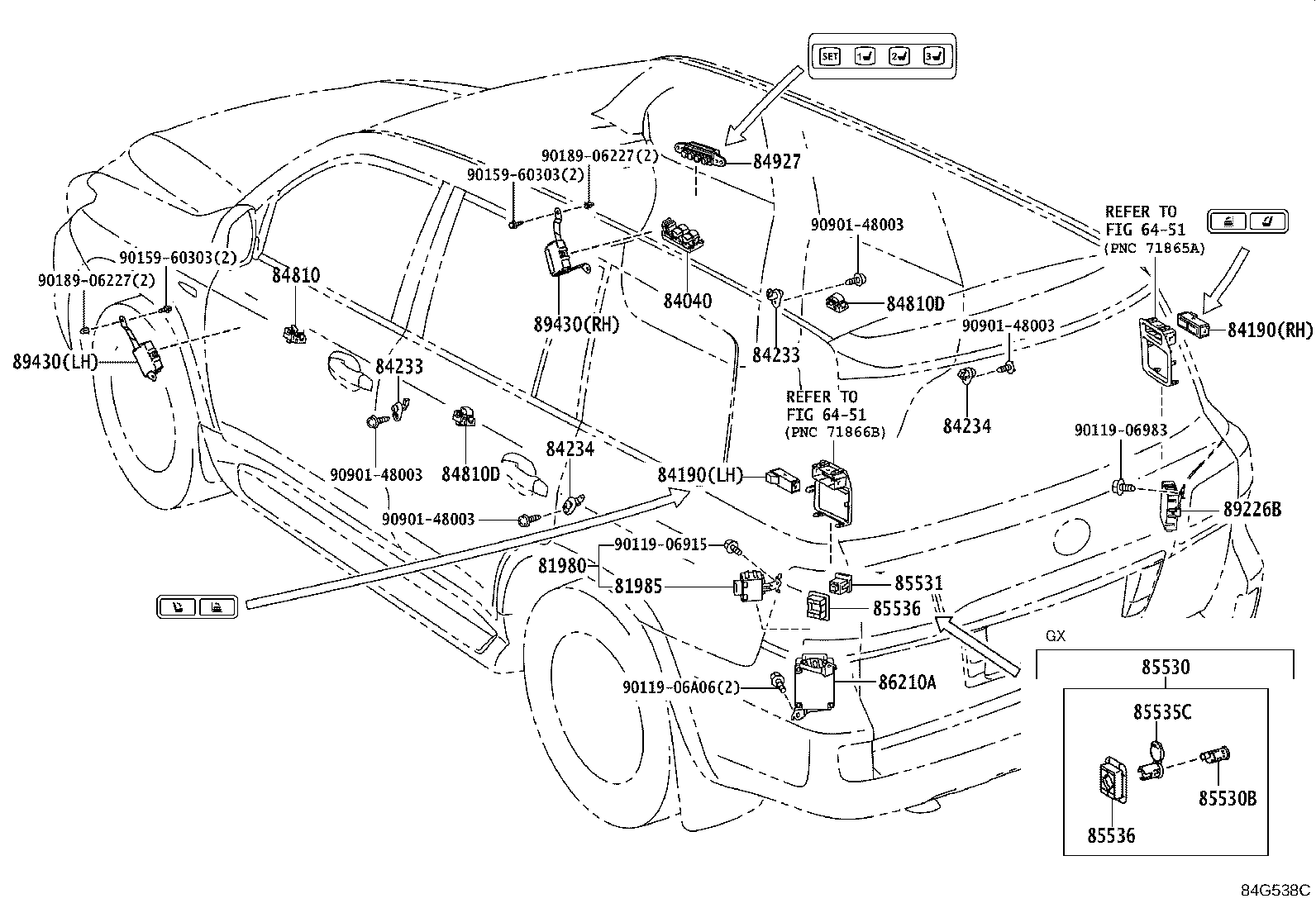

84G538C 2015-08 → —

849300C 2007-09 → 2015-08

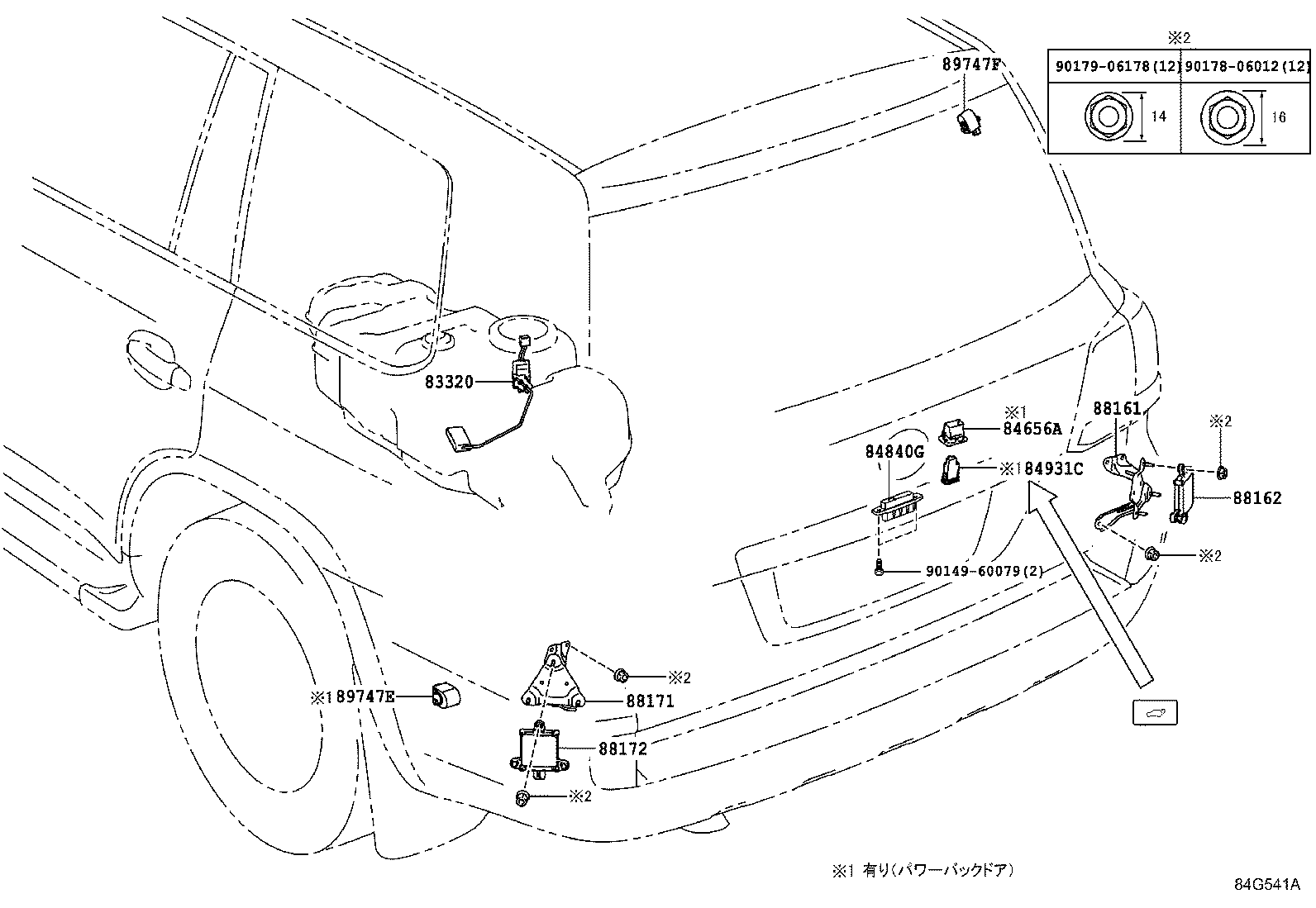

84G541A 2015-08 → —

Part groups

PNC	Description
28300	Relay Assy, Starter
28300D	Relay, Starter Cut
28371	Relay, Ignition, NO.1
81980	Flasher Assy, Turn Signal
81985	Relay, Towing Converter
82210J	Fusible Link
82210N	Instrument Panel Fusible Link
82600E	Engine Room Fuse
82600F	Fuse, Fuse Block
82610A	Block Assy, Fuse
82616	Puller, Fuse
82620A	Block Assy, Fusible Link
82620B	Block Assy, Fusible Link
82620D	Block Assy, Fusible Link
82641	Relay, Integration NO.1
82641C	Relay, Integration NO.2
82660B	Block Assy, Relay
82660C	Block Assy, Relay
82660D	Block Assy, Relay
82660E	Block Assy, Relay
82660F	Block Assy, Relay
82660H	Block Assy, Relay
82660J	Block Assy, Relay
82661	Cover, Relay Block, NO.1
82663	Cover, Relay Block, Lower
82672A	Cover, Junction Block
82673A	Bracket, Junction Block, NO.1
82673B	Bracket, Junction Block, NO.2
82673C	Bracket, Junction Block
82731A	Block, Cowl Side Junction, RH
82733A	Block, Cowl Side Junction, LH
82741	Block, Engine Room Relay
82824L	Pin, Short
83320	Gage Assy, Fuel Sender
83520	Gage Assy,Oil Pressure Sender
83650	Fusee
84010D	Control & Panel Assy, Integration
84012	Control & Panel Sub-assy, Integration
84040	Master Switch Assy,Multiplex Network
84119	Rheostat, Light Control
84140	Switch Assy, Headlamp Dimmer
84150D	Switch Assy, Headlamp Cleaner
84152	Switch, Headlamp Leveling
84153	Switch, Auto High Beam
84190	Switch Assy, Fold Seat
84223A	Switch, Transfer Position
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234	Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B	Switch, Steering Pad, RH
84250A	Switch Assy, Steering Pad
84255	Switch, Steering Heater
84270Q	Relay, Lamp Cut
84306	Cable Sub-assy, Spiral
84307	Cable Sub-assy, Spiral W/Sensor
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84345	Adjuster, Stop Lamp Switch Mounting
84415	Switch, Curtain Airbag Cutoff
84480F	Switch Assy, Main
84485	Switch, Power Outlet(AC100V ACCESSORY SOCKET)
84540	Switch Assy, Neutral Start
84550	Switch Assy, Parking Brake
84650	Switch Assy, Windshield Wiper
84650D	Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A	Bezel, Switch
84725	Switch, Center Differential Lock
84746	Switch, Tire Pressure Warning
84751	Switch, Seat Heater
84752	Switch, Refreshing Seat
84770A	Switch Assy, Pre-collision System Cancel
84794A	Relay, FR Wiper Deicer
84810	Switch Assy, Power Window Regulator
84810D	Switch Assy, Power Window Regulator, Rear
84840G	Switch Assy, Back Door Opener
84870A	Switch Assy, Outer Mirror
84870B	Bulb, Outer Mirror Switch
84870C	Cap, Outer Mirror Switch Bulb
84873A	Switch, Retractable Outer Mirror
84873B	Bulb, Retractable Outer Mirror Switch
84920	Switch Assy, Power Seat
84921A	Knob, Power Seat Switch (FOR RECLINING)
84921B	Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922B	Switch, Front Power Seat, RH
84922C	Switch, Front Power Seat, LH
84923	Switch, Rear Power Seat
84927	Switch, Seat Memory
84928	Switch, Seat Variable Cushion
84931B	Switch, Door Control
84931C	Switch, Back Door Control
84965	Switch, Power Back Door Main
84988L	Switch, Vsc Off
85500	Lighter Assy, Cigarette
85500B	Bulb, Cigarette Lighter
85513	Cover, Cigarette Lighter
85515	Stay, Cigarette Lighter Bezel
85520	Knob And Element Assy, Cigarette Lighter
85530	Socket Assy, Power Outlet, NO.1
85530B	Socket Assy, Power Outlet, Rear NO.1
85530D	Socket Assy, Power Outlet, NO.2
85530E	Socket Assy, Power Outlet, NO.3
85531	Socket, Power Outlet
85535C	Cover, Power Outlet Socket, Rear
85535D	Cover, Power Outlet Socket, Center
85535E	Cover, Power Outlet Socket, NO.2
85536	Bezel, Power Outlet Socket
85539	Label, Power Outlet Notice
85539A	Label, Power Outlet Notice, Rear
85861	Computer, Seat Climate Control
85903	Computer Sub-assy, Shift Lock Control
85910E	Relay, Injector
85910V	Relay, Seat Heater
85912	Relay, Defogger
85912D	Relay
85916D	Relay, Fog Lamp
85916P	Relay, Headlamp
85916U	Relay, Headlamp, NO.2
85916Y	Relay, Towing Tail
85926	Relay, Headlamp Dimmer
85931A	Relay, Brake Lamp
85934	Relay, Magnet-clutch
85940	Relay Assy, Windshield Wiper
85941A	Relay, Rear Windshield Washer
85942	Relay, Headlamp Cleaner Control
85943	Computer, Windshield Wiper
8598A	Battery, Door Control
86210A	Inverter Assy, Voltage
86530	Relay Assy, Horn
86530A	Relay, Horn
87190F	Switch Assy, Temperature Control
87346K	Relay, Ptc Heater
88150A	Computer Assy, Driving Support
88161	Bracket, Blind Spot Monitor, RH
88162	Sensor, Blind Spot Monitor, RH
88171	Bracket, Blind Spot Monitor, LH
88172	Sensor, Blind Spot Monitor, LH
89111	Computer, Network Gateway
89181A	Computer, Steering Control
89221	Computer, Multiplex Network Body
89226B	Computer, Multiplex Network Body, NO.2
89227	Computer, Multiplex Tilt & Telescopic
89235A	Switch, Tilt & Telescopic
89245B	Sensor, Steering
89299F	Switch, Suspension Control
89430	Computer Assy, Outer Mirror Control
89465	Sensor, Oxygen
89465A	Sensor, Oxygen NO.2
89467B	Sensor, Air Fuel Ratio
89491	Sensor, Engine Oil Level
89491A	Gasket, Engine Oil Level Sensor
89533	Computer, 4 Wheel Drive Control
895A0	Relay Assy, Stop Lamp Control
89611	Switch, Push Start
89615	Sensor, Knock Control
89650	Computer Assy, Power Steering
89715	Computer, Fold Seat Control
89747E	Buzzer, Power Back Door Warning
89747F	Buzzer, Blind Spot Monitor
89815	Computer, Seat Belt Control
89940	Computer Assy, Headlamp Swivel
89960	Computer Assy, Headlamp Leveling

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
