Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

10 part groups · 2 illustrations

Illustrations

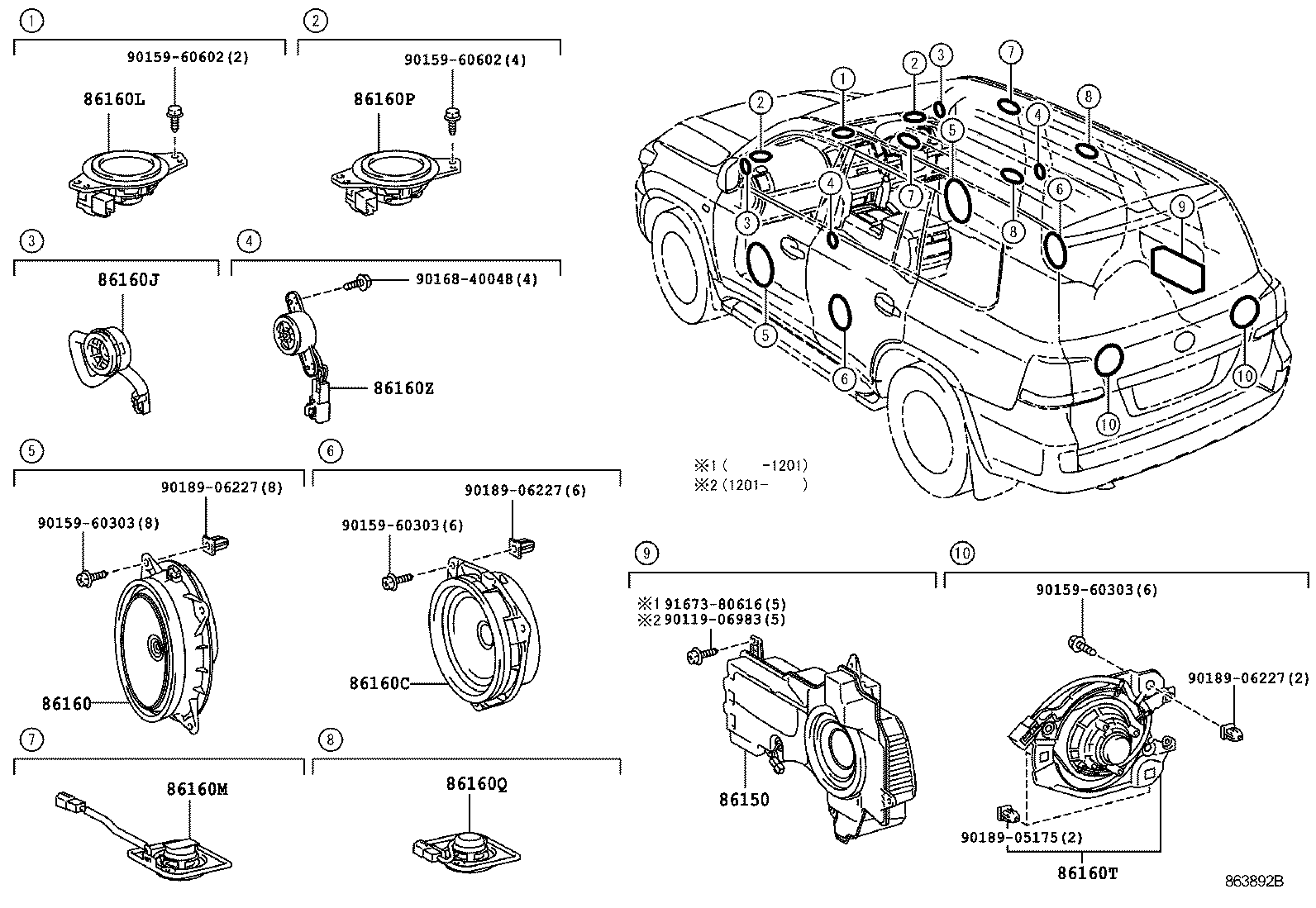

Figure 863321 863321 2007-09 → 2009-05 Figure 863892B 863892B 2009-05 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86160 Speaker Assy, Front NO.1
86160C Speaker Set, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160M Speaker Assy, Roof
86160P Speaker Assy, Front NO.2
86160Q Speaker Assy, Roof
86160T Speaker Assy, Rear Header
86160Z Speaker Assy, Rear NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
