Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan

Supported model Data version 2018-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

20 part groups · 3 illustrations

Illustrations

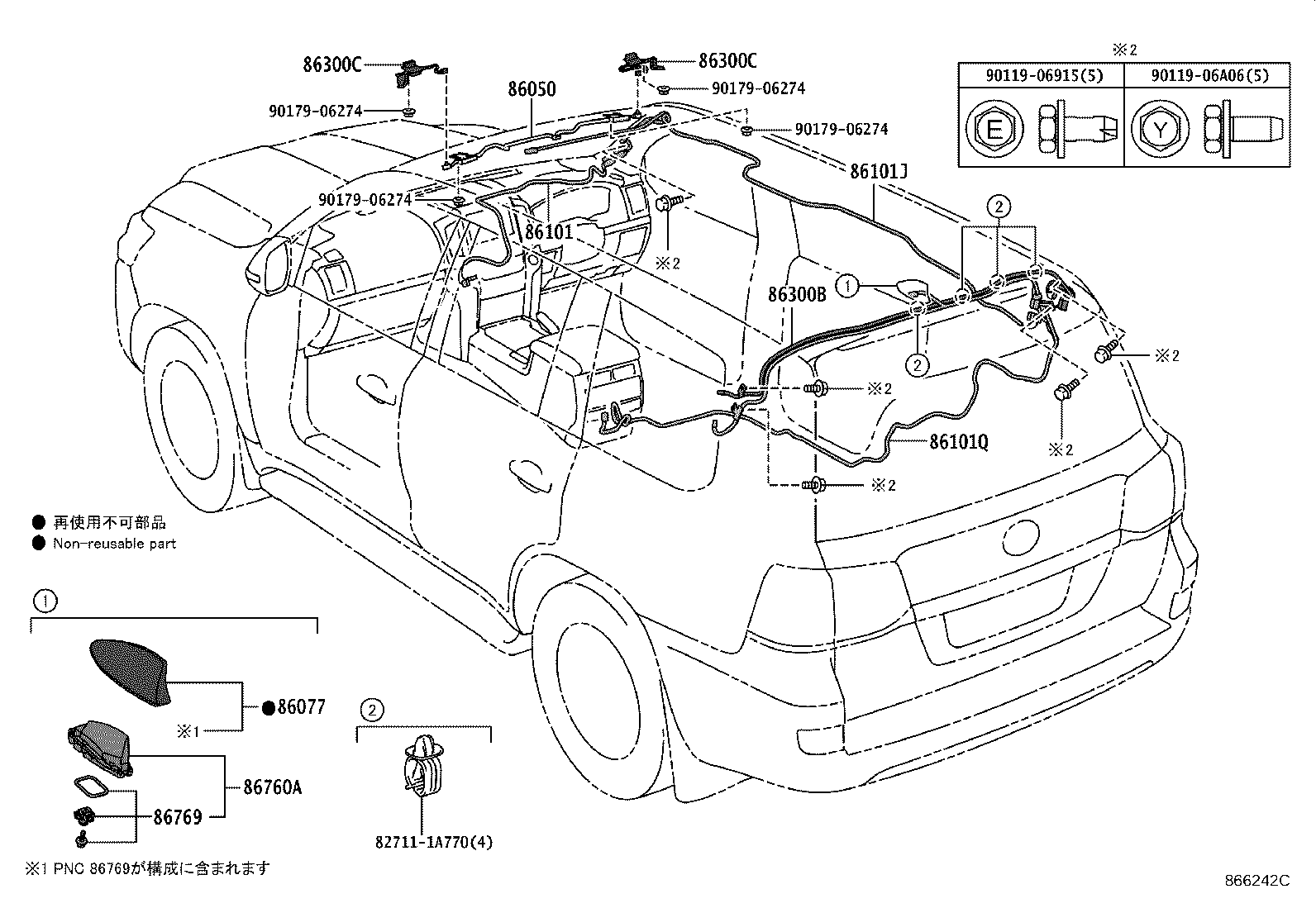

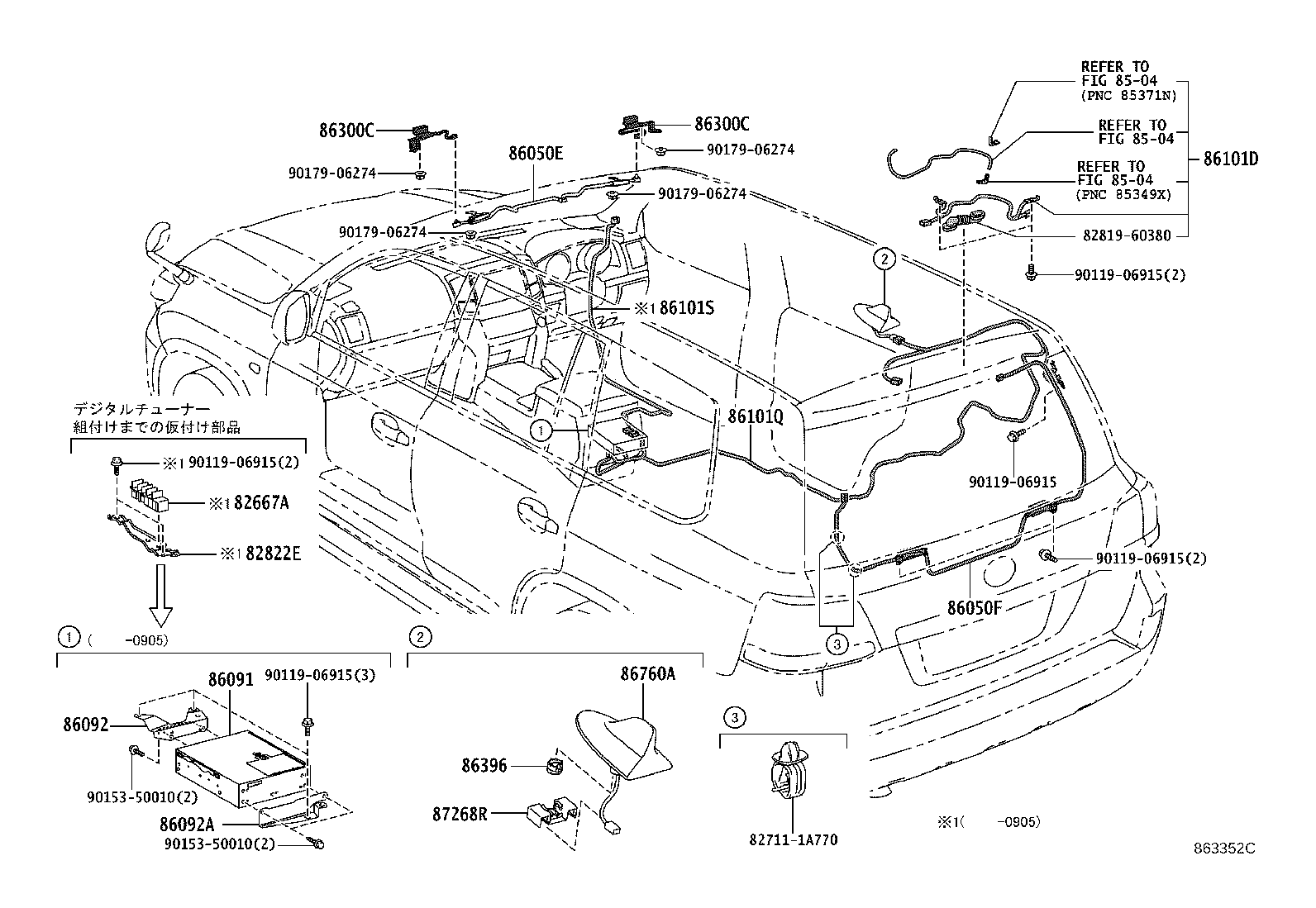

Figure 863351B 863351B 2007-09 → 2015-08 Figure 863352C 863352C 2007-09 → 2015-08 Figure 866242C 866242C 2015-08 → —

Part groups

PNCDescription
82667A Holder, Connector
82822E Bracket,Connector Block
86050 Antenna Assy, Television
86050E Antenna Assy, Television
86050F Antenna Assy, Television
86077 Cover Kit, Antenna
86091 Parts Set, Digital Television
86092 Bracket, Digital Television, Front
86092A Bracket, Digital Television, Rear
86101 Cord Sub-assy, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101S Cord Sub-assy, Antenna
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
86396 Nut, Antenna
86760A Antenna Assy, Telephone
86769 Housing, Roof Antenna
87268R Protector, Telephone Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
