Factory parts data · Europe

Toyota Land Cruiser

2007-09 → present · chassis UZJ200,URJ202 · catalogue 791160 · Japan

Supported model Data version 2018-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

5 part groups · 2 illustrations

Illustrations

Figure 879632B

879632B 2007-09 → 2009-05

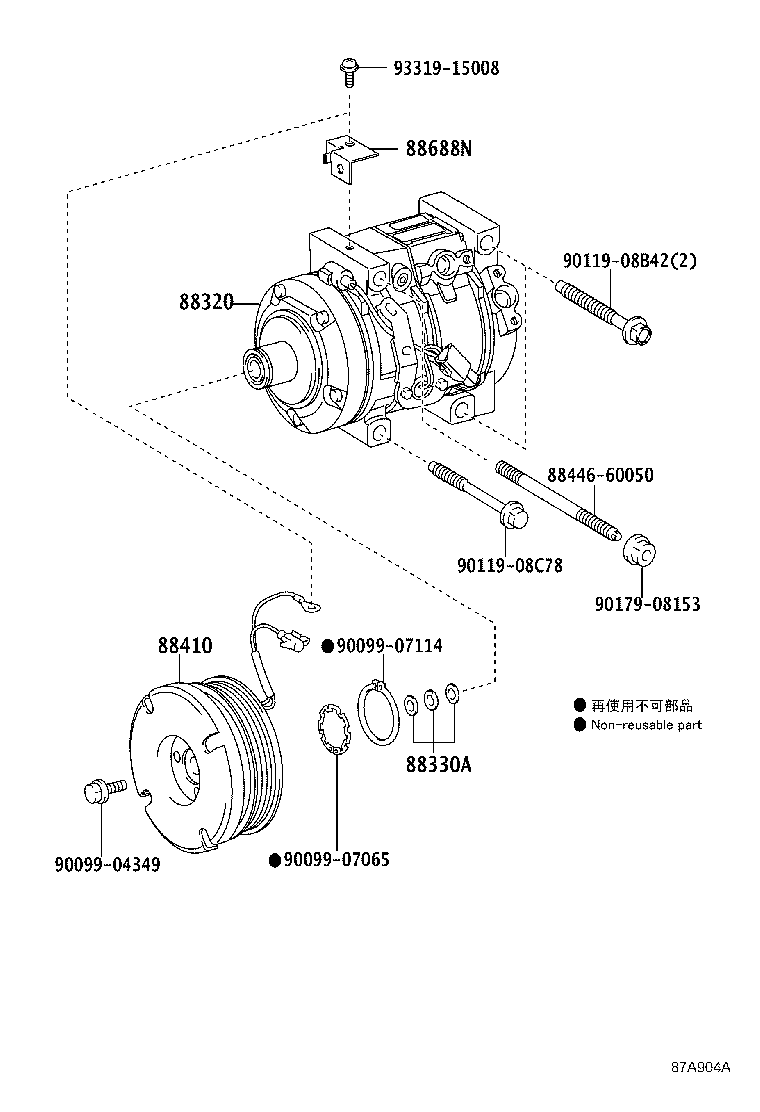

Figure 87A904A

87A904A 2009-05 → —

Part groups

PNC	Description
88320	Compressor Assy, Cooler
88330A	Washer (FOR MAGNET CLUTCH)
88410	Clutch Assy, Magnet
88433A	Stay, Compressor
88688N	Bracket, Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
