Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

6 part groups · 2 illustrations

Illustrations

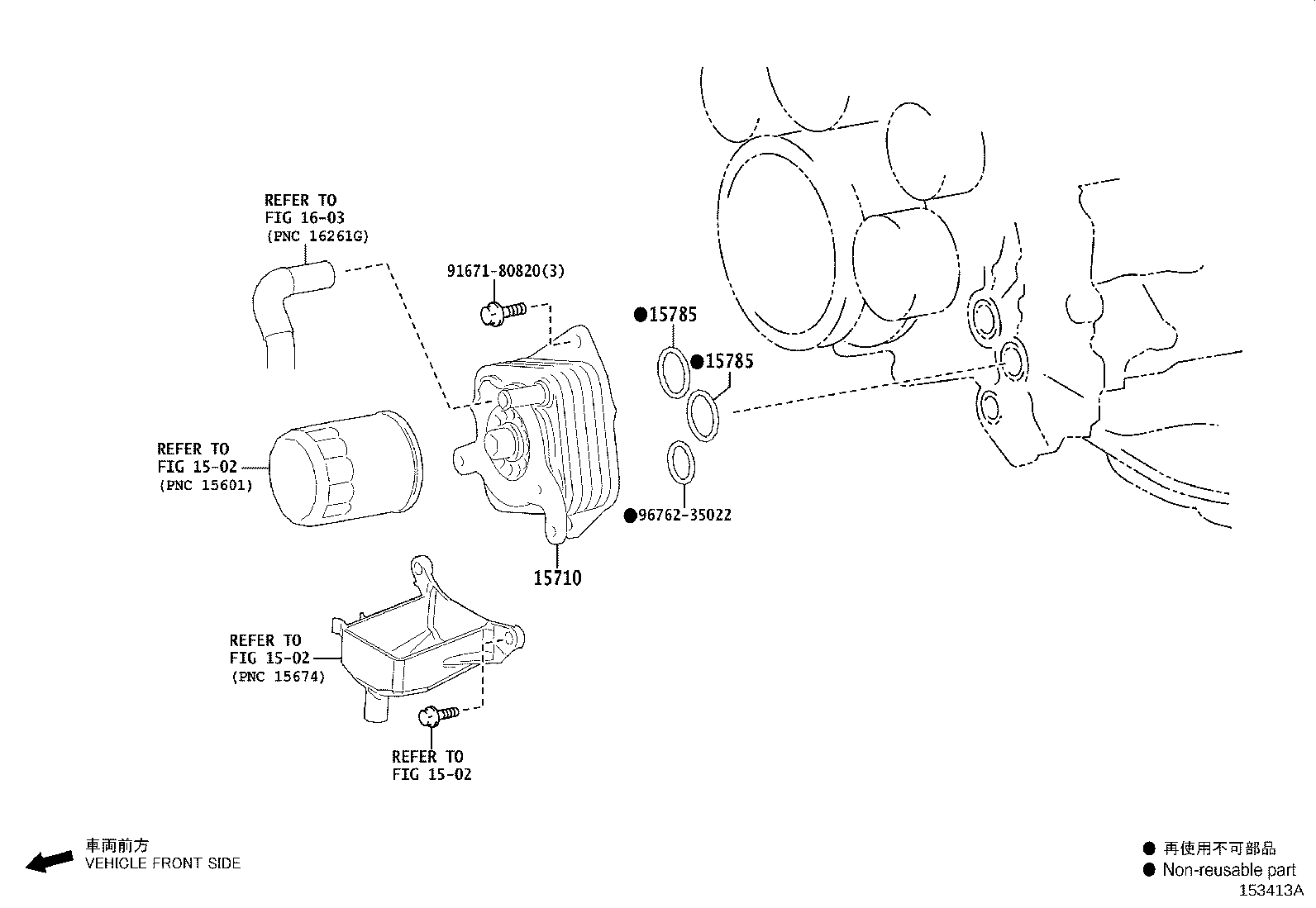

Figure 153411D 153411D 2021-07 → — Figure 153413A 153413A 2021-07 → —

Part groups

PNCDescription
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15723 Ring, O
15781 Bracket, Oil Cooler, NO.1
15781B Ring,O(FOR OIL COOLER BRACKET NO.1)
15785 Gasket, Oil Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
