Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

6 part groups · 2 illustrations

Illustrations

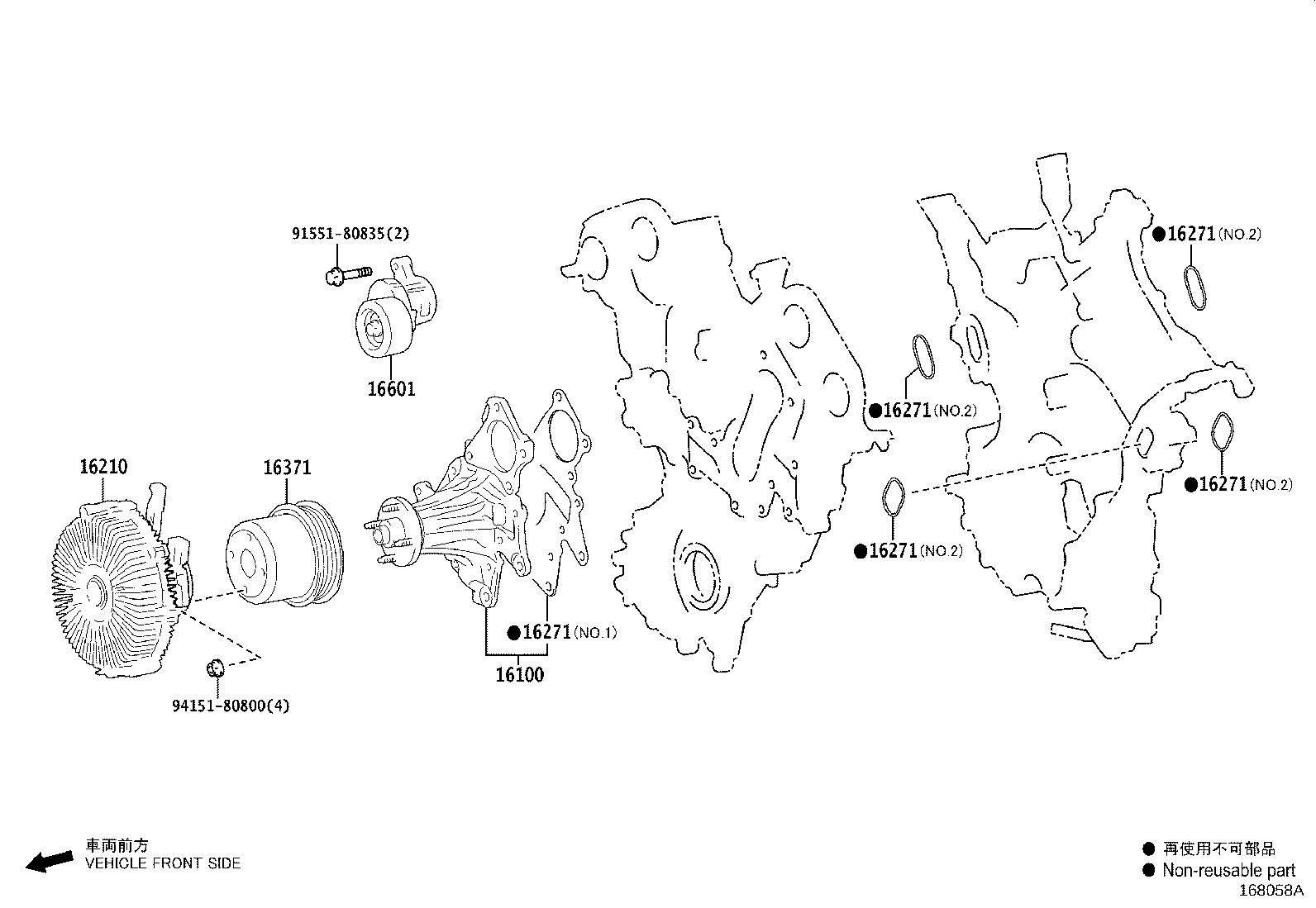

Figure 168041E 168041E 2021-07 → — Figure 168058A 168058A 2021-07 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16210 Coupling Assy, Fluid
16271 Gasket, Water Pump
16307A Bracket Sub-assy, Fan
16371 Pulley, Fan
16601 Tensioner Sub-assy, V-ribbed Belt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
