Toyota Land Cruiser
2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan
Supported model
Data version 2021-08

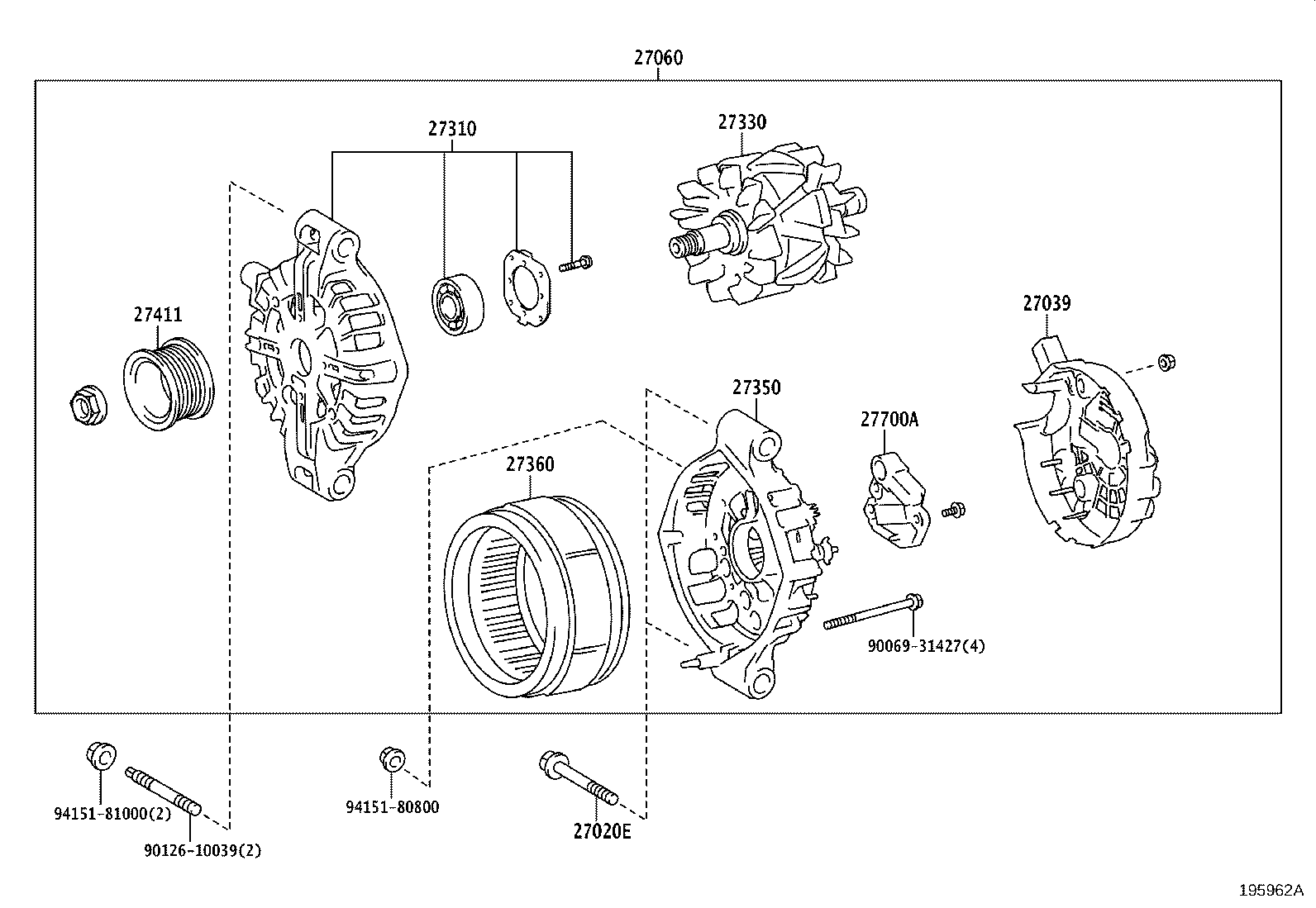

Alternator
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020E | Bolt(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27060 | Alternator Assy, W/Regulator |
| 27310 | Frame Assy, Drive End, Alternator |
| 27330 | Rotor Assy, Alternator |
| 27350 | Frame Assy, Rectifier End |
| 27360 | Coil Assy, Alternator |
| 27411 | Pulley, Alternator |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
