Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

5 part groups · 3 illustrations

Illustrations

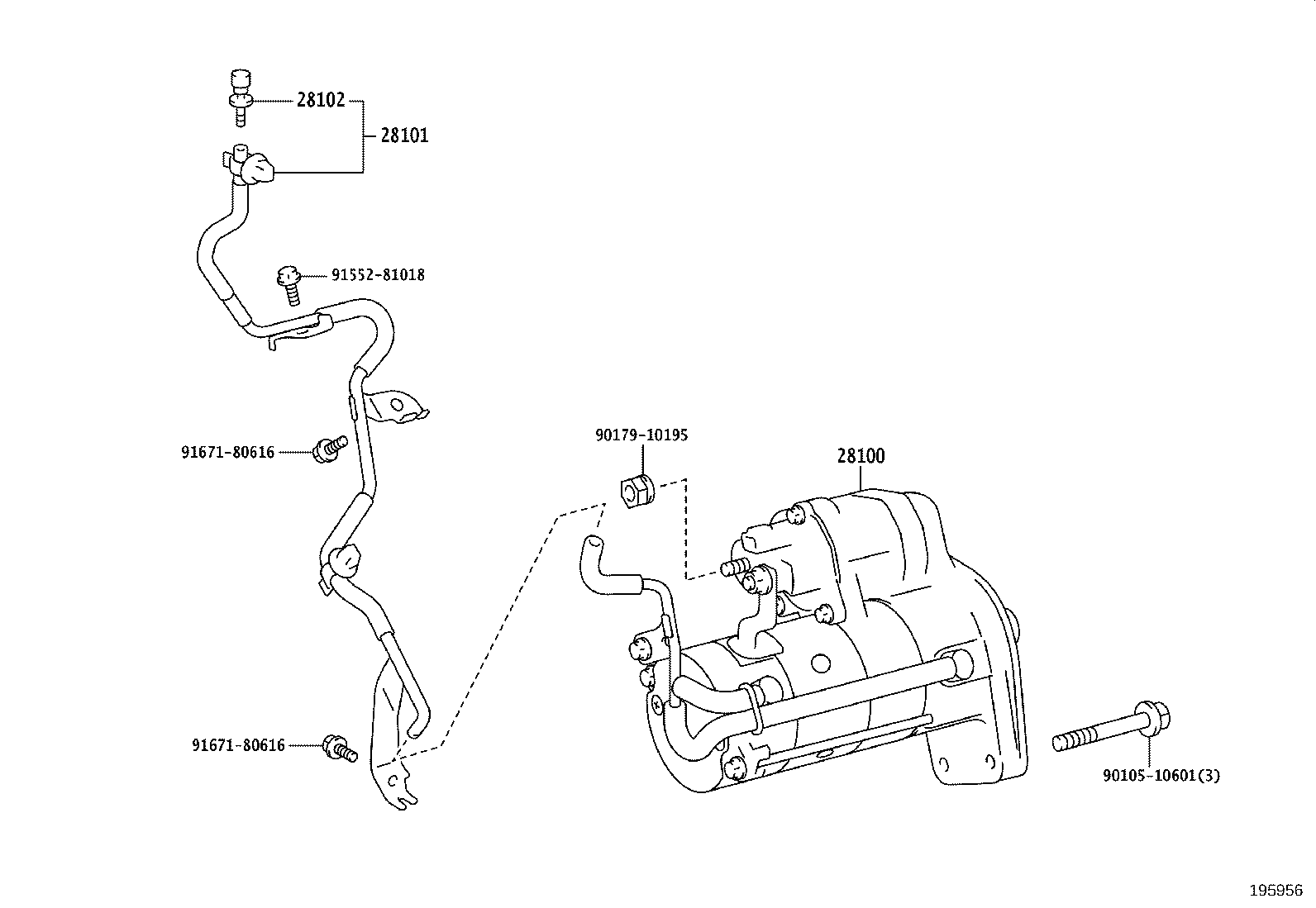

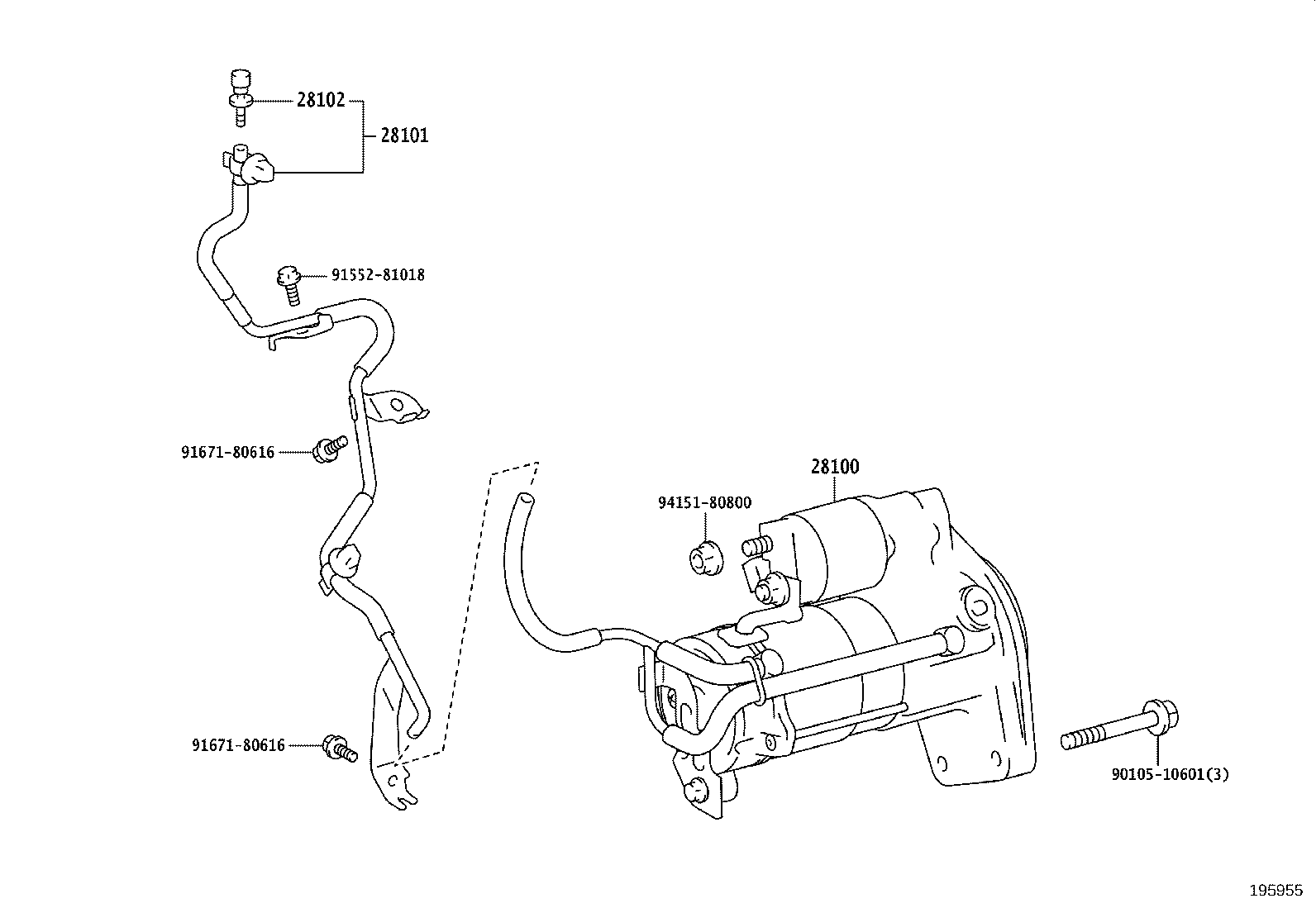

Figure 195954 195954 2021-07 → — Figure 195955 195955 2021-07 → — Figure 195956 195956 2021-07 → —

Part groups

PNCDescription
28100 Starter Assy
28101 Bracket Sub-assy, Starter Hose
28102 Breather Sub-assy, Starter
28181 Terminal, Starter
28192 Cover, Starter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
