Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

11 part groups · 3 illustrations

Illustrations

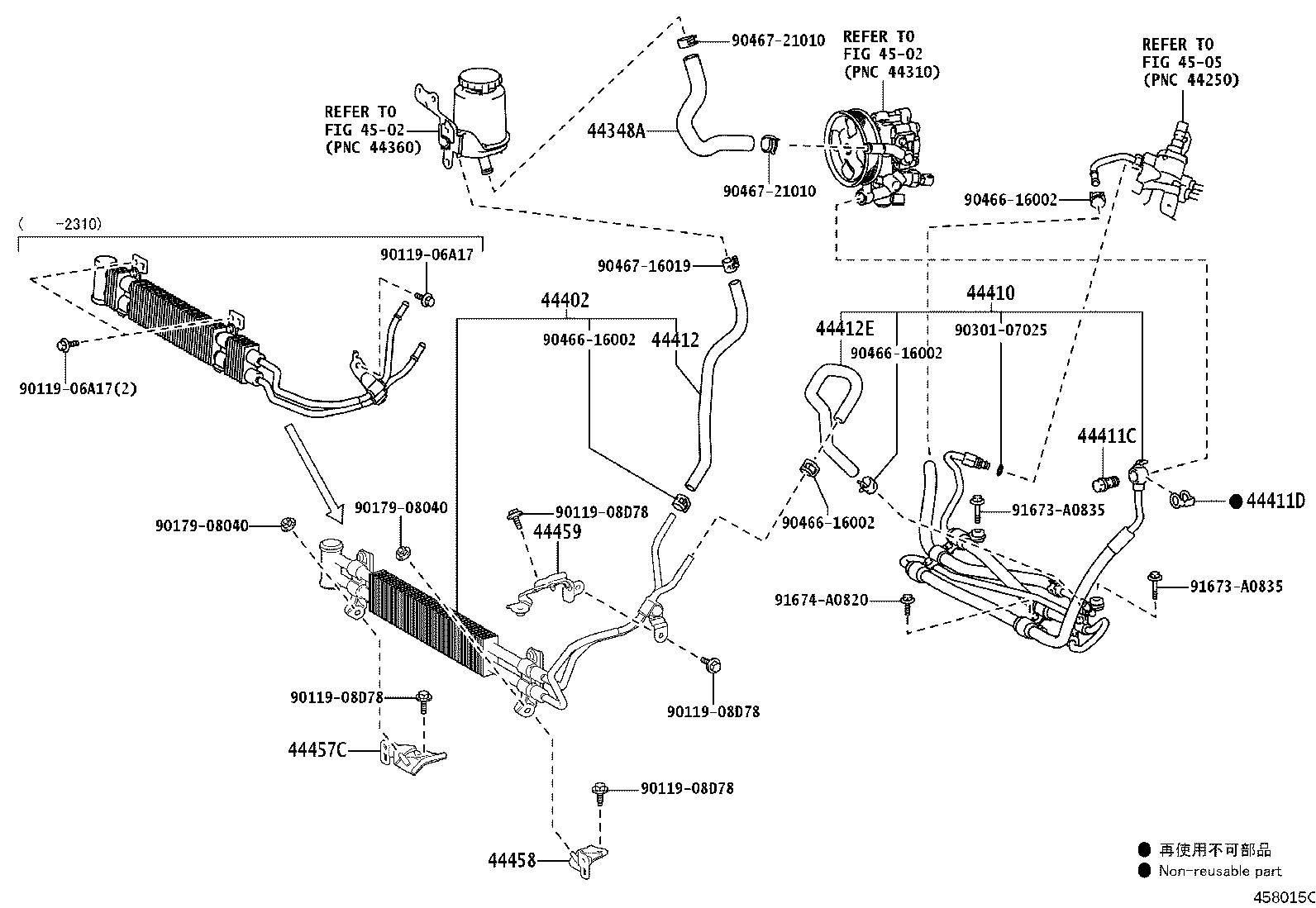

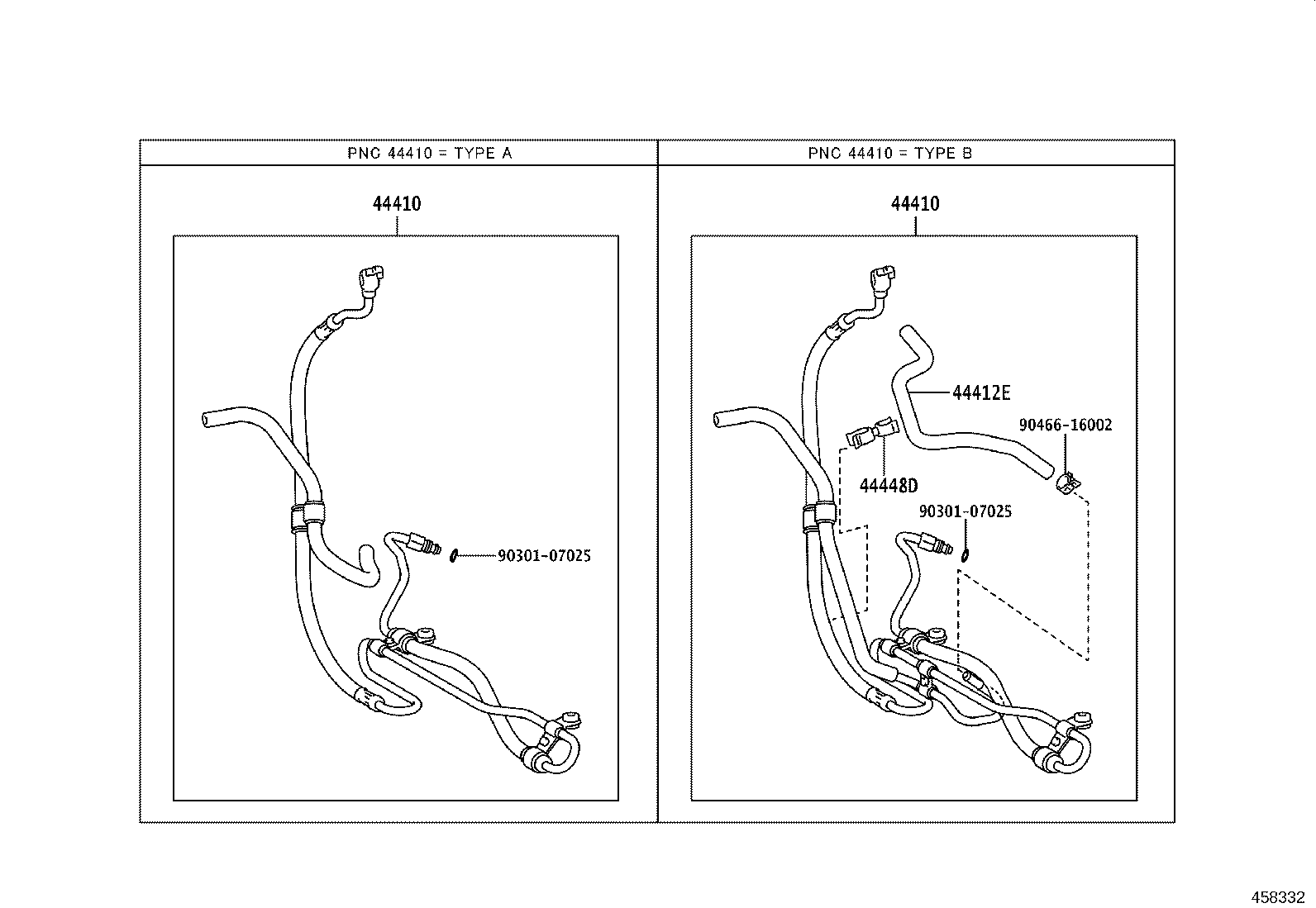

Figure 458012D 458012D 2021-07 → — Figure 458332 458332 2021-07 → — Figure 458015C 458015C 2021-07 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412E Hose, Return, NO.2
44448D Clamp, Pressure Feed, NO.1
44457C Bracket, Power Steering Tube Support, NO.1
44458 Bracket, Tube Support, NO.2
44459 Bracket, Tube Support, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
