Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

33 part groups · 2 illustrations

Illustrations

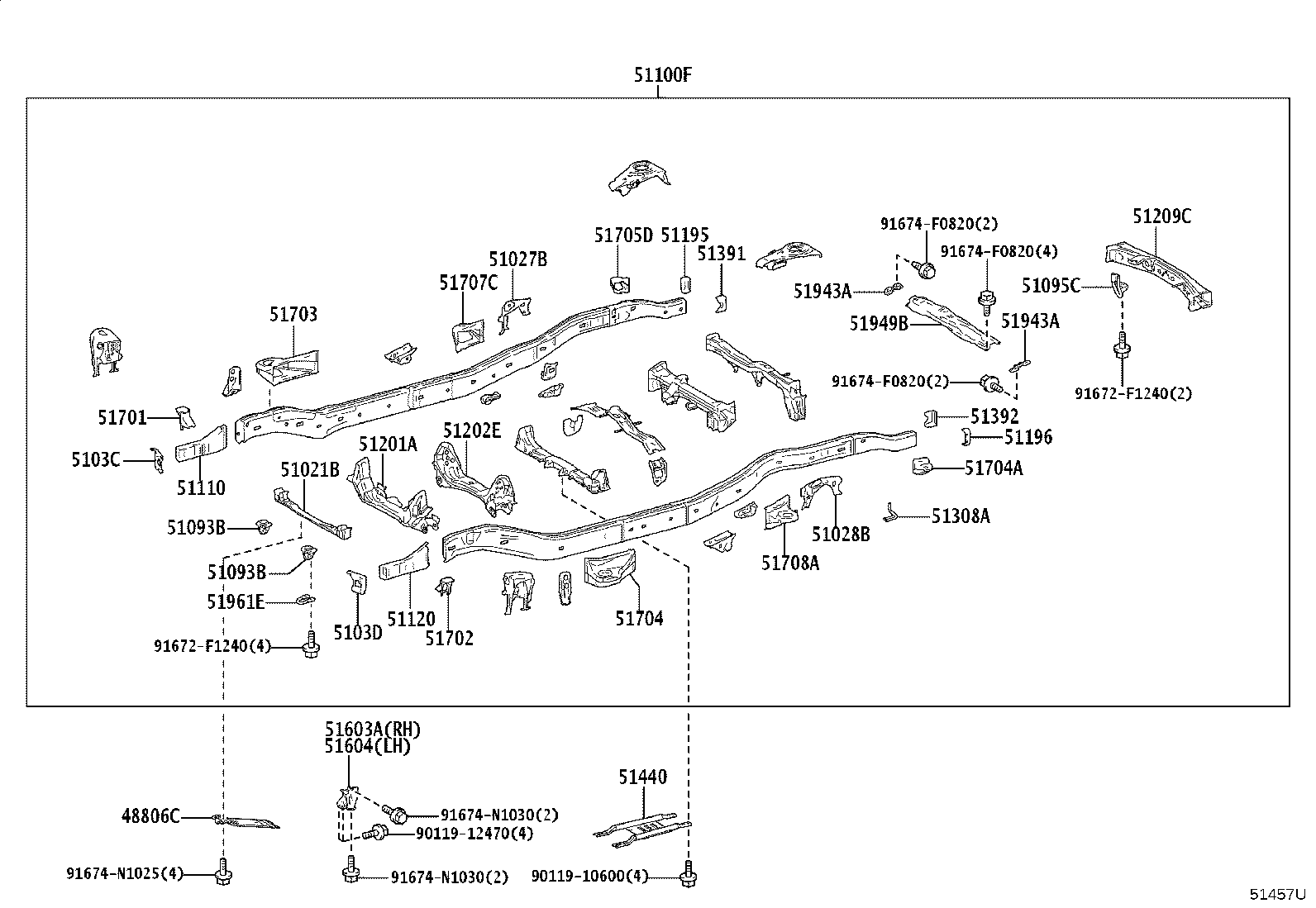

Figure 513972B 513972B 2021-07 → 2024-11 Figure 51457U 51457U 2024-11 → —

Part groups

PNCDescription
48806C Brace Sub-assy, Front Stabilizar, Center
51021B Crossmember Sub-assy, Frame Auxiliary
51027B Bracket Sub-assy, Rear Shock Absorber Mount, RH
51028B Bracket Sub-assy, Rear Shock Absorber Mount, LH
5103C Plate Sub-assy, Side Rail Extension, RH
5103D Plate Sub-assy, Side Rail Extension, LH
51093B Hook Sub-assy, Transport, Front
51095C Hook Sub-assy, Transport, Rear
51100F Frame Sub-assy
51110 Extension Assy, Side Rail, RH
51120 Extension Assy, Side Rail, LH
51195 Patch, Rear Frame Rail, RH
51196 Patch, Rear Frame Rail, LH
51201A Crossmember Sub-assy, Frame, Front
51202E Crossmember Sub-assy, Frame, NO.2
51209C Crossmember Sub-assy, Frame, Rear
51308A Bracket Sub-assy, Exhaust Pipe Clamp
51391 Gusset, Frame Rear Crossmember, RH
51392 Gusset, Frame Rear Crossmember, LH
51440 Protector Assy, Oil Pan
51603A Bracket Sub-assy, Front Bound Stopper, RH
51604 Bracket Sub-assy, Front Bound Stopper, LH
51701 Bracket Sub-assy, Cab Mounting, NO.1 RH
51702 Bracket Sub-assy, Cab Mounting, NO.1 LH
51703 Bracket Sub-assy, Cab Mounting, NO.2, RH
51704 Bracket Sub-assy, Cab Mounting, NO.2 LH
51704A Bracket Sub-assy, Cab Rear Mounting, LH
51705D Bracket Sub-assy, Cab Rear Mounting, RH
51707C Bracket Sub-assy, Cab Mounting, NO.4 RH
51708A Bracket Sub-assy, Cab Mounting, NO.4 LH
51943A Bracket, Spare Wheel Carrier
51949B Crossmember, Spare Wheel Carrier
51961E Hook, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
