Toyota Land Cruiser

2021-07 → present · chassis FJA300,VJA300 · catalogue 791170 · Japan

Supported model Data version 2021-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

11 part groups · 2 illustrations

Illustrations

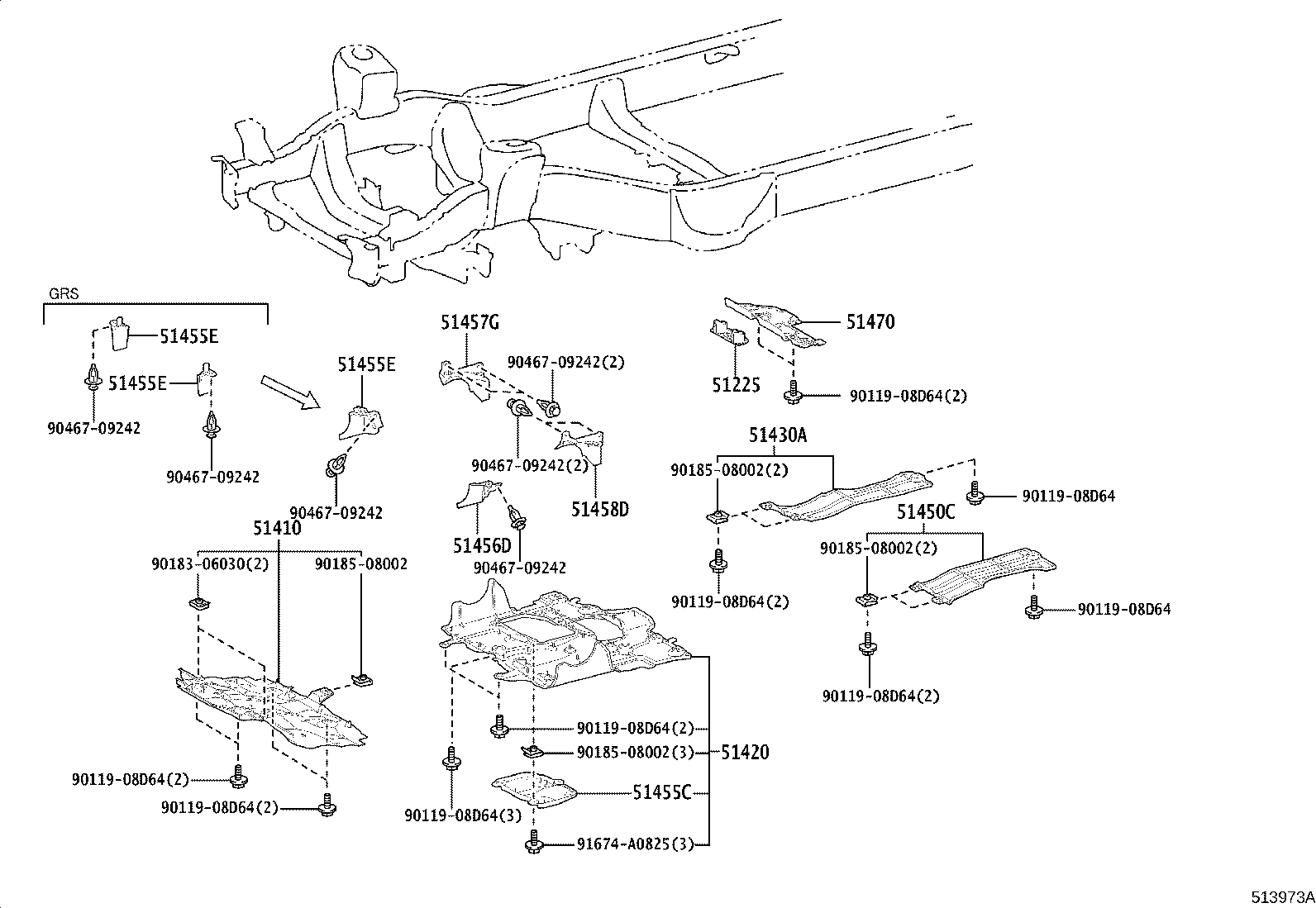

Figure 513952A 513952A 2021-07 → — Figure 513973A 513973A 2021-07 → —

Part groups

PNCDescription
51225 Cover, Engine Mounting Hole, NO.3
51410 Cover Assy, Engine Under, NO.1
51420 Cover Assy, Engine Under, NO.2
51430A Cover Assy, Frame Under, RH
51450C Cover Assy, Frame Under, LH
51455C Seal, Engine Under Cover, NO.2
51455E Seal, Frame Under, NO.1 RH
51456D Seal, Frame Under, NO.1 LH
51457G Seal, Frame Under, NO.2 RH
51458D Seal, Frame Under, NO.2 LH
51470 Cover Assy, Transmission Under
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
